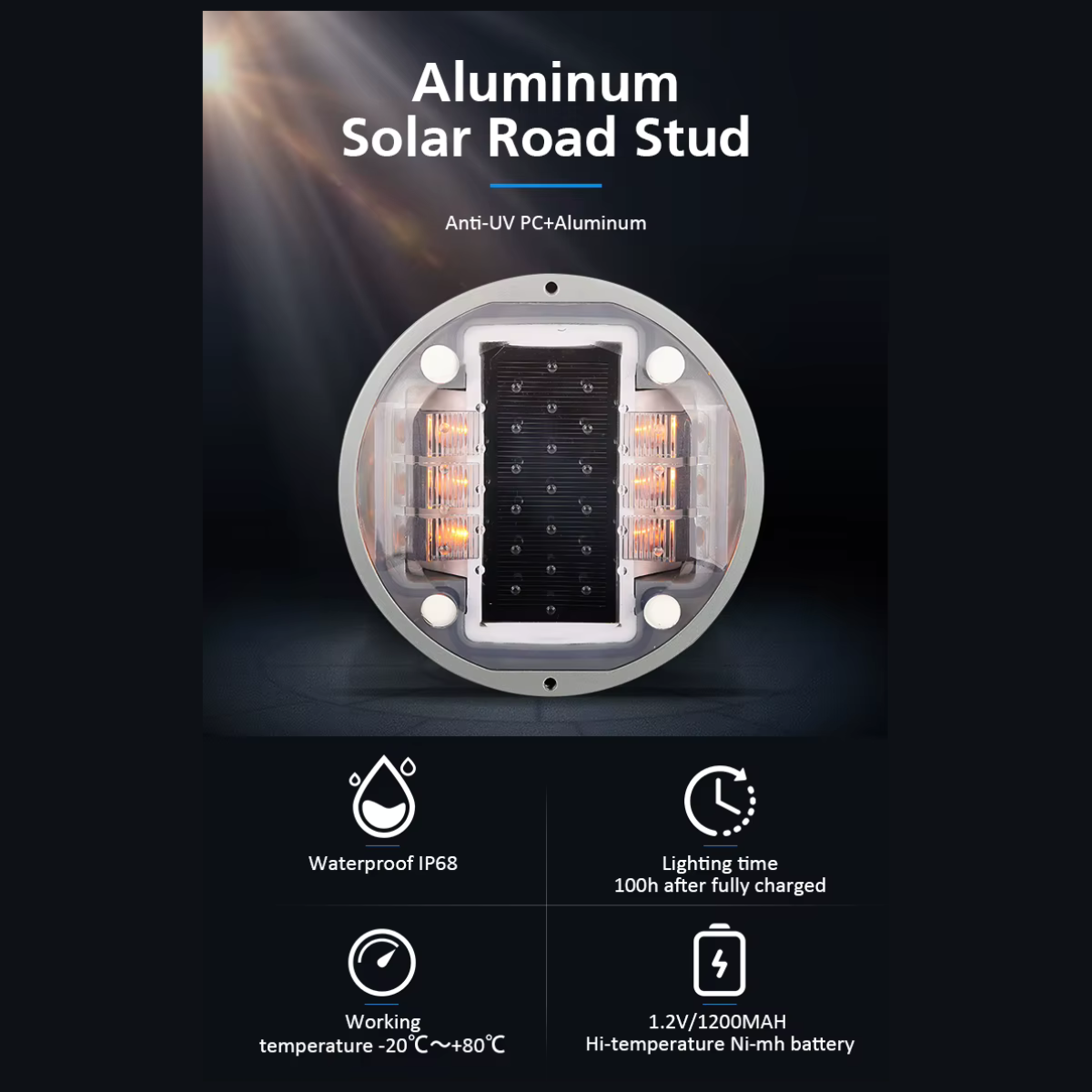

Reflective IP68 Recessed Solar Road Stud Light (Multicolor LEDs)
Model: CS-SR-815 (CadSolar) – Solar underground light / self-powered LED road stud
Secure and mark your traffic lanes with an ultra-durable recessed solar stud, designed for road signage and high-traffic areas.

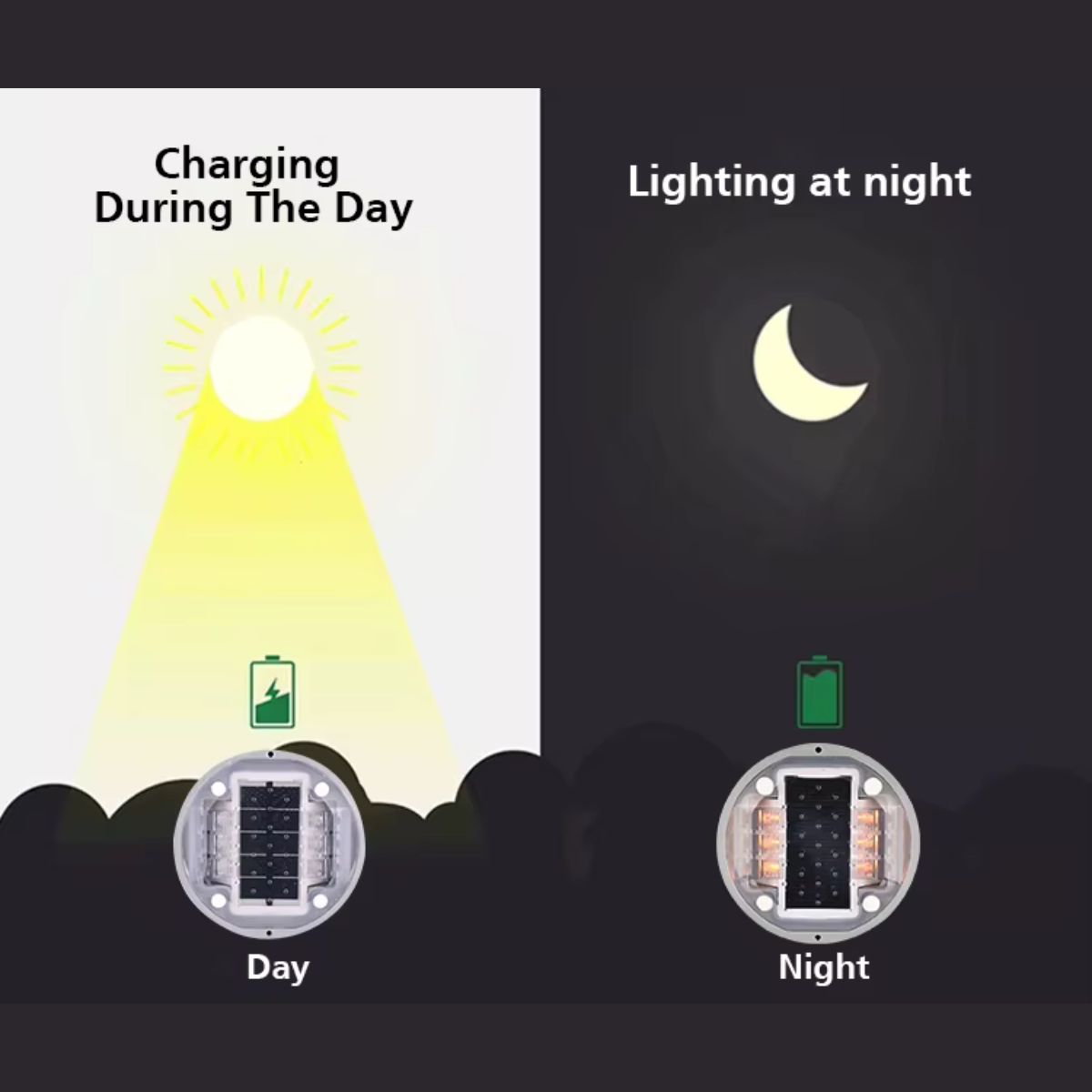

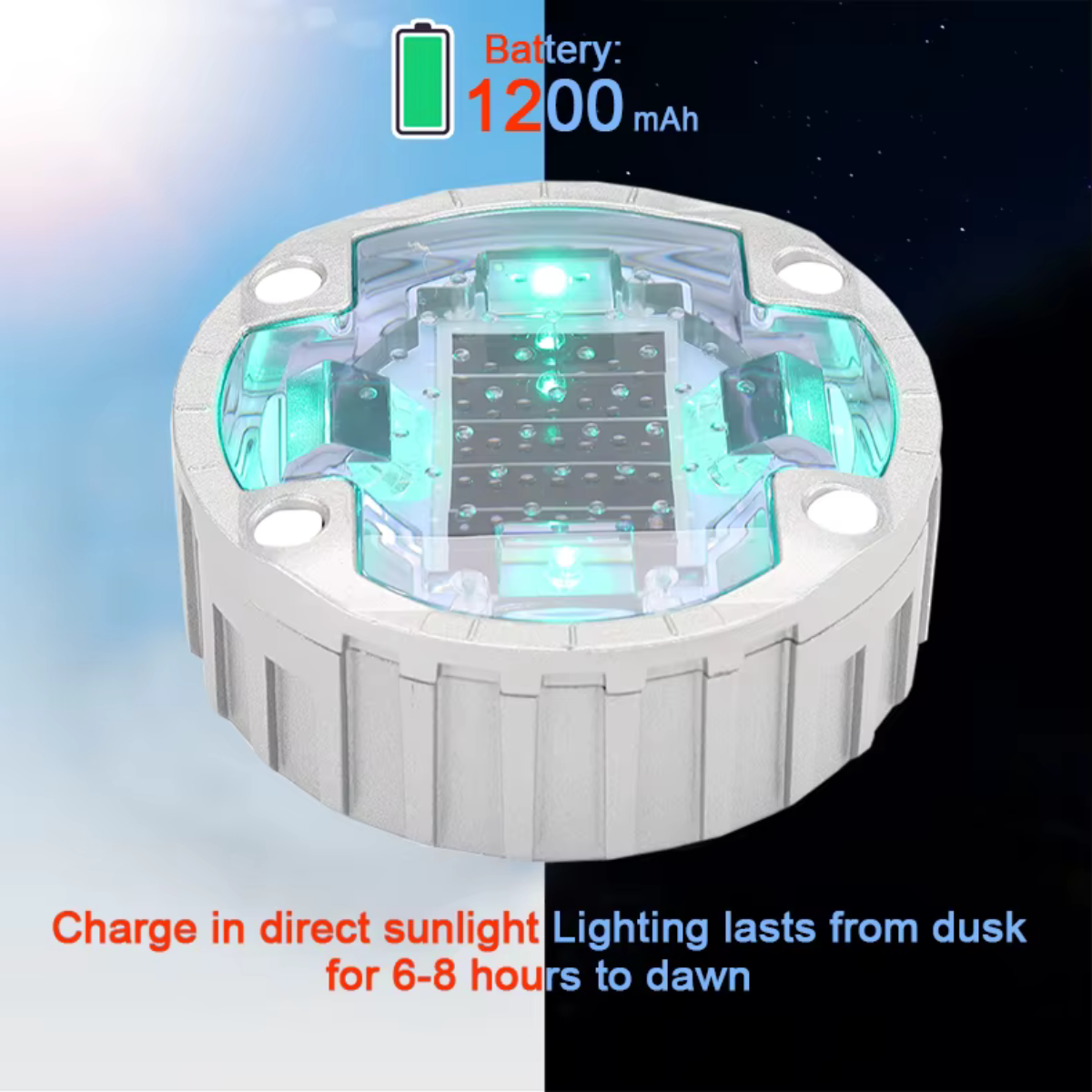

Thanks to its automatic solar charging, it turns on at dusk (steady or flashing mode) and remains highly visible from long distances to improve safety.
Key benefits
Self-powered and automatic: solar charging, automatic night activation

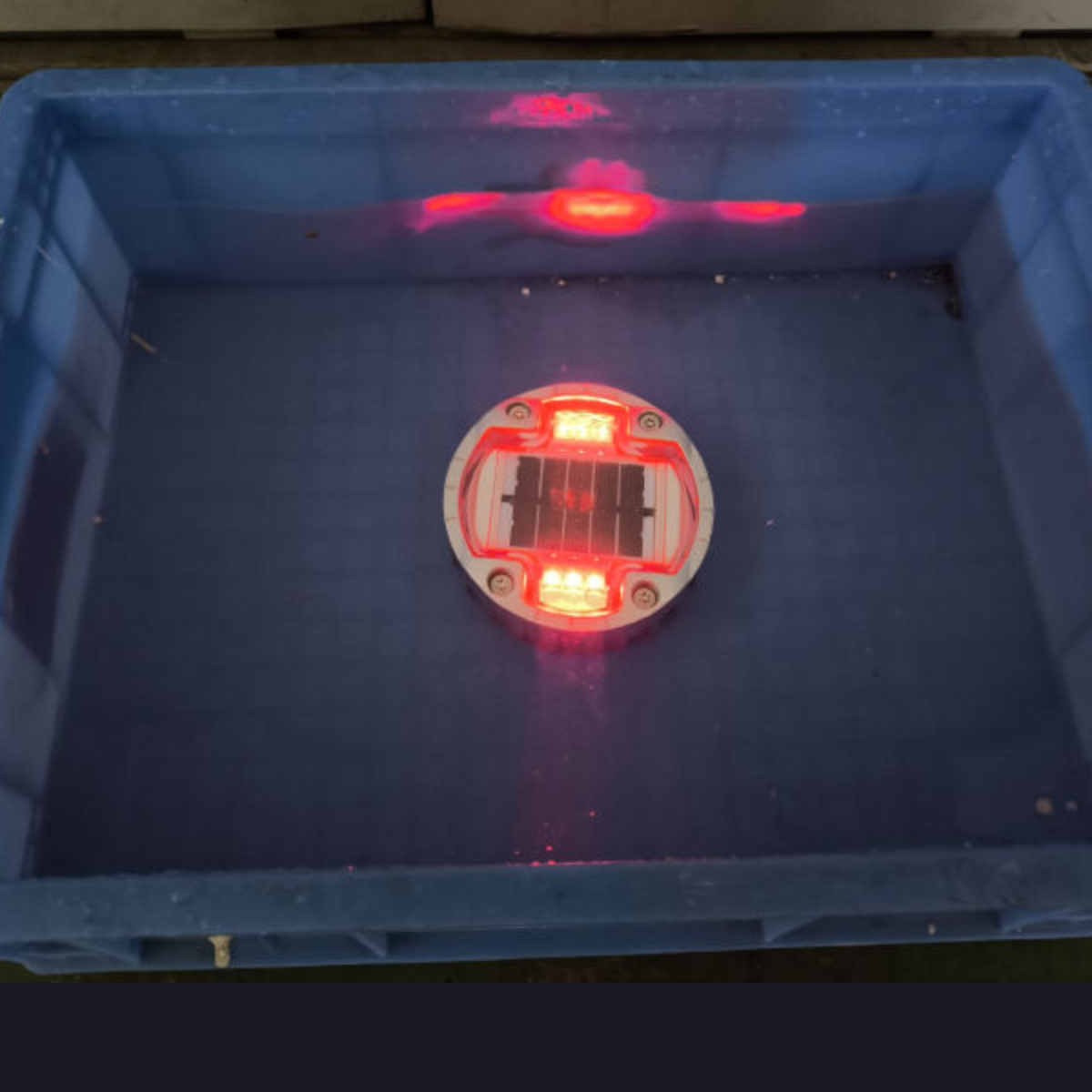

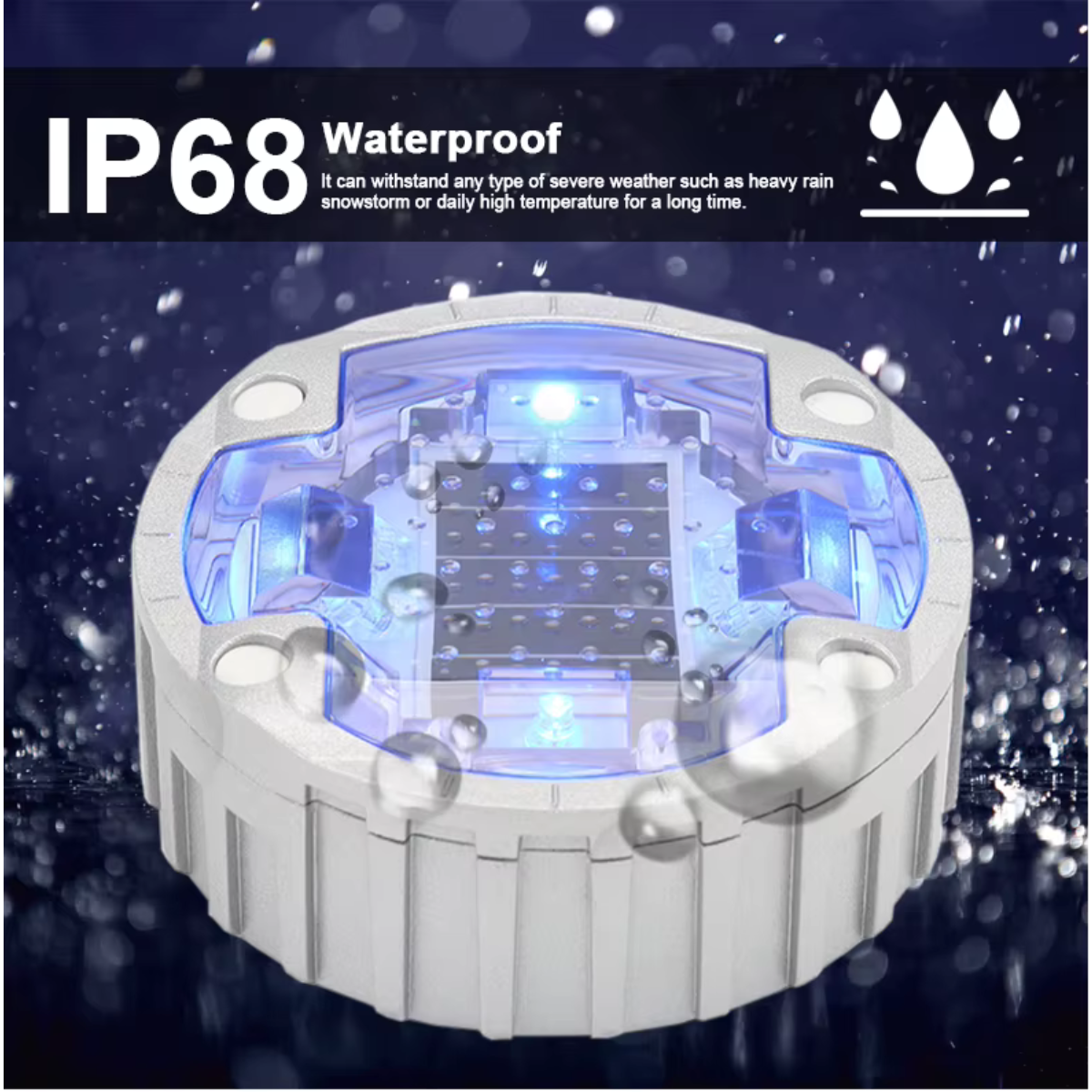

IP68 waterproof: built for rain, puddles, dust, and harsh environments

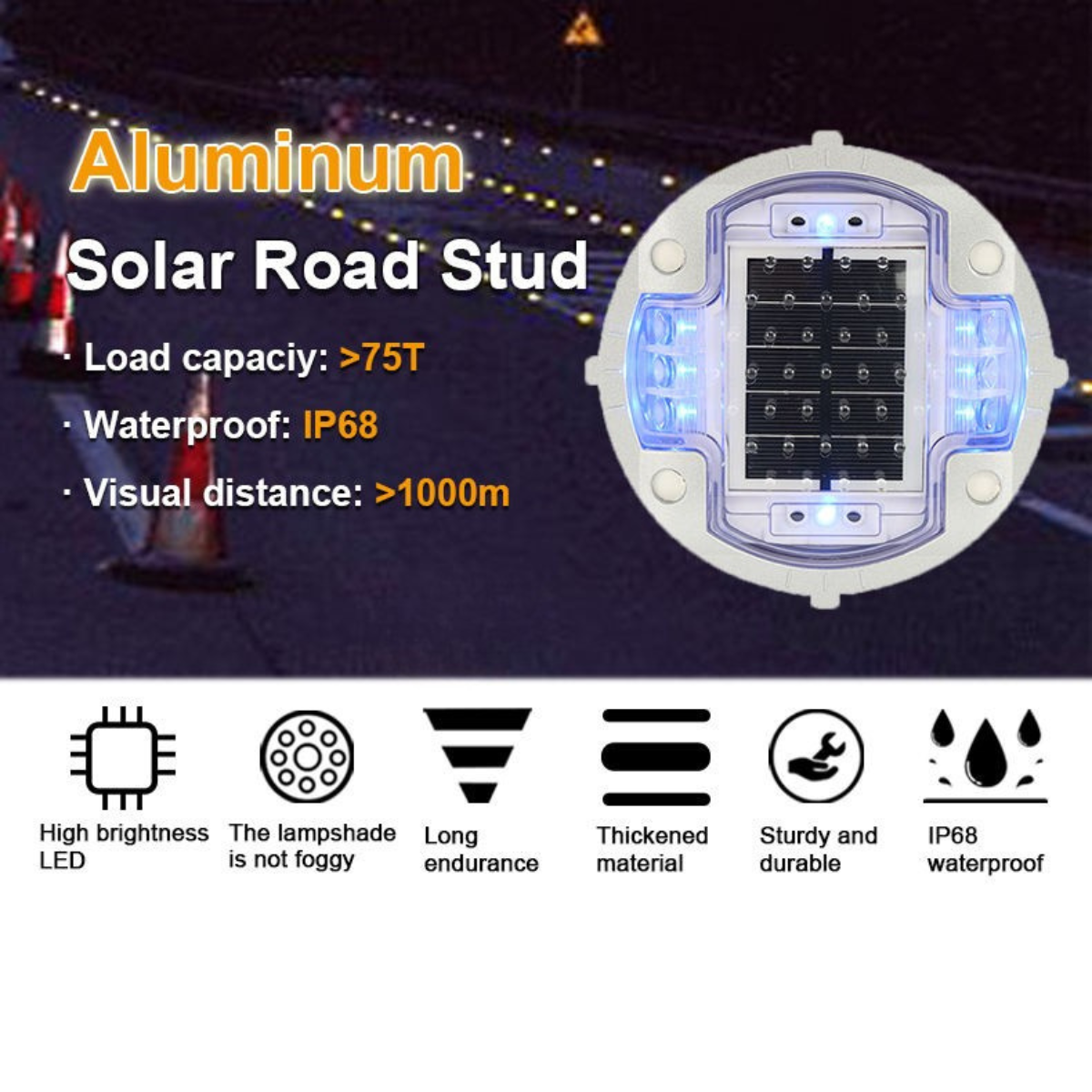

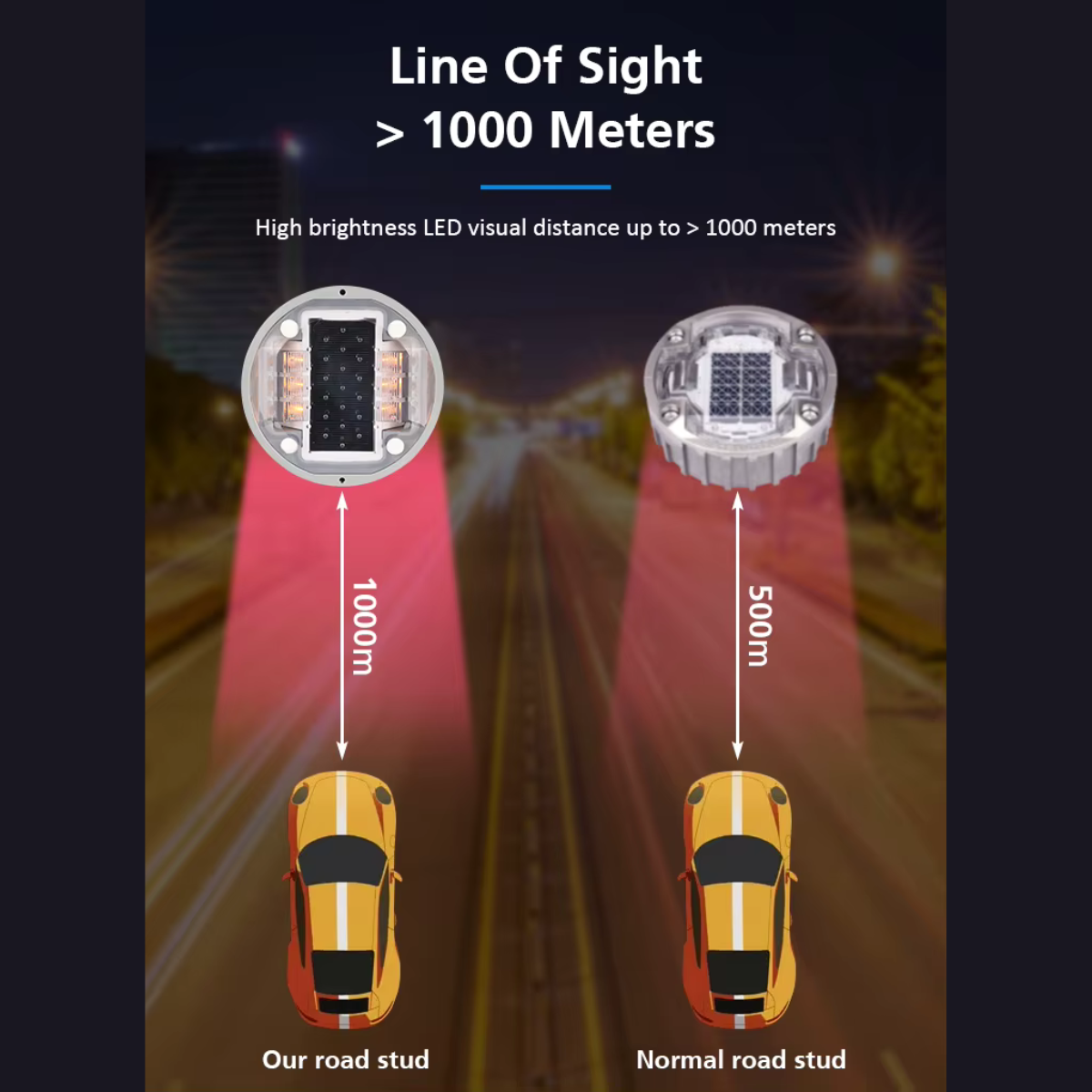

Long-distance visibility: > 1000 m (depending on conditions)
Multicolor LEDs: red, yellow, green, blue, white (depending on configuration)

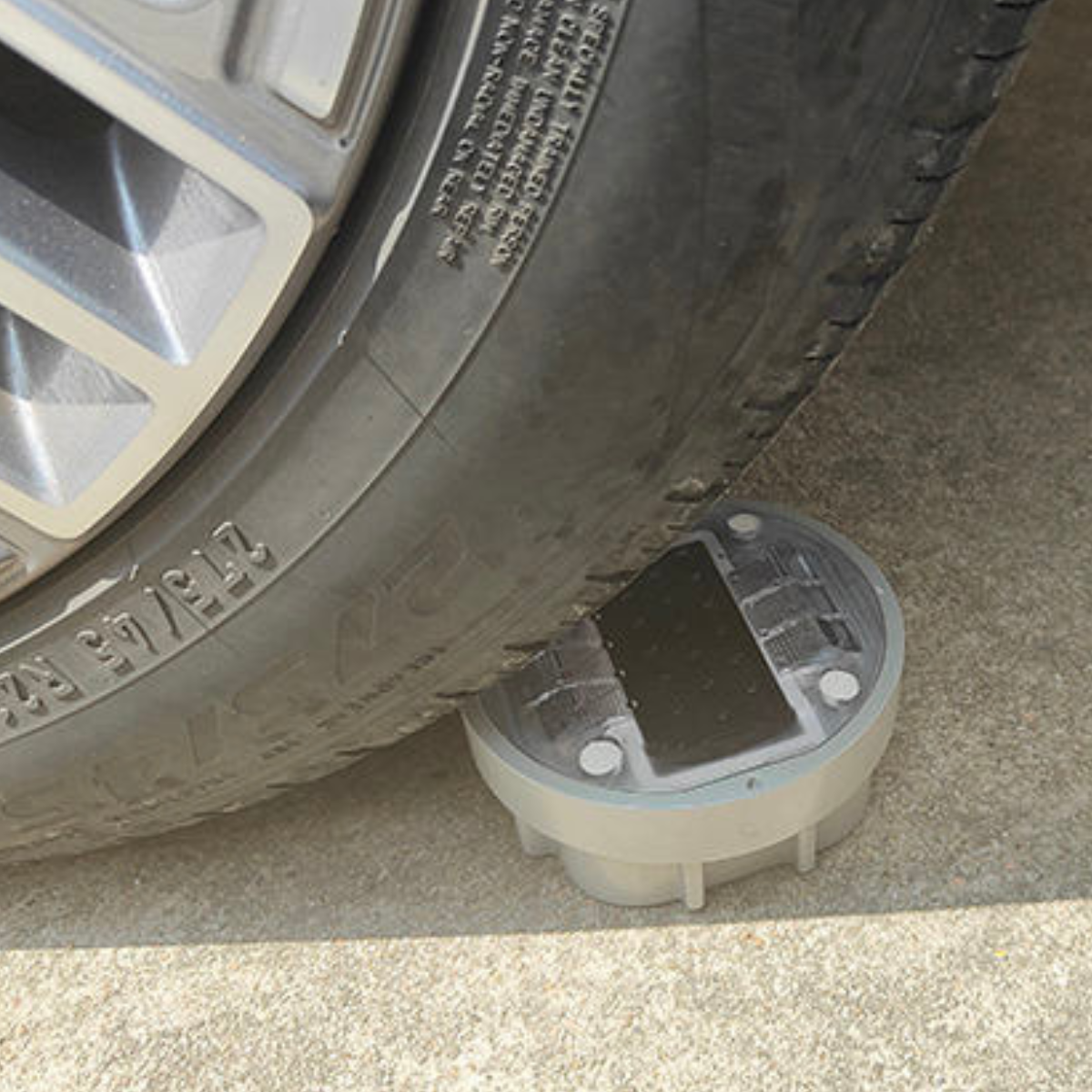

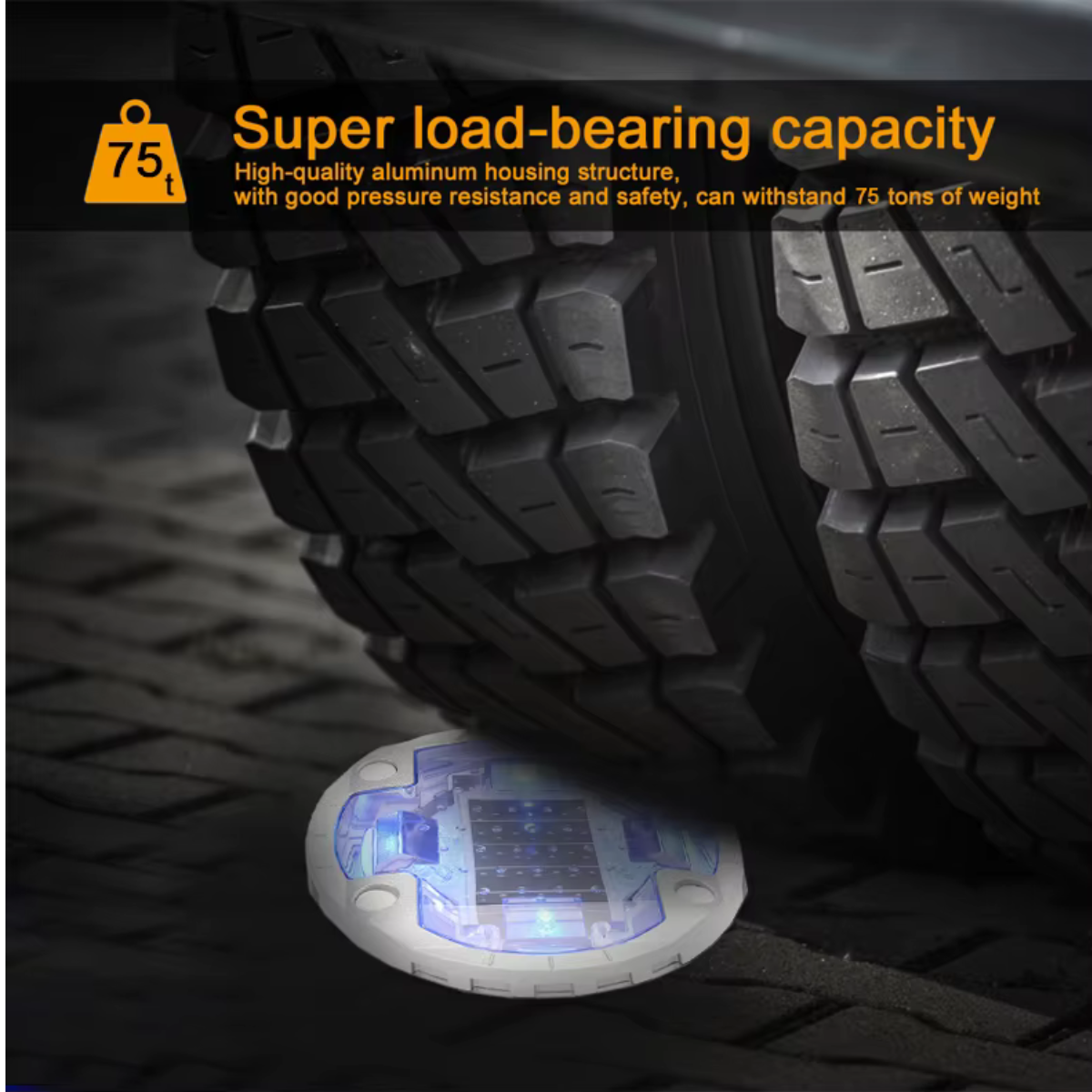

High load resistance: supports static load > 50 tons (road use)

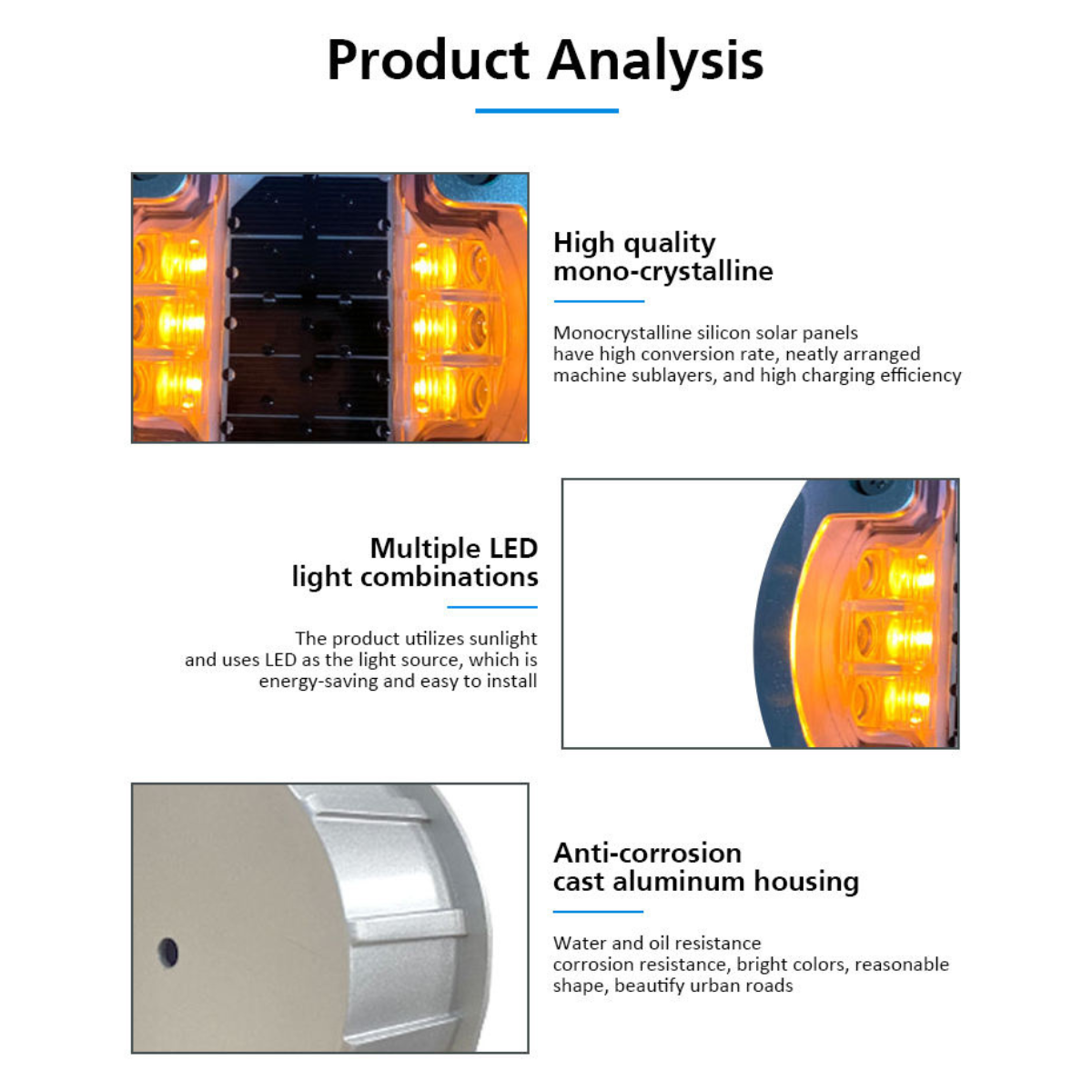

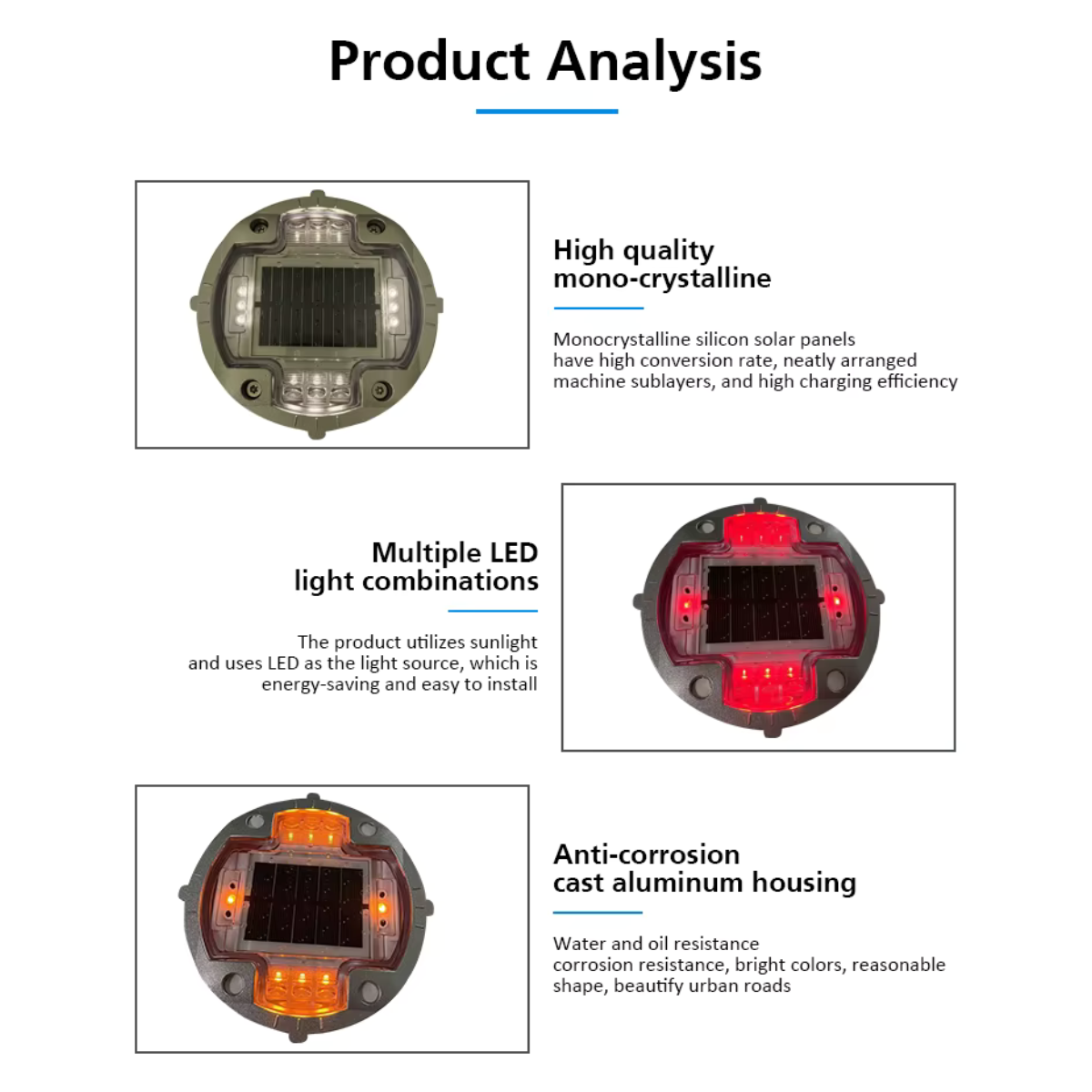

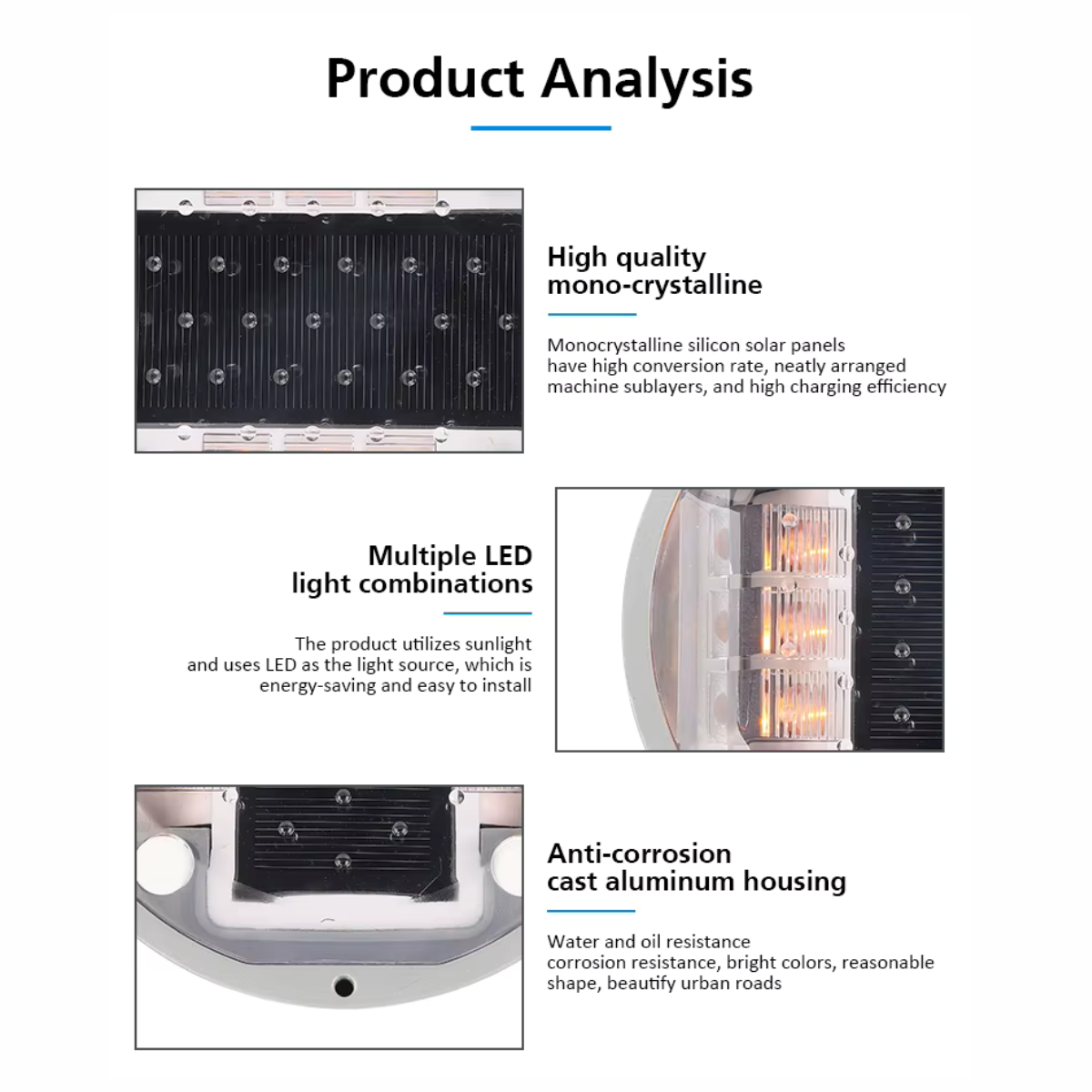

Premium materials: aluminum alloy + stainless steel + UV-resistant PC
Product description
The CS-SR-815 recessed solar road stud (“cat eyes” LED type) is specifically designed for road safety: it emits light rather than only reflecting it, improving visual guidance on roads, parking lots, industrial areas, lanes, and private roads.
Its reinforced housing and IP68 rating make it reliable in extreme conditions, from -20°C to +80°C.
Technical specifications

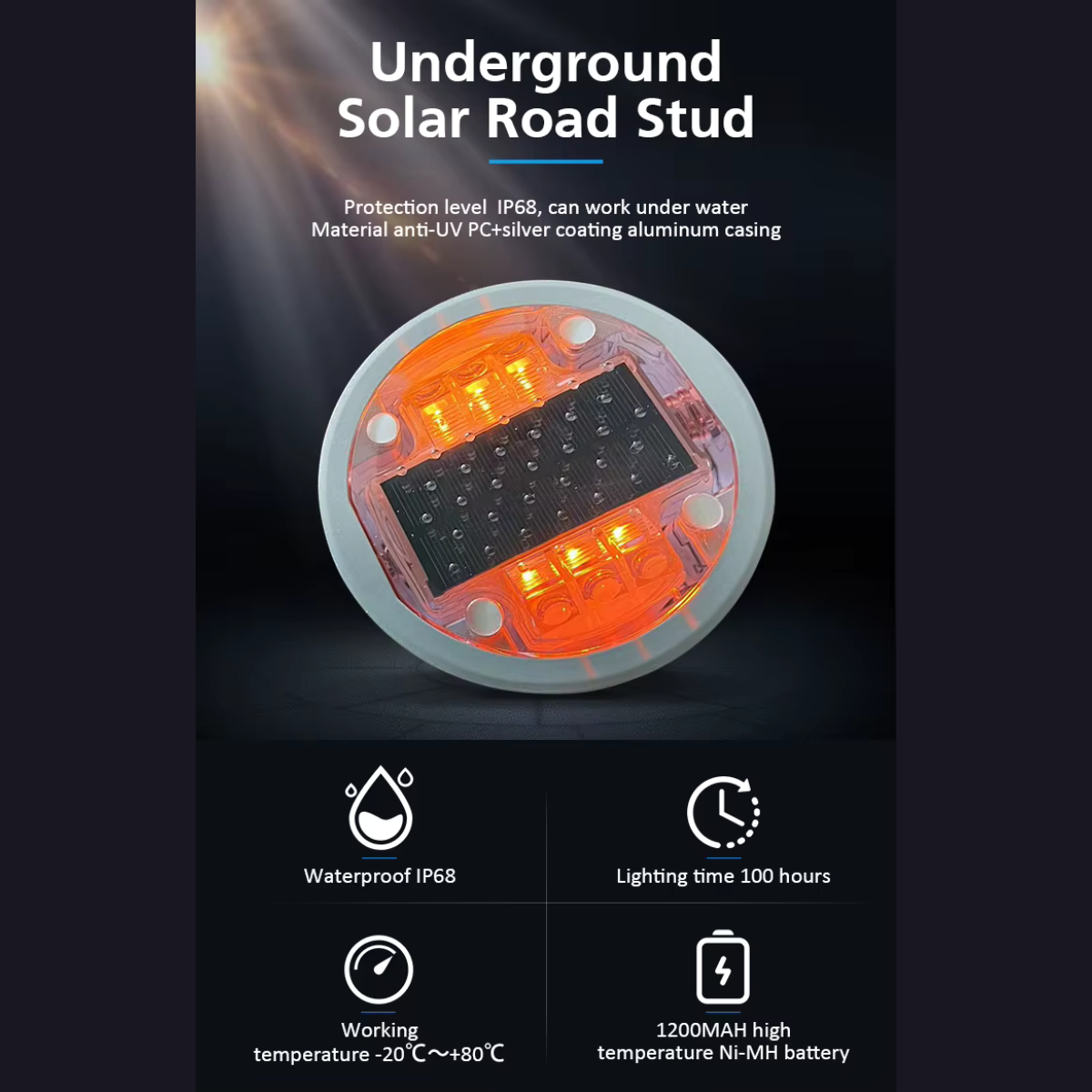

Type: Solar underground light / recessed solar road stud
Solar panel: Monocrystalline 2.5V / 220mA (batch-dependent)
Battery: High-temperature Ni-MH 1.2V / 1600mAh (batch-dependent)
Runtime: up to 100 h after full charge (mode/conditions dependent)
Modes: flashing 90 flashes/min or steady light
LED quantity: 6 high-brightness LEDs (Ø 5 mm)
Light intensity: 400–500 lux

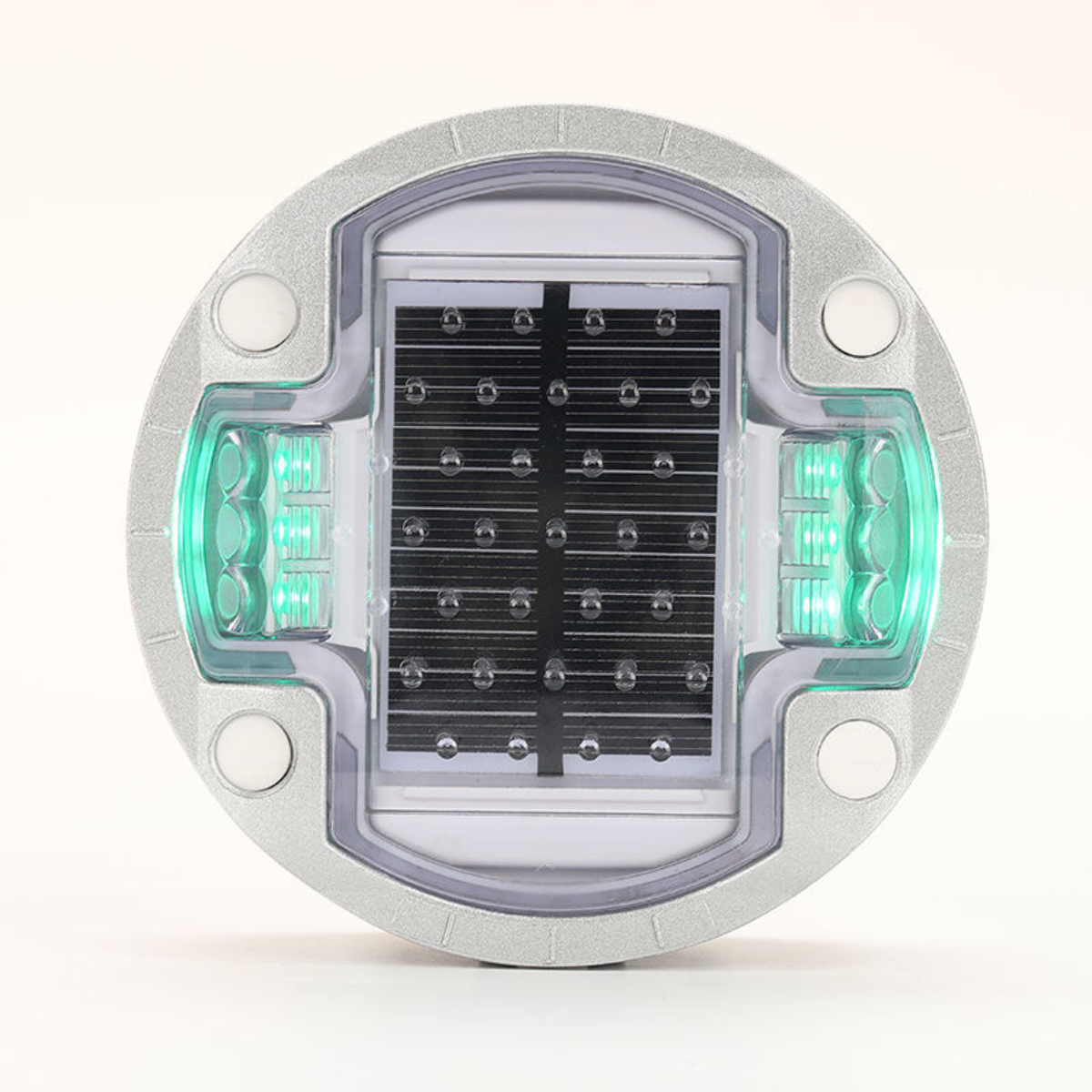

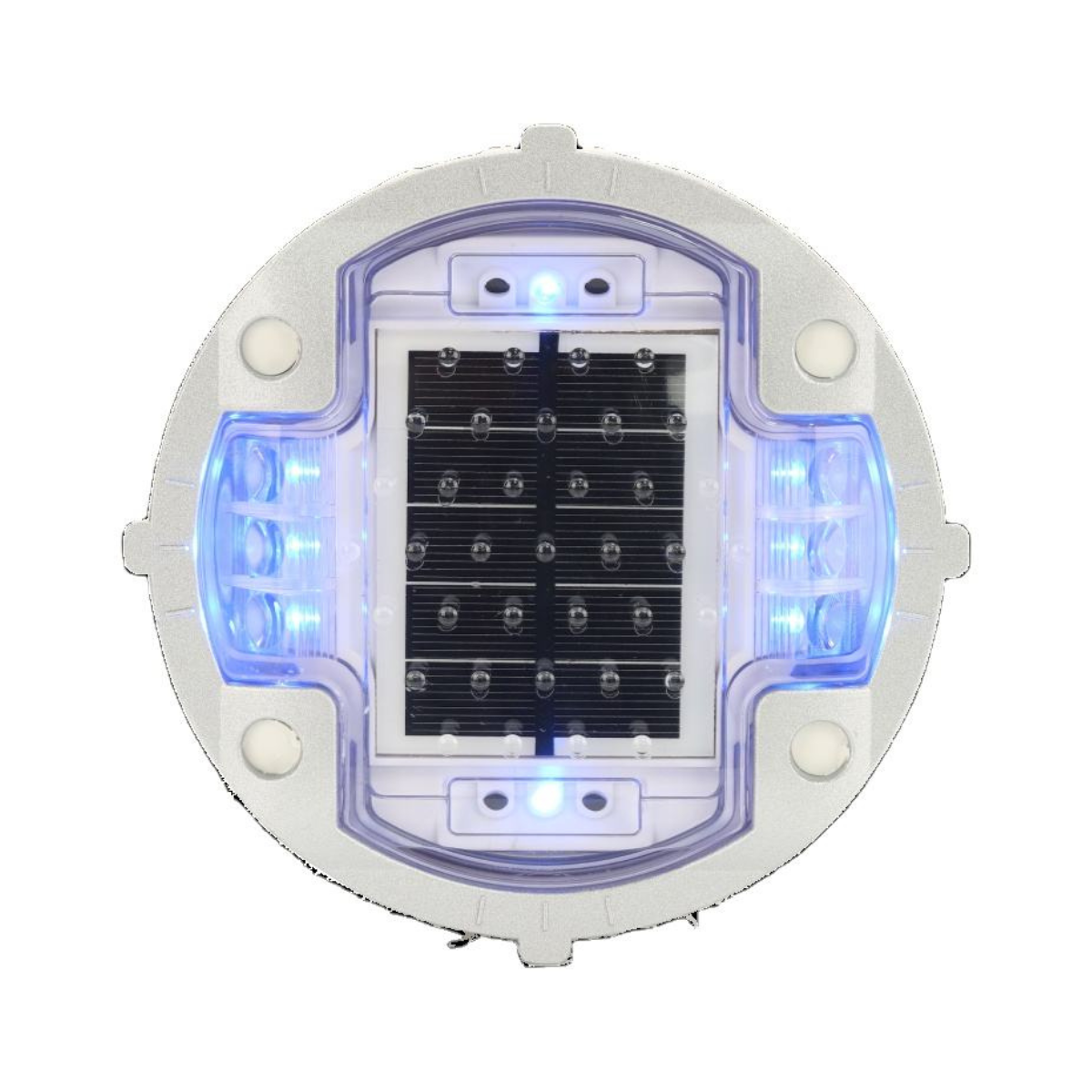

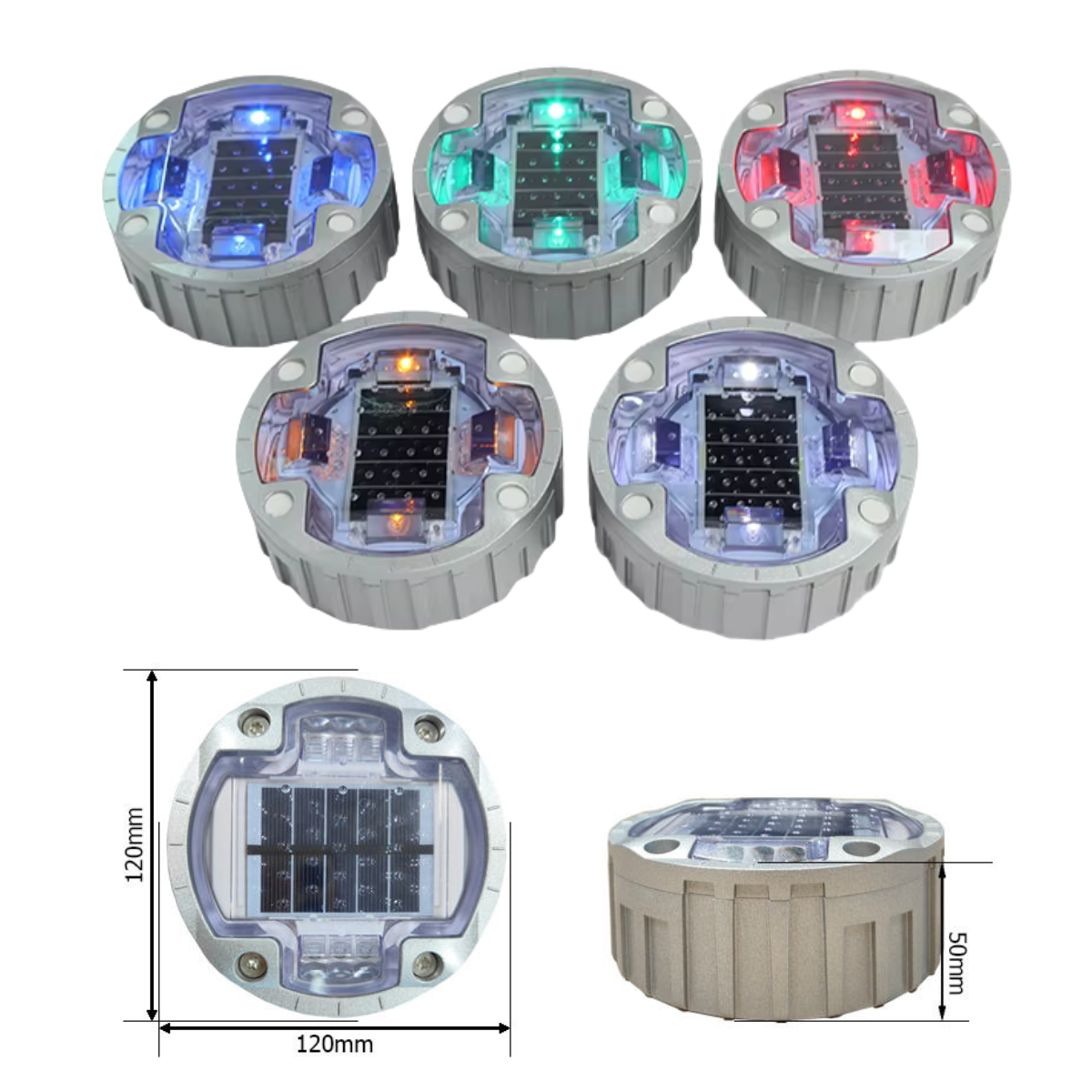

LED colors: red, yellow, green, blue, white
Protection rating: IP68

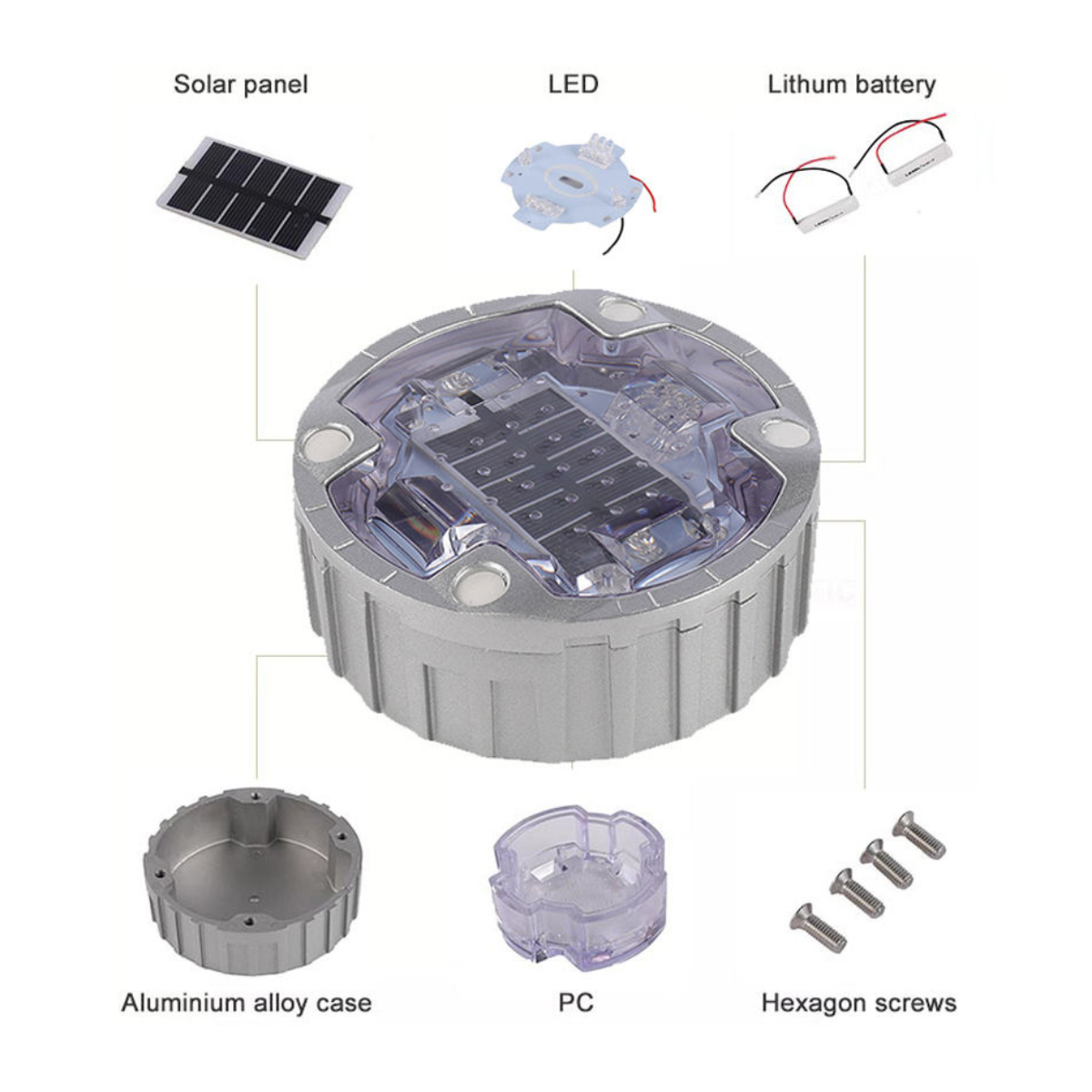

Materials: UV-resistant PC + aluminum alloy + stainless steel

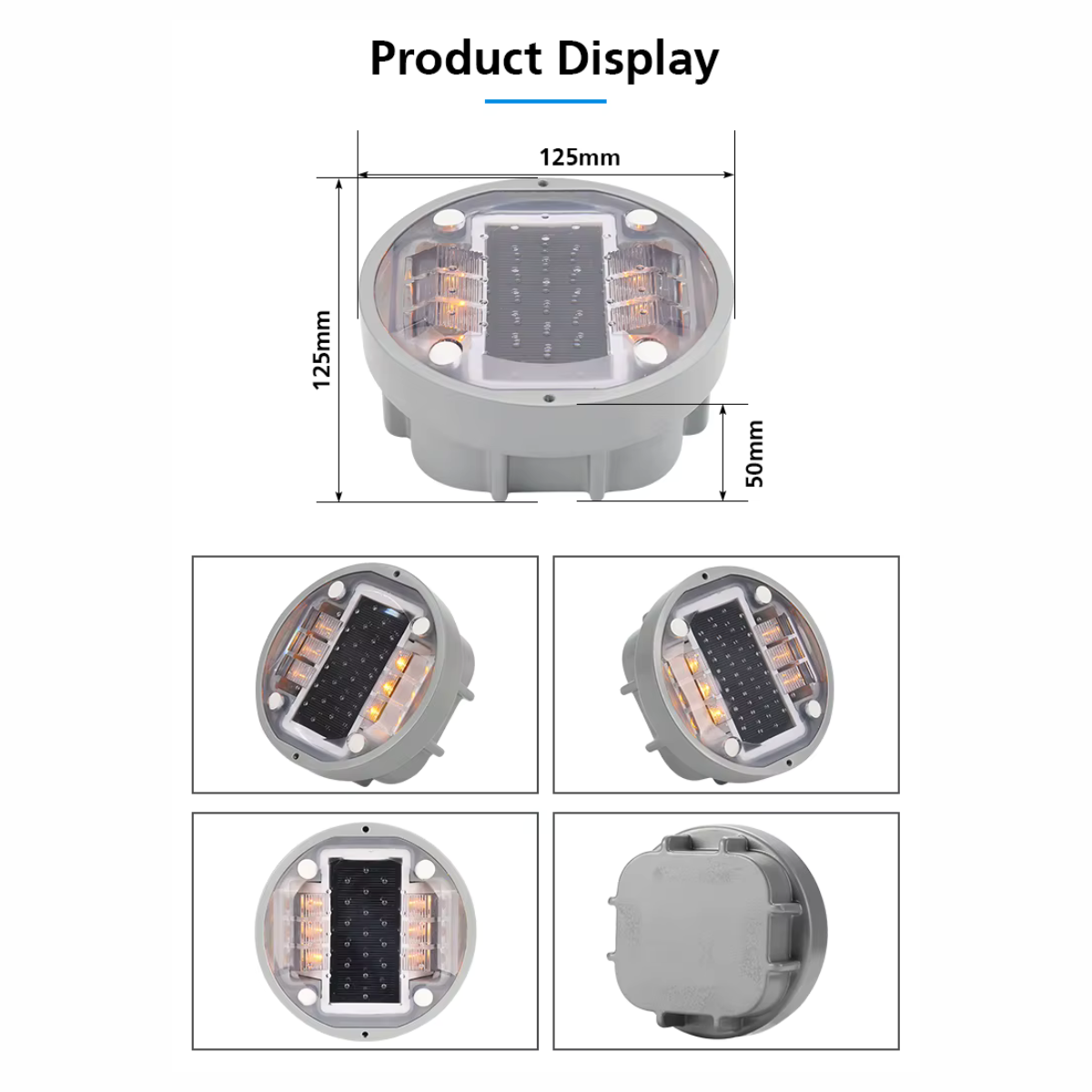

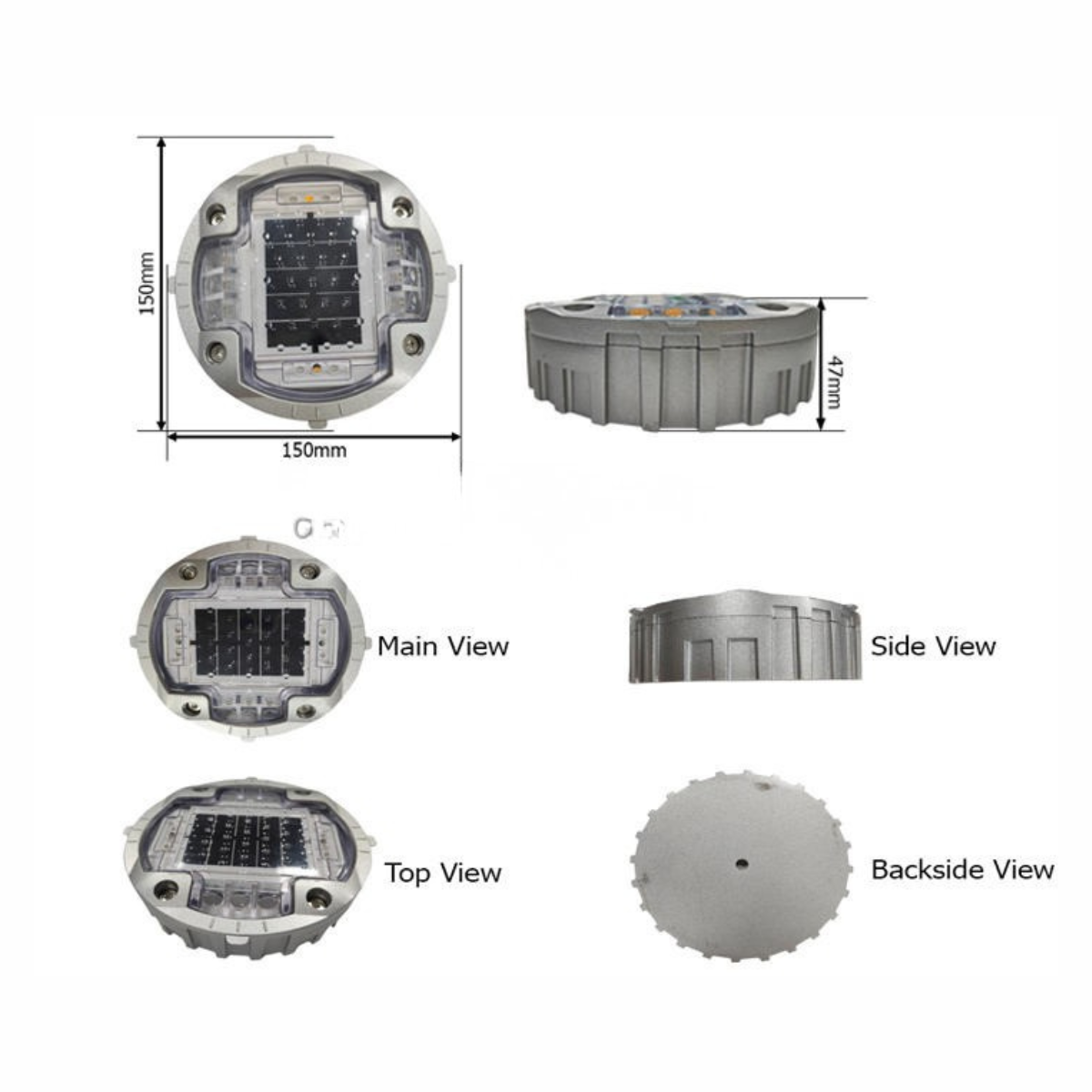

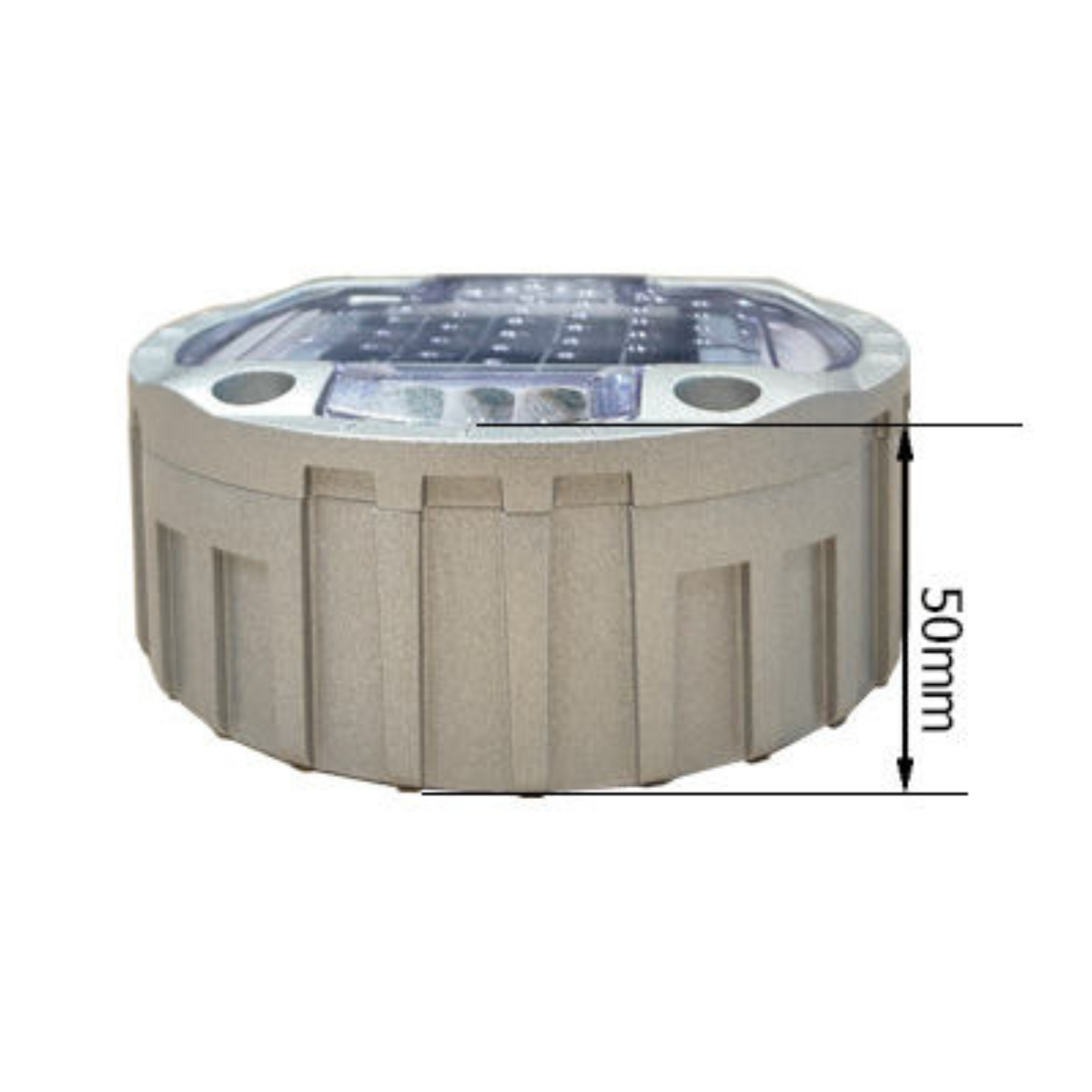

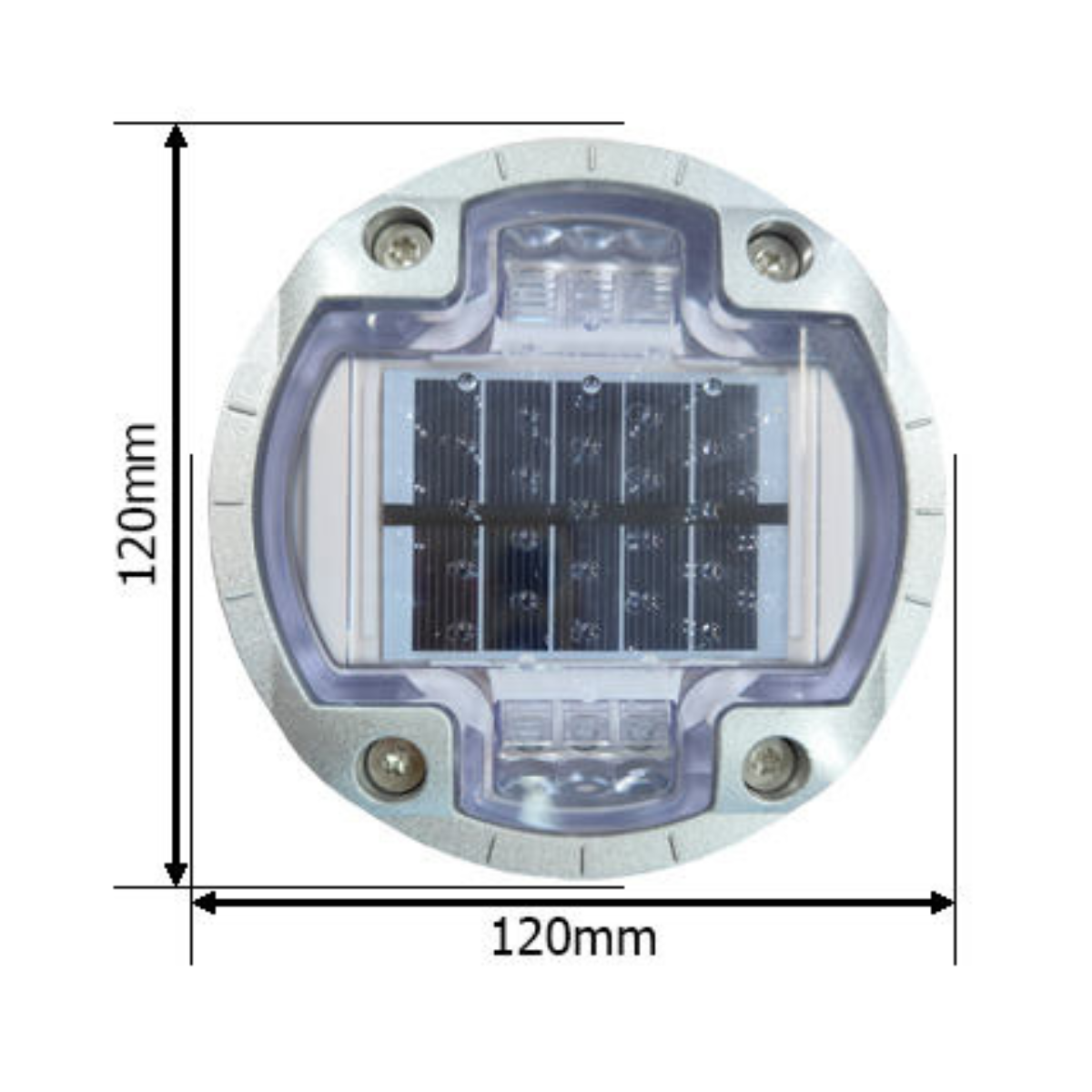

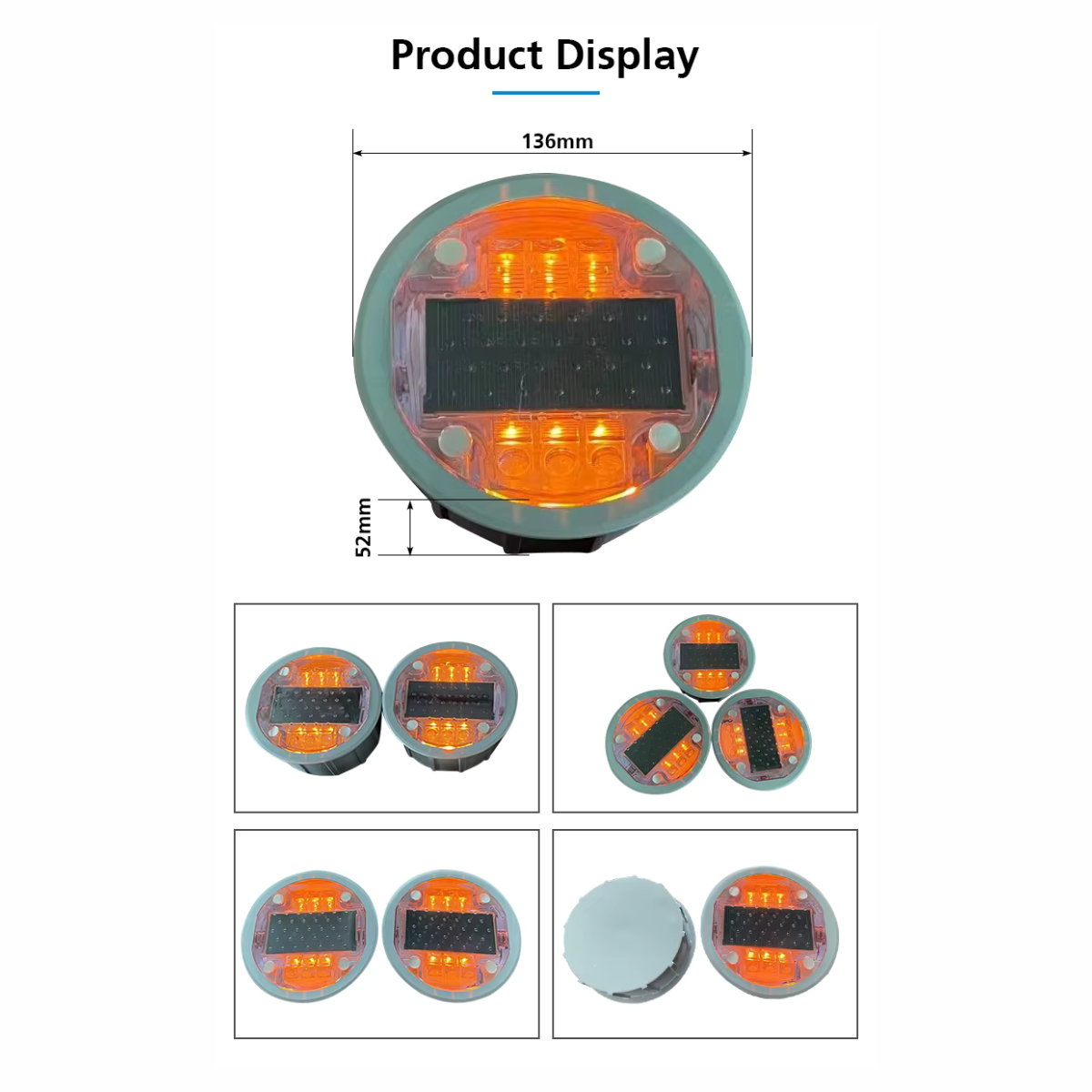

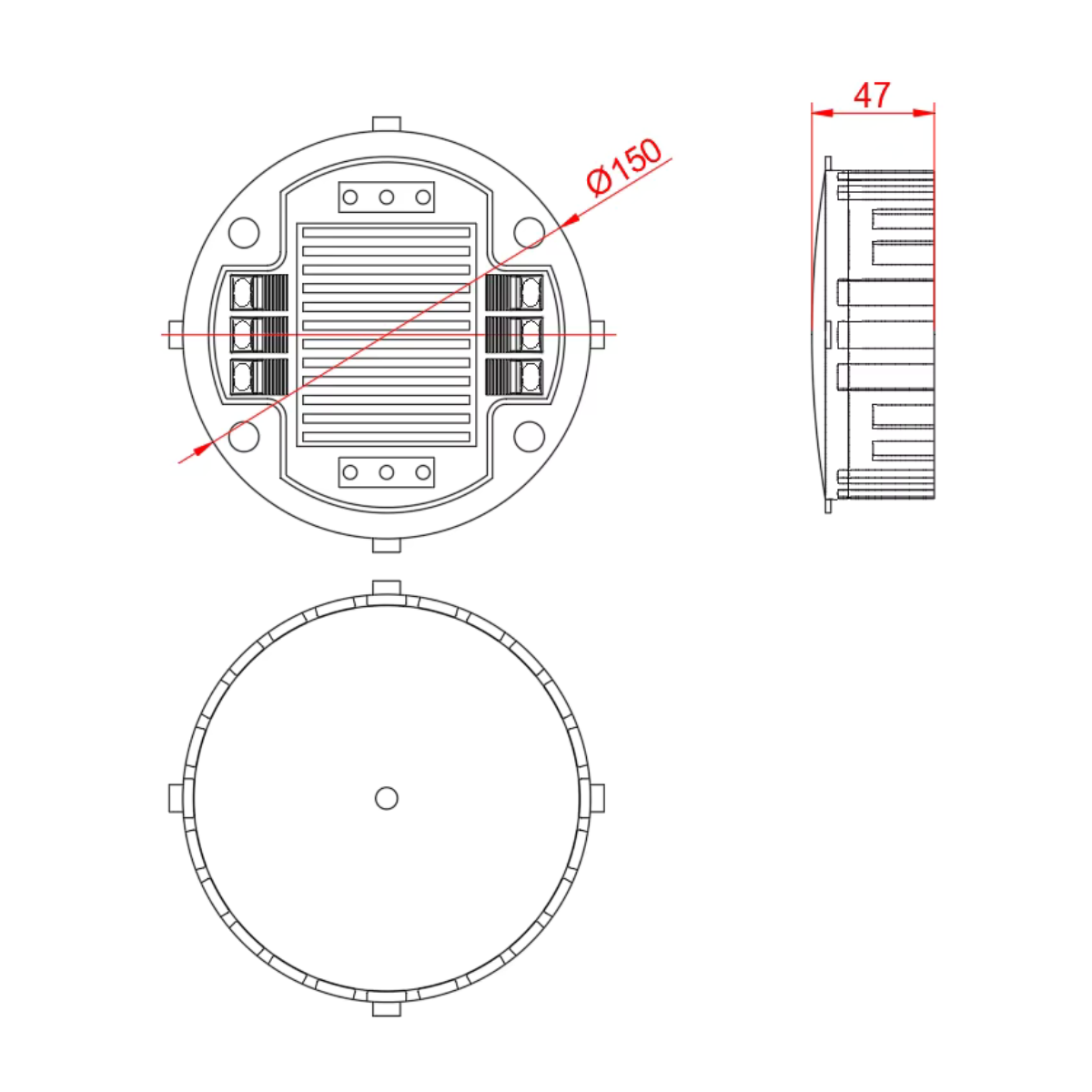

Dimensions: Ø 125 mm – height 50–55 mm (depending on version)
Net weight: approx. 0.92 kg to 1.1 kg (depending on configuration)
Operating temperature: -20°C to +80°C
Service life: 3 to 5 years (depending on use and environment)

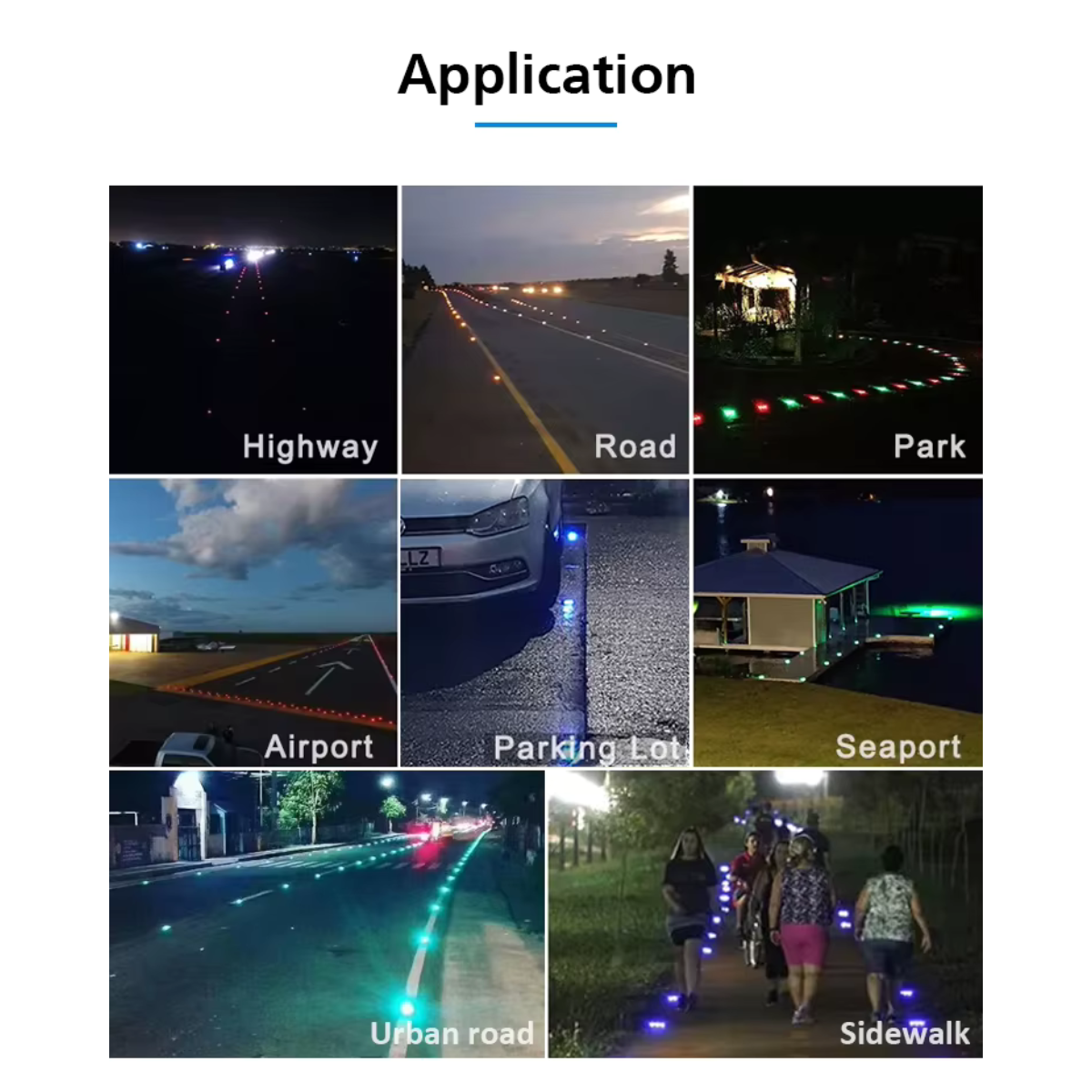

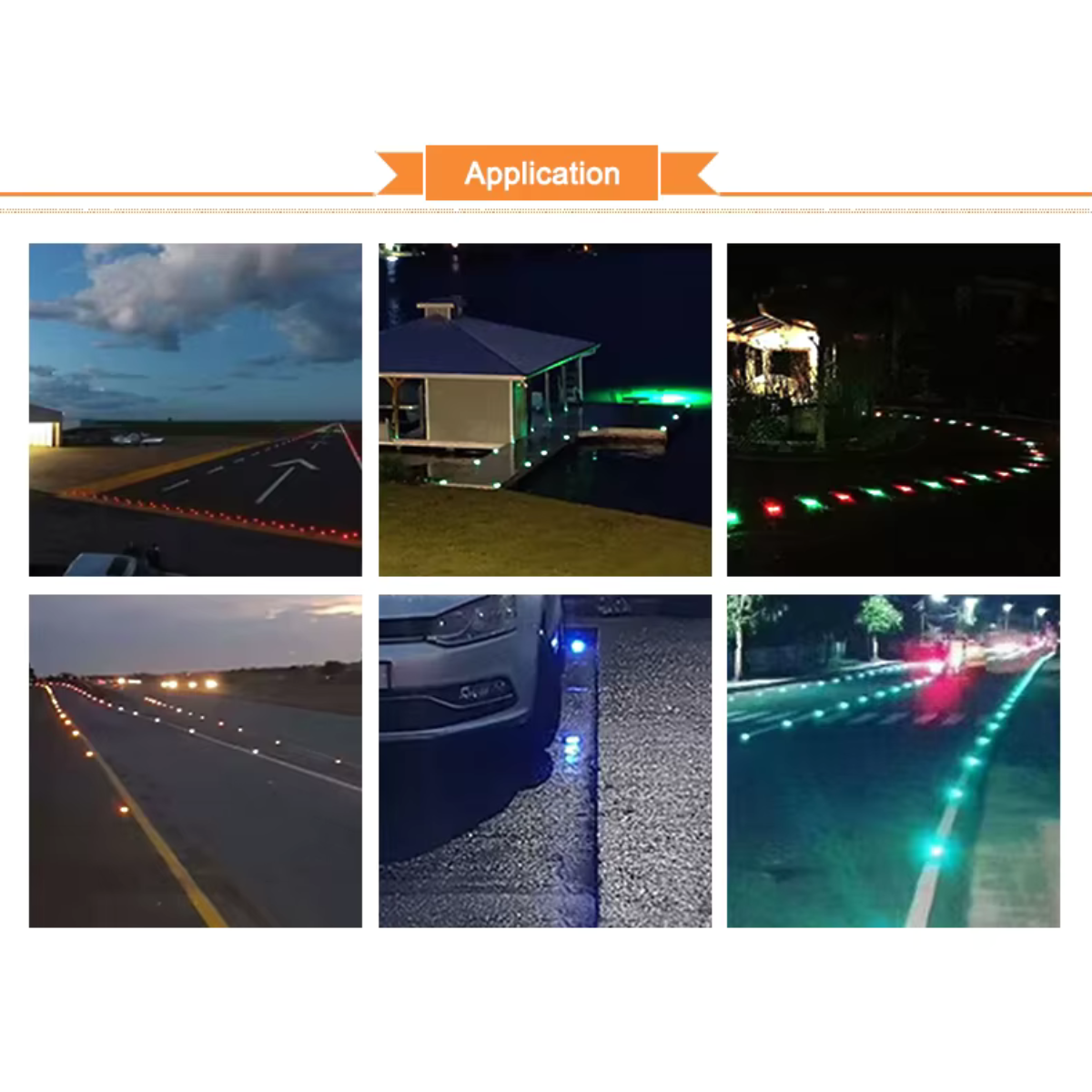

Recommended applications
Marking and guidance on roads, roundabouts, construction sites
Parking lots, internal lanes, logistics areas
Private access roads, bike lanes, driveways, industrial sites
Areas requiring night visibility without grid power
Package contents and installation
Recessed product delivered ready to use. An installation brochure/video can be provided to ensure proper installation (leveling, anchoring, orientation).
Packaging and delivery
Selling units: single item
Single package size: 12.6 × 12.6 × 2.9 cm
Single gross weight: ≈ 1.1 kg
Carton: 30 pcs / carton
Carton size: 31 × 27 × 40 cm
Carton gross weight: ≈ 25 kg
Supply capacity: up to 10,000 pcs
Services and warranty
Reply to inquiries within 24 hours
Specialized manufacturer (solar road safety equipment)
Claimed certifications: CE / RoHS / IP68
1-year warranty: replacement in case of “natural” damage during the warranty period (supplier terms apply)
Estimated shipping time:
Express / Air: 3–5 days
Sea: 20–45 days (depending on destination)
