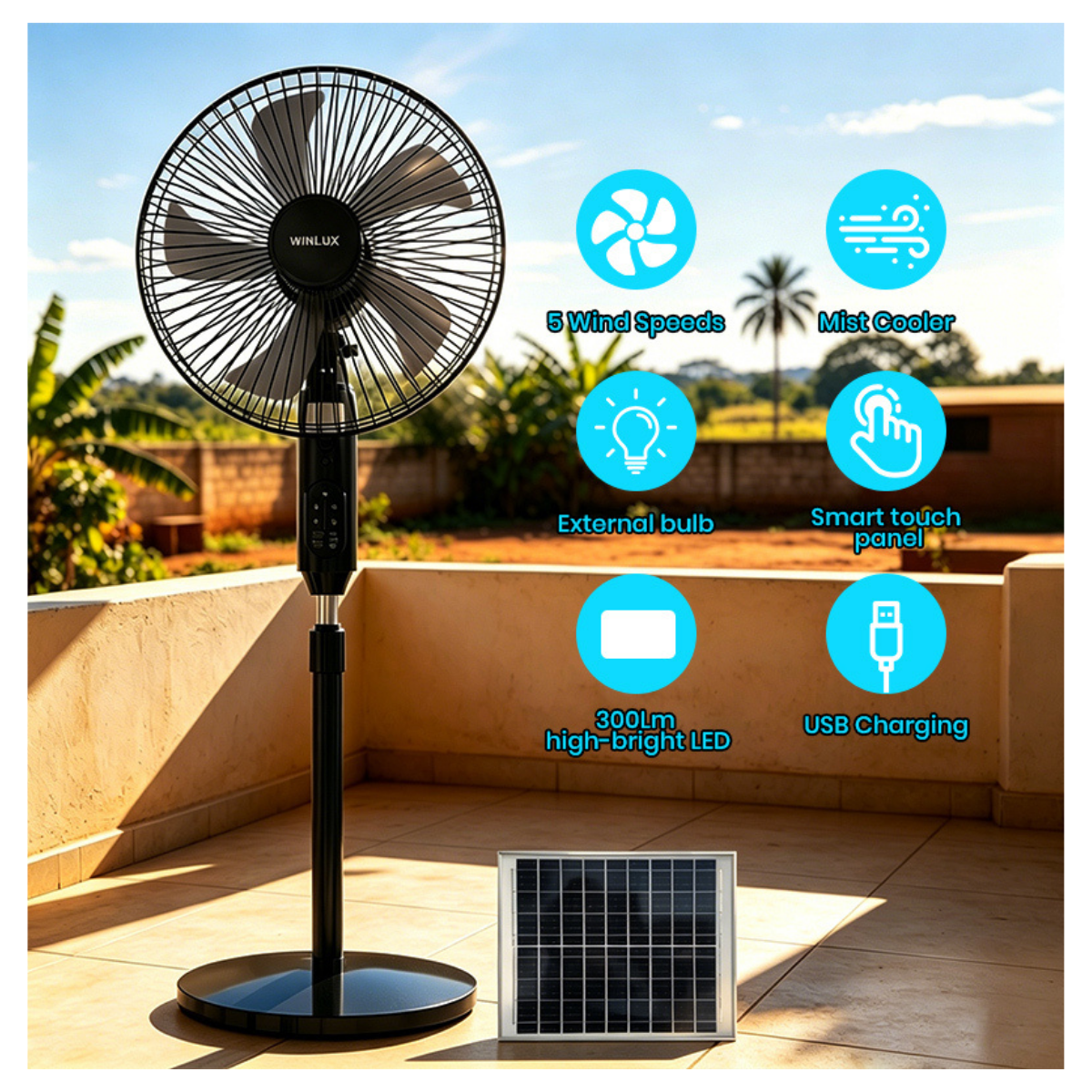

WINLUX S / M Multifunction Solar Fan
Ventilation • Misting • Lighting • USB Charging
Enjoy independent comfort, even far from the power grid.

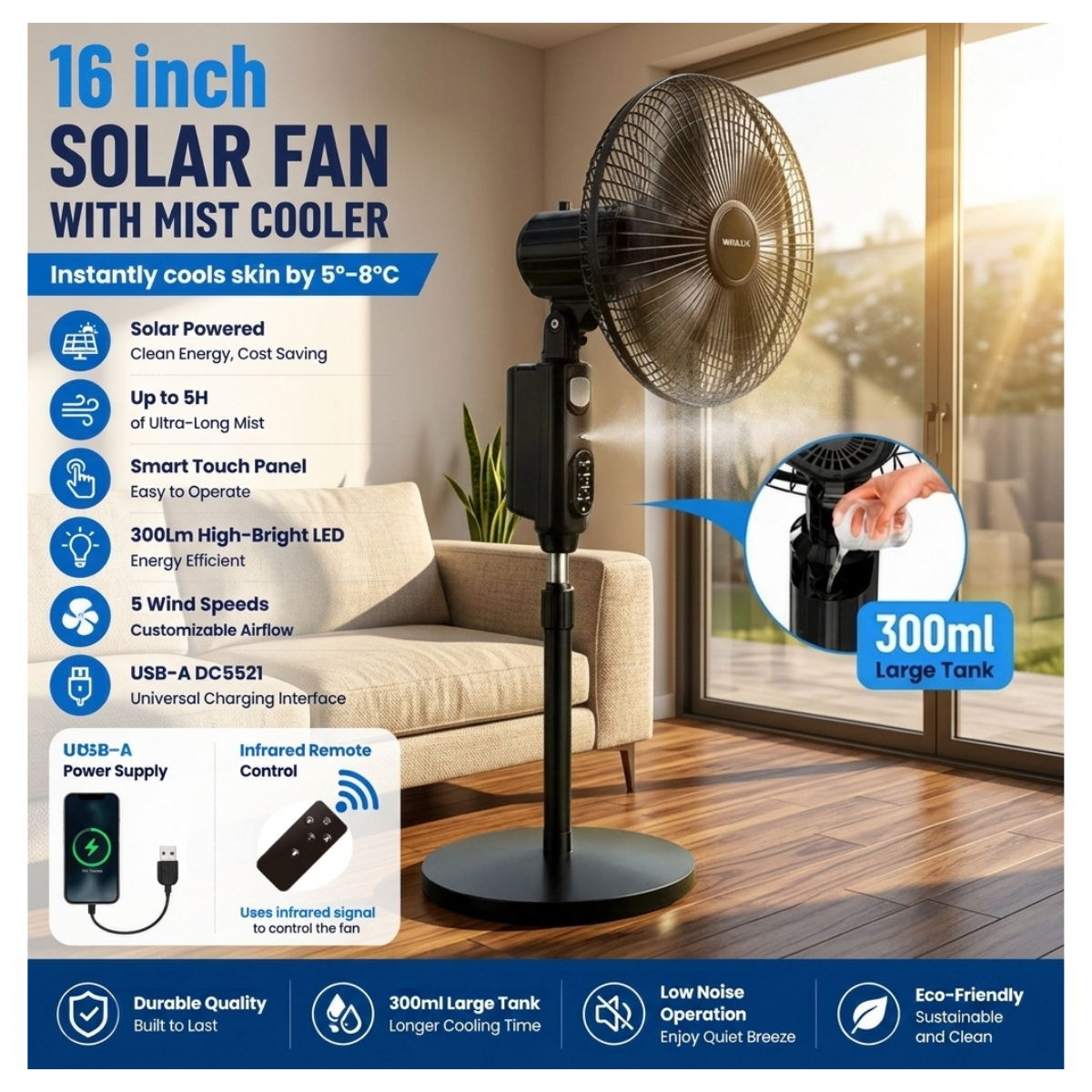

The WINLUX S / M FN-01 / FN-02 is much more than a standard fan: it combines powerful 5-speed ventilation, a refreshing misting system, 300-lumen LED lighting, and multiple power outputs for charging or powering compatible devices.
Rechargeable via solar panel or AC adapter, it is a versatile solution for terraces, gardens, campsites, leisure areas, homes, and locations where access to electricity may be limited.

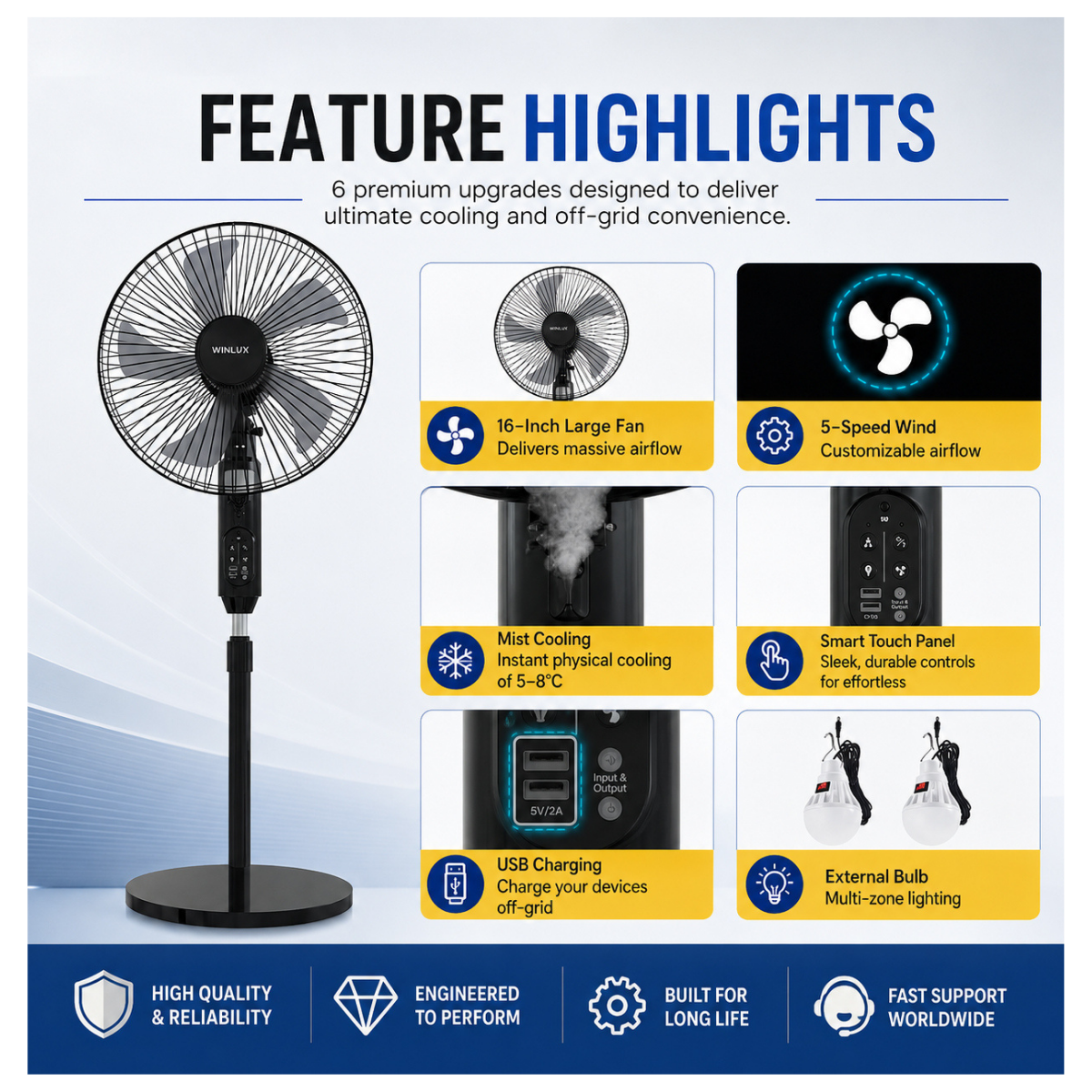

4 Essential Functions in One Device

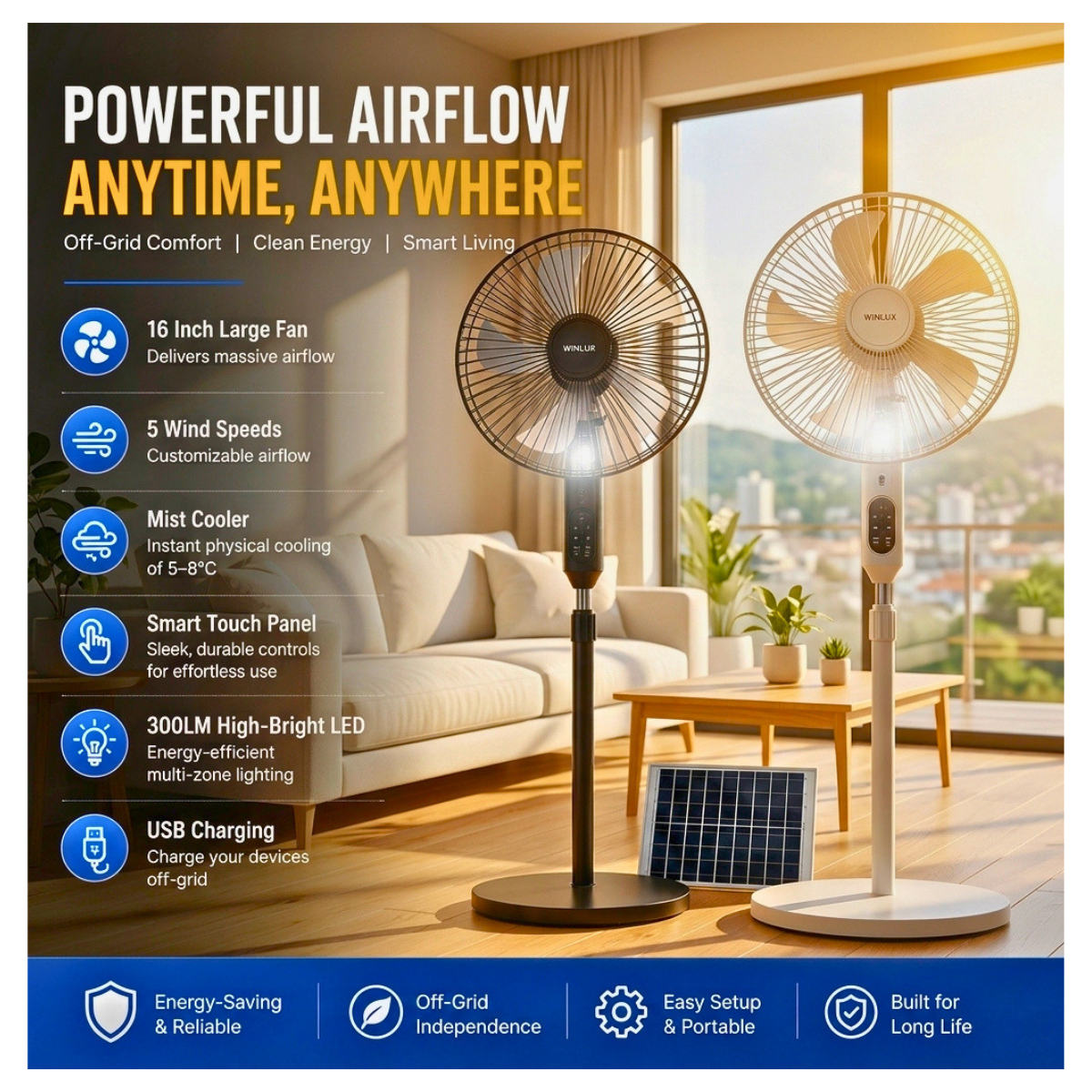

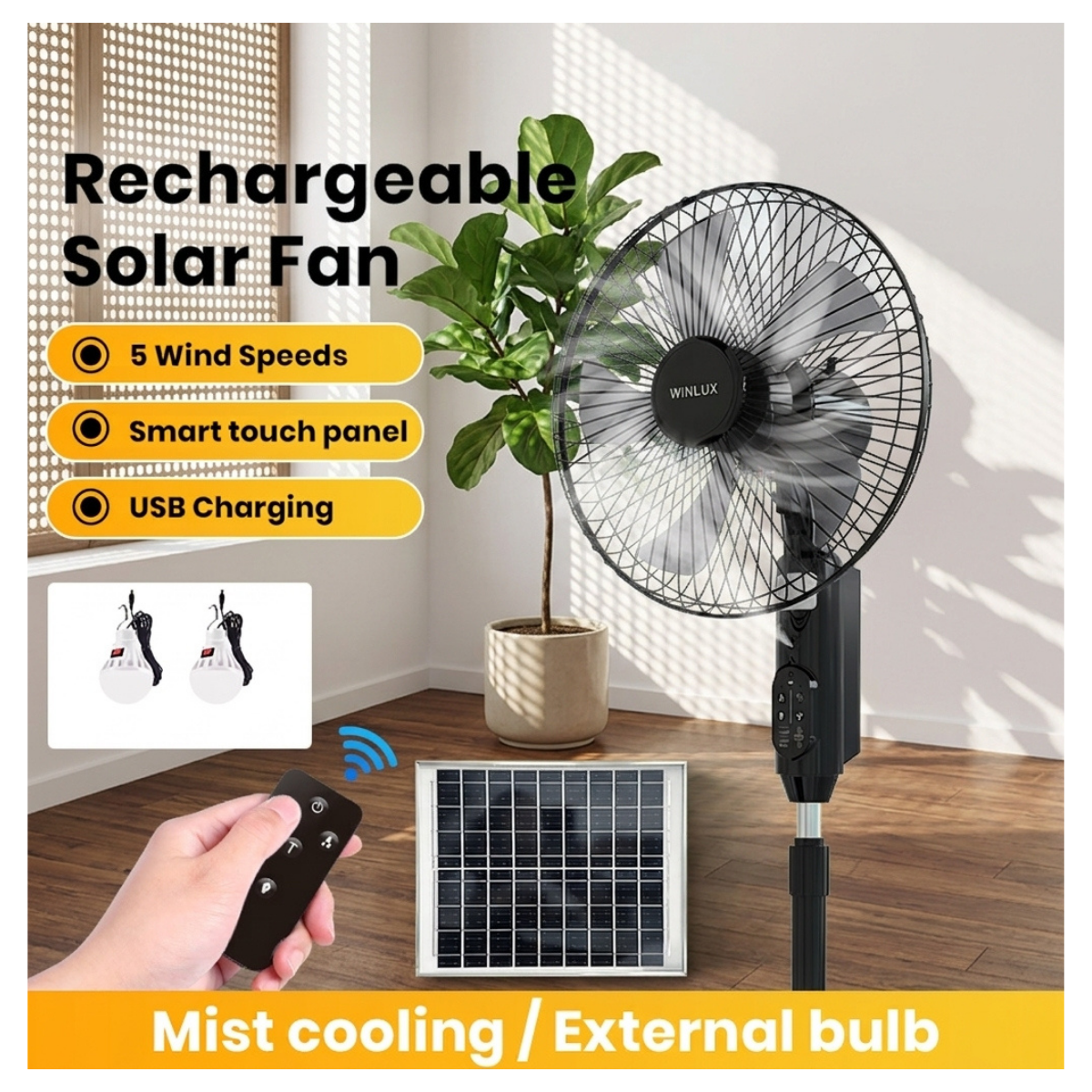

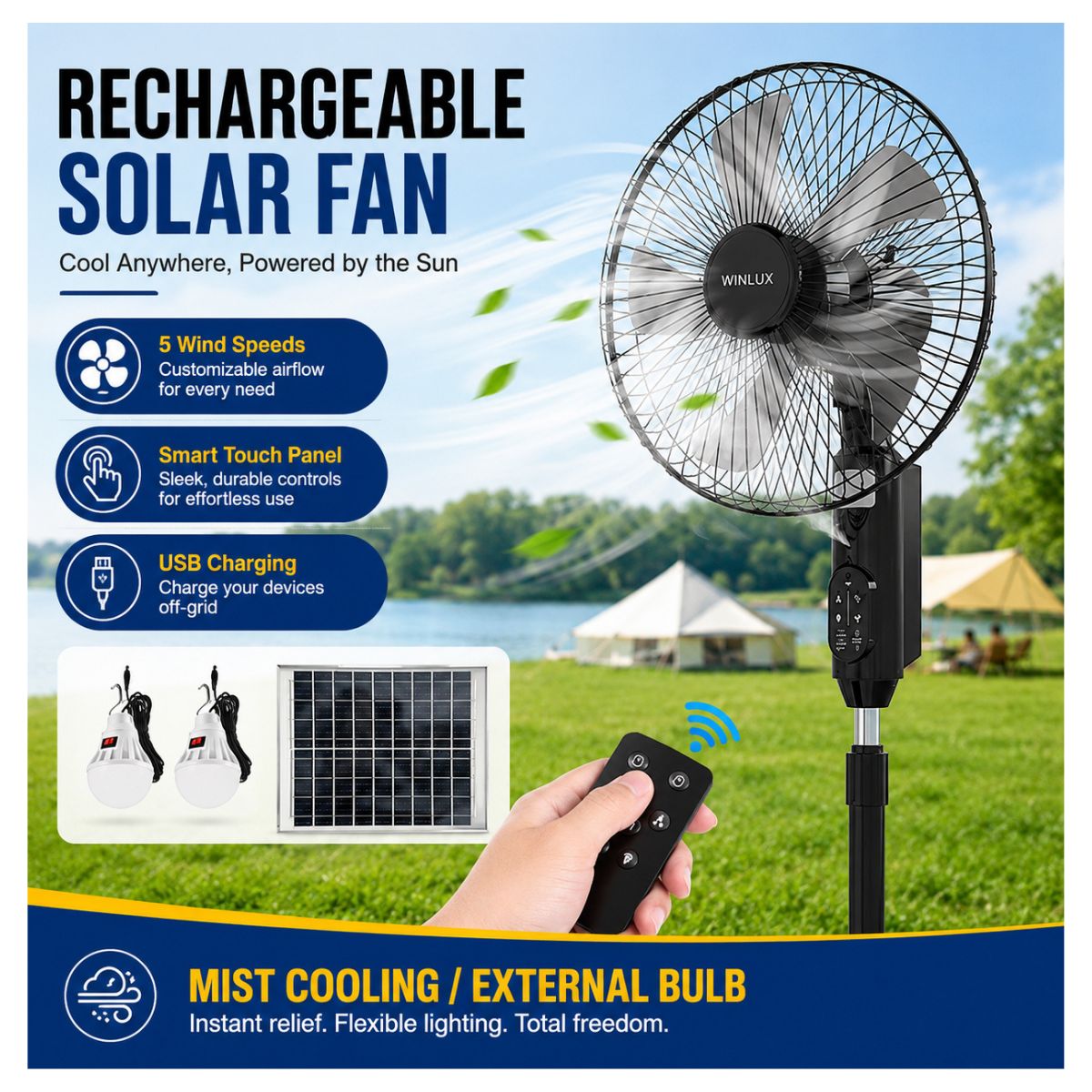

5-Speed Adjustable Ventilation
Instantly adjust the airflow to suit your needs with the available settings:
30% – 50% – 80% – 100% – Natural Wind Mode
A programmable 1 to 4-hour timer also makes it easy to control operating time.

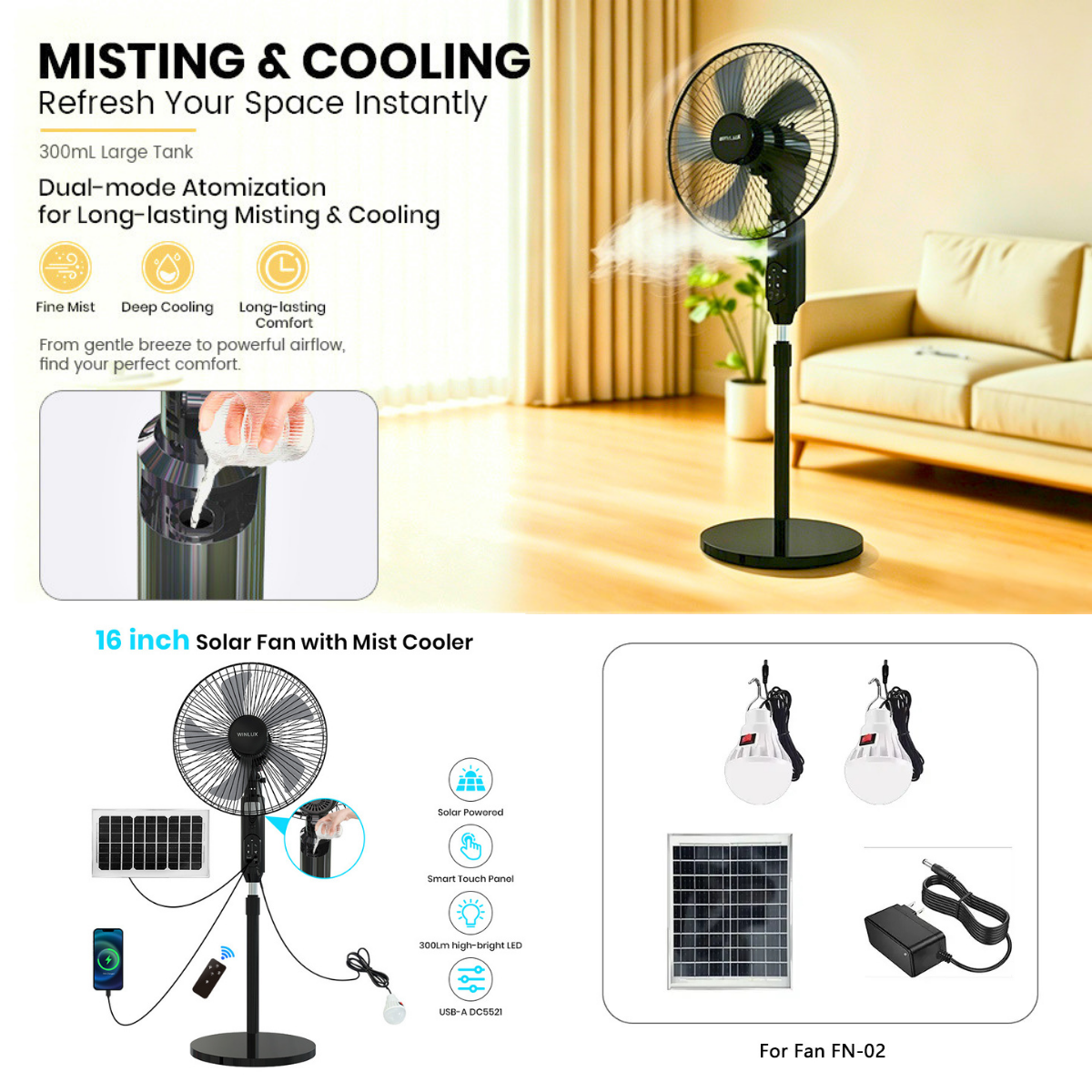

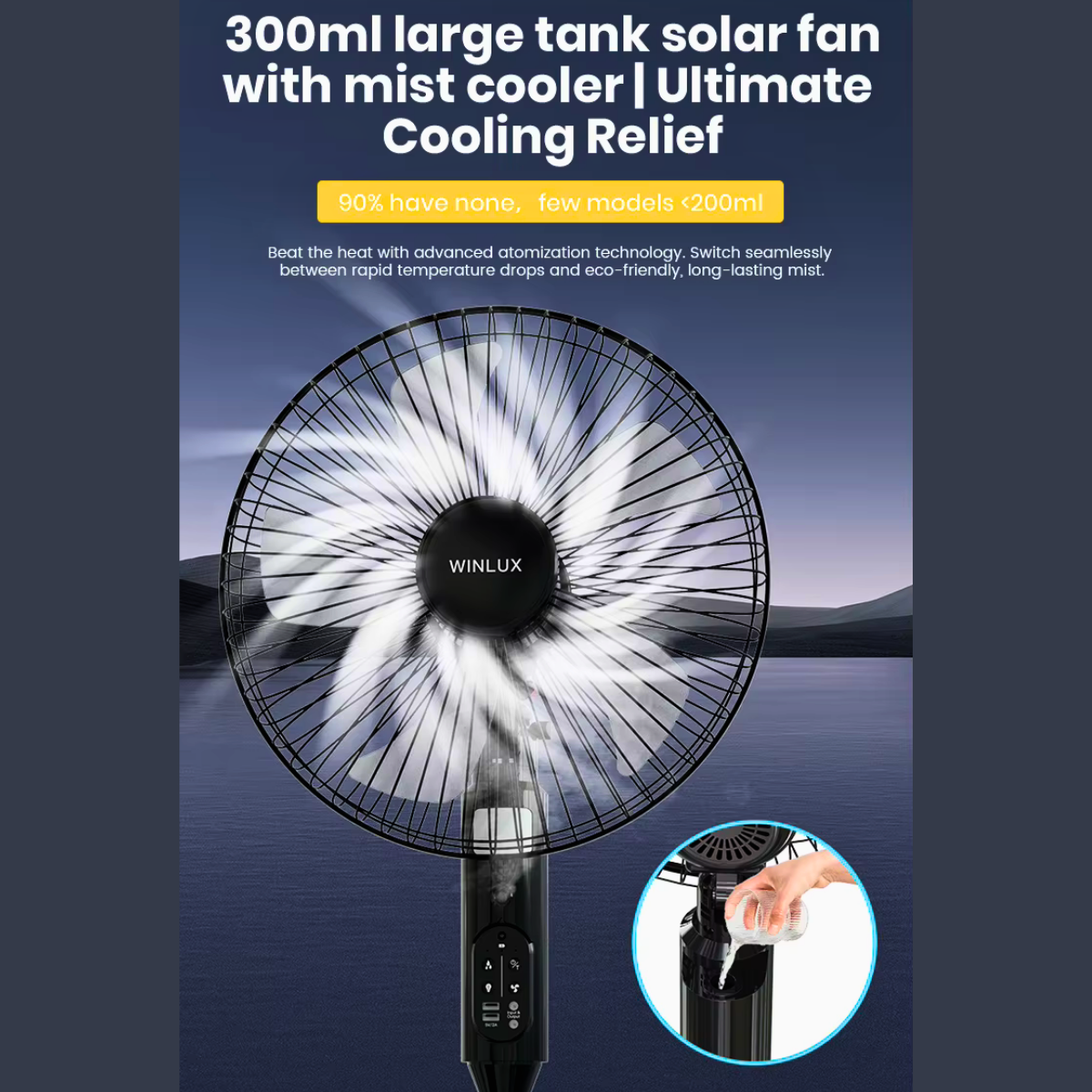

Refreshing Misting System
The WINLUX features a 300 ml water tank and a dual-mode misting system:
Continuous mode
Intermittent mode
With a mist output of approximately 40 ml per hour, the system combines fine mist with airflow to create a refreshing cooling effect, especially appreciated during hot weather.
Simply add clean water to the tank to activate the misting function.

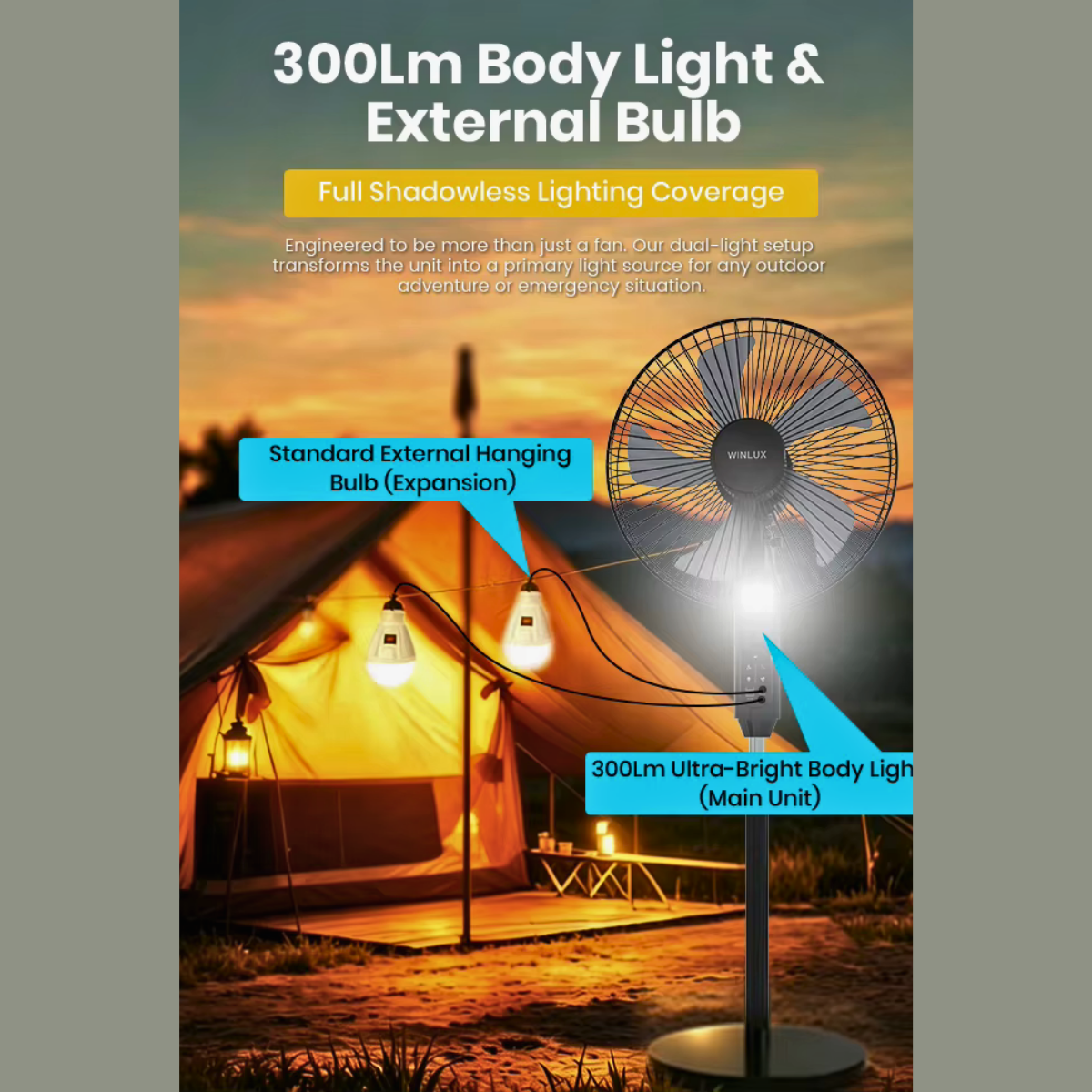

Integrated 300-Lumen LED Light
The built-in LED lamp also allows the fan to be used as a practical lighting source.
Two brightness levels are available:
50%
100%
An ideal solution for outdoor evenings, camping, terraces, or areas with limited lighting.

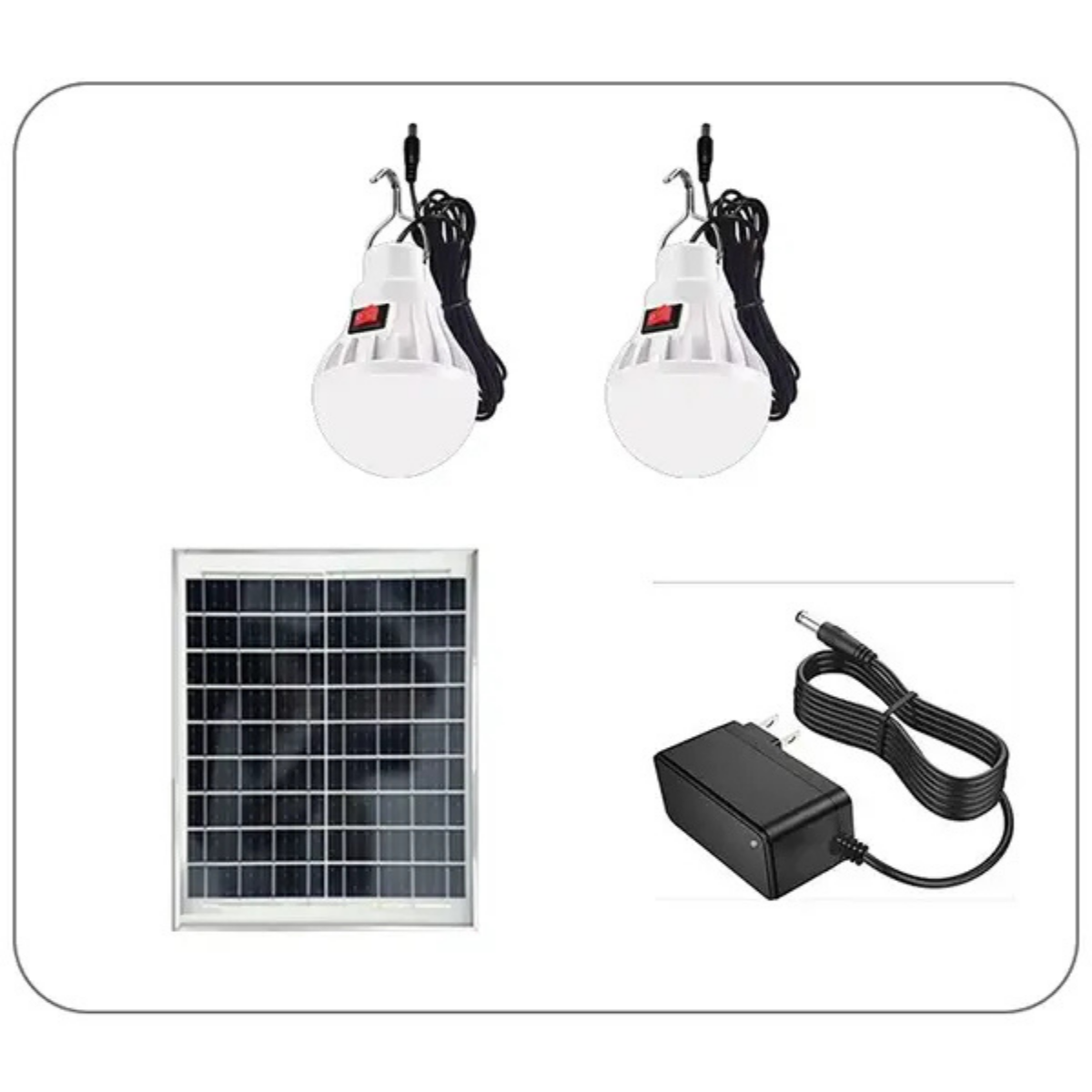

The system also supports the connection of compatible external lighting.

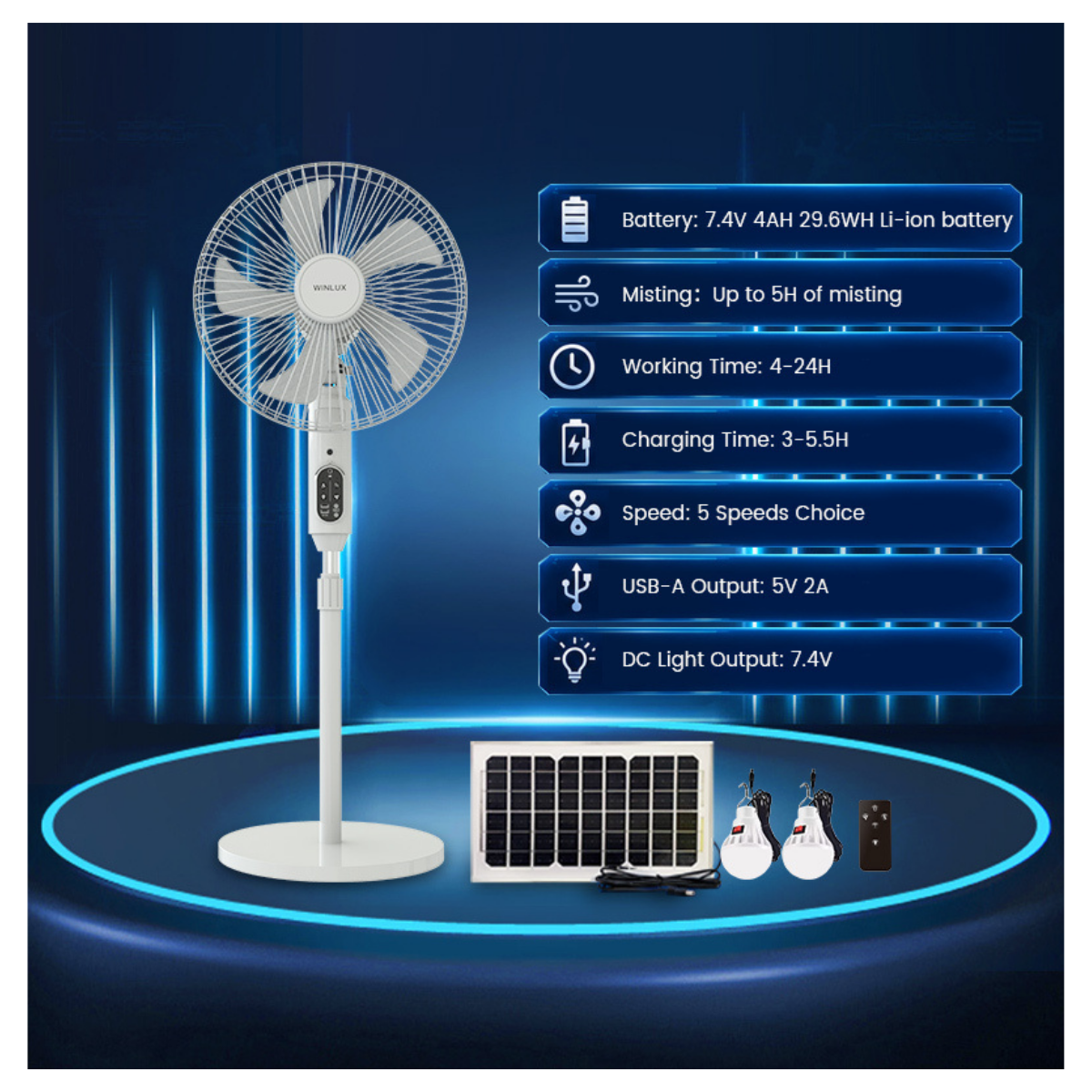

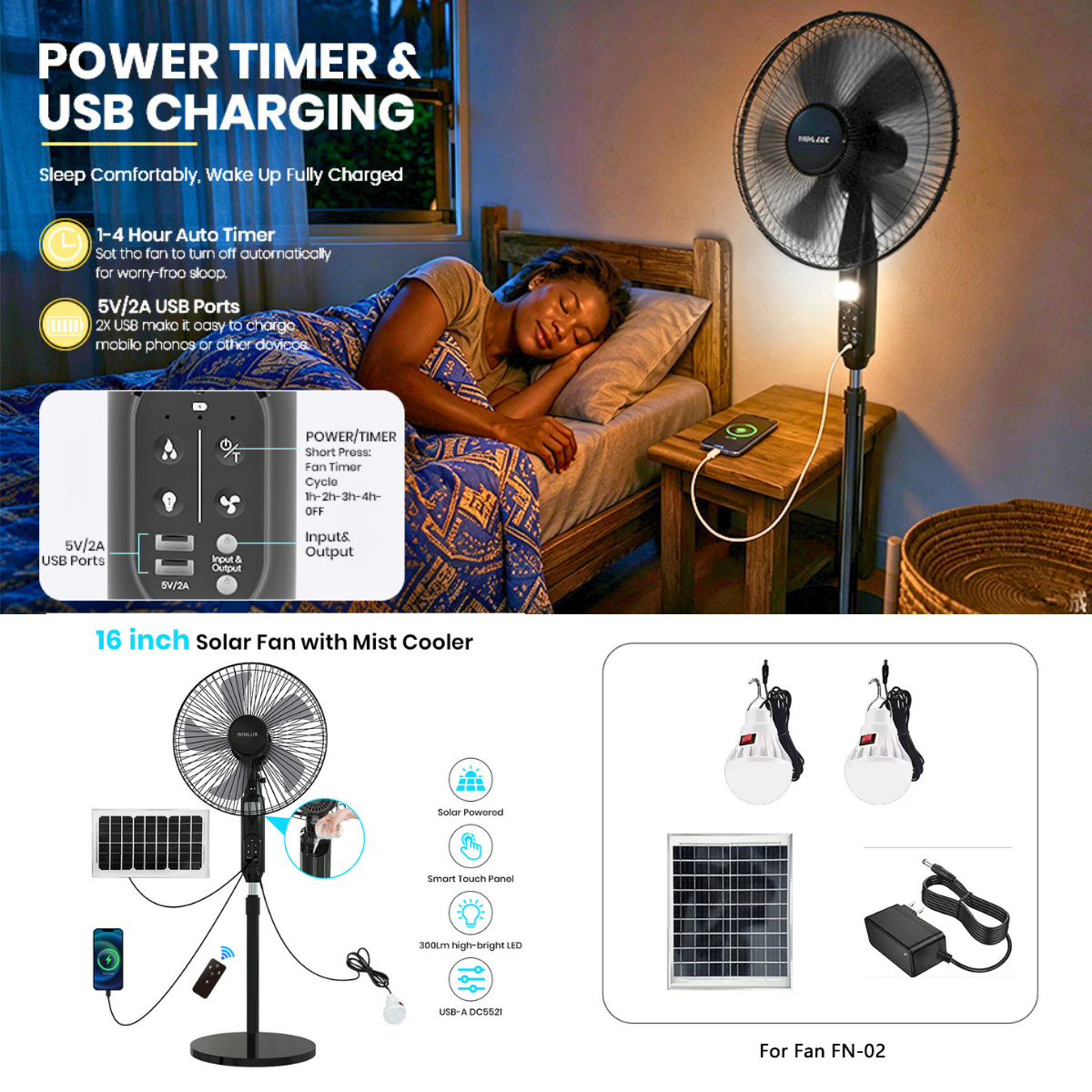

High-Capacity Battery & USB Power Supply
Depending on the selected version, the WINLUX is equipped with a lithium-ion battery offering:
FN-01: 29.6 Wh – 7.4 V / 4 Ah
FN-02: 59.2 Wh – 7.4 V / 8 Ah
Available outputs include:
2 USB-A ports – 5 V / 2 A
2 DC5521 connections – 7.4 V
The fan can therefore help power or recharge various compatible small devices, including mobile phones.

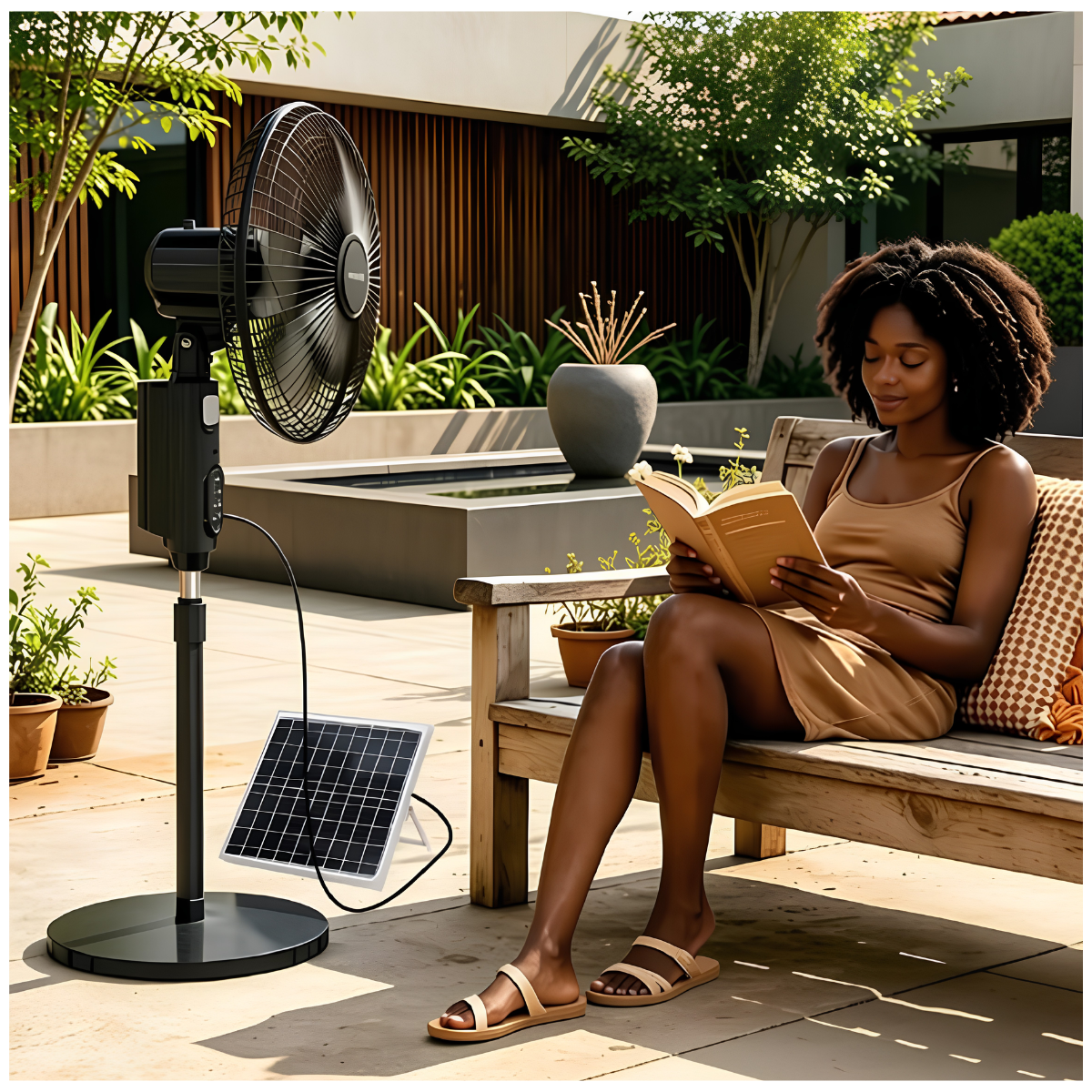

Solar Charging
The WINLUX is designed to operate with a monocrystalline solar panel:
FN-01
Solar panel: 9 V / 10 W
Battery: 29.6 Wh
Solar charging time: approximately 4 hours
Adapter charging time: approximately 3 hours
FN-02
Solar panel: 9 V / 14 W
Battery: 59.2 Wh
Solar charging time: approximately 5.5 hours
Adapter charging time: approximately 5 hours
This dual charging capability provides excellent flexibility for both home and outdoor use.
Designed for Everyday and Outdoor Use
Thanks to its autonomous operation and multiple functions, the WINLUX S / M is particularly suitable for:
Terraces and gardens
Camping and outdoor activities
Homes
Relaxation areas
Small businesses
Offices and workspaces
Locations with limited access to electricity
Domestic or professional applications requiring independent ventilation and lighting

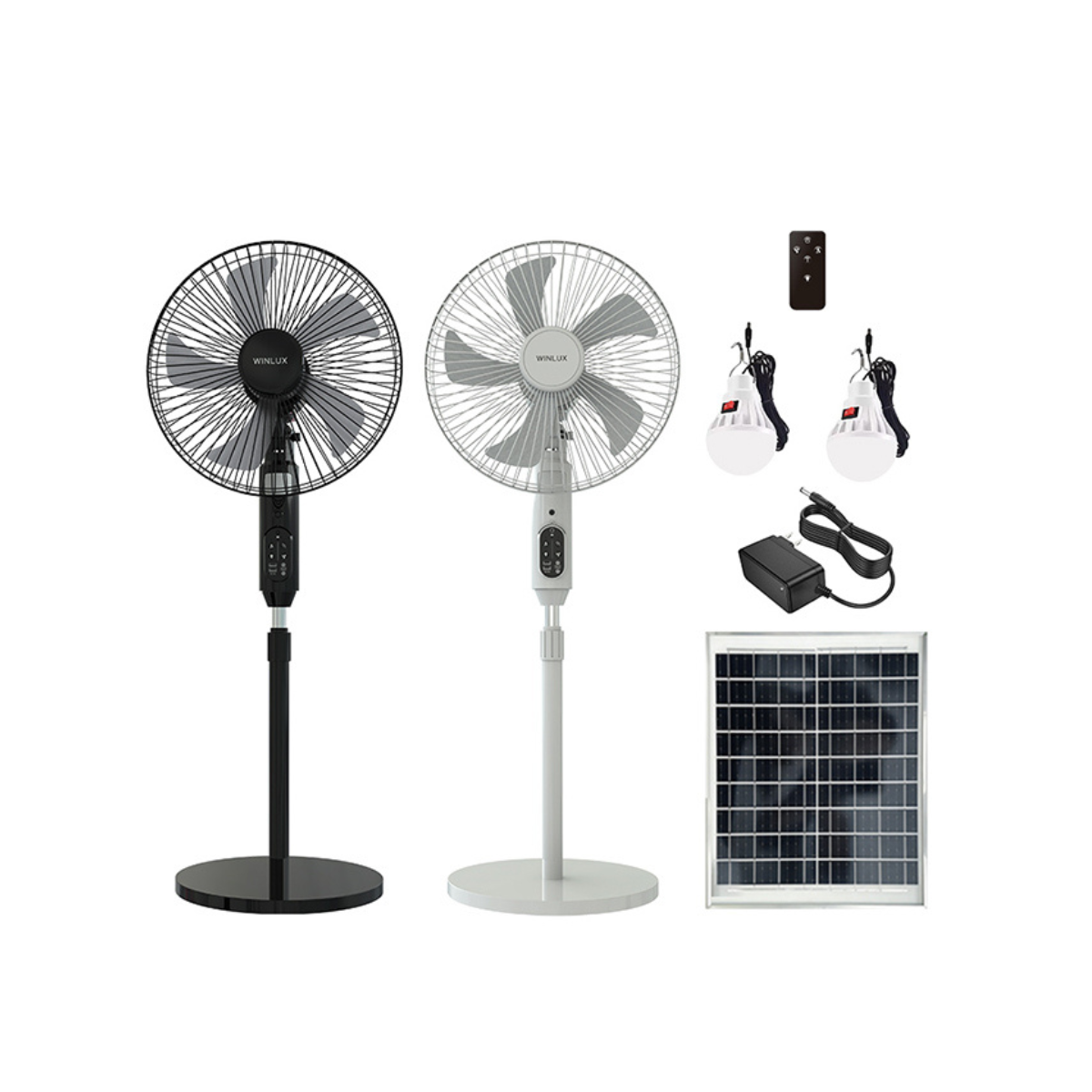

Two Models Available

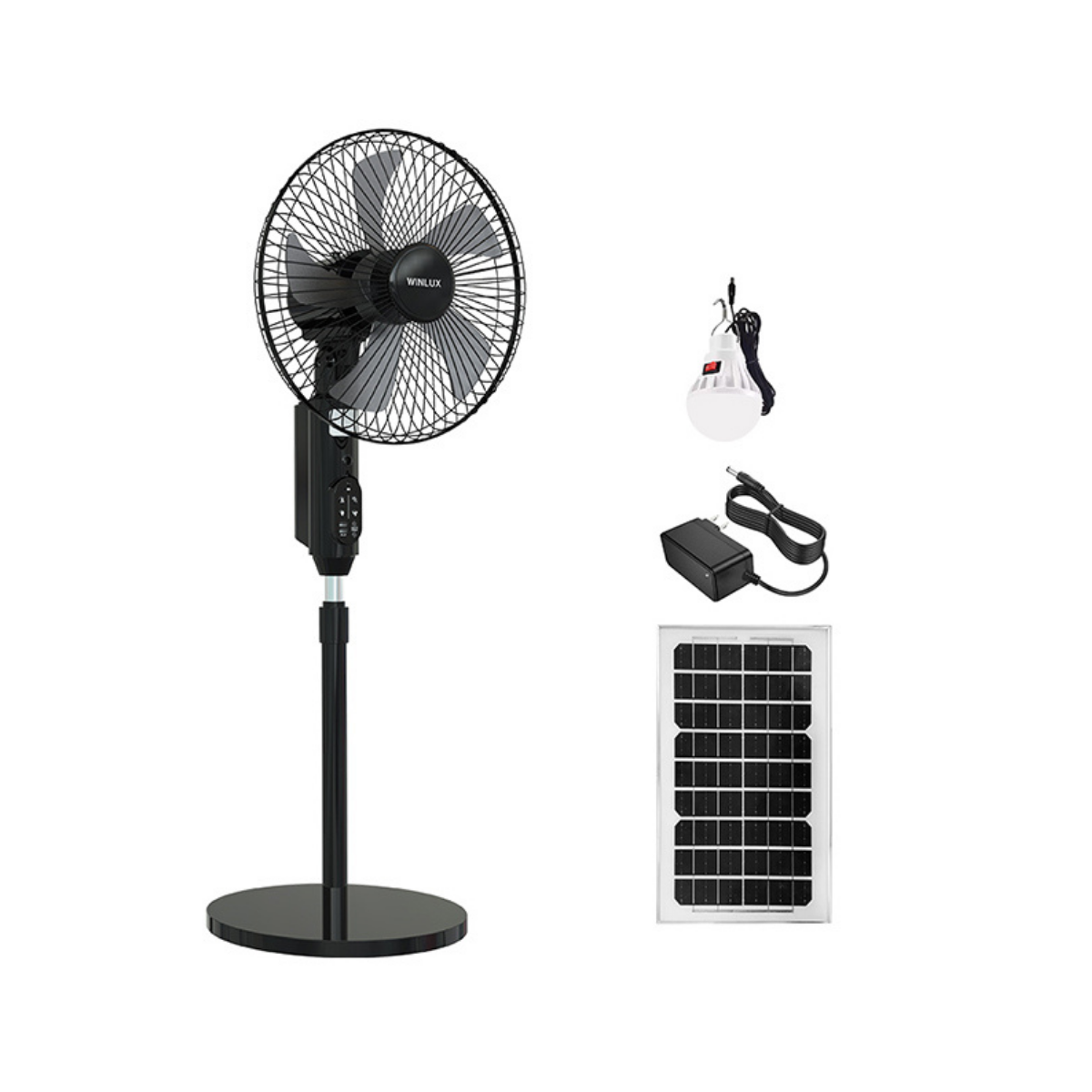

WINLUX FN-01
A compact version designed for everyday requirements.
Li-ion battery: 7.4 V / 4 Ah
Energy capacity: 29.6 Wh
Monocrystalline solar panel: 10 W
Fan power: 13 W
Misting tank: 300 ml
Lighting: 300 lm
Dual USB-A output
DC5521 outputs

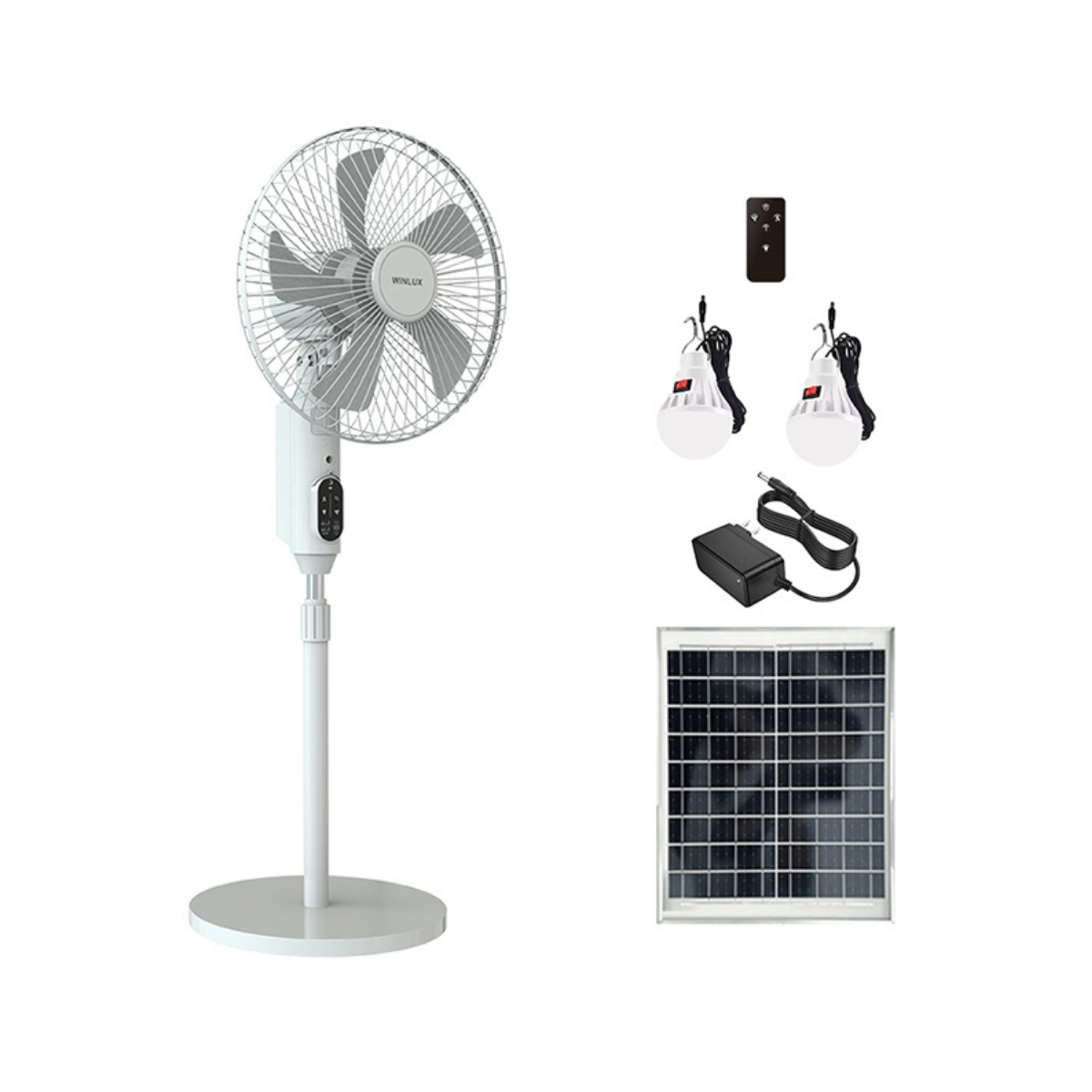

WINLUX FN-02
An enhanced version offering twice the battery capacity and additional equipment.
Li-ion battery: 7.4 V / 8 Ah
Energy capacity: 59.2 Wh
Monocrystalline solar panel: 14 W
Fan power: 13 W
Misting tank: 300 ml
Lighting: 300 lm
Dual USB-A output
DC5521 outputs
Remote control included

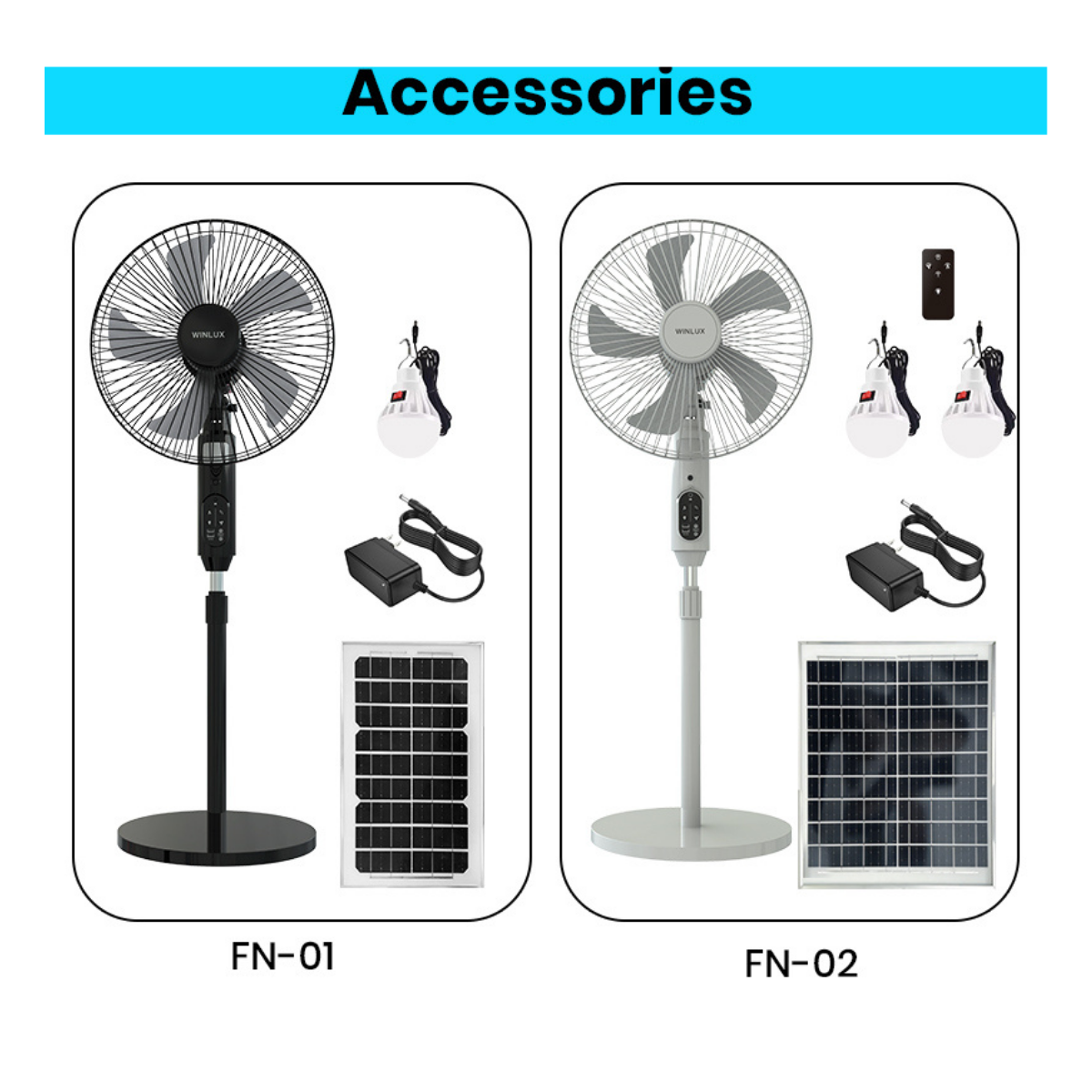

More comprehensive accessory package
Main Technical Specifications
Fan power: 13 W
Speed settings: 4 levels + Natural Wind mode
Timer: 1 to 4 hours
Water tank capacity: 300 ml
Mist output: 40 ml/h
Misting modes: Continuous / Intermittent
Lighting: 2835 LED – 6 LEDs
Luminous flux: 300 lm
Color temperature: 5700 K
CRI: Ra > 70
USB outputs: 2 × USB-A, 5 V / 2 A
DC connectors: 2 × DC5521, 7.4 V input/output
Charging temperature: 0 to +50°C
Discharging temperature: -20 to +60°C
Main material: PP
Impact resistance: IK04

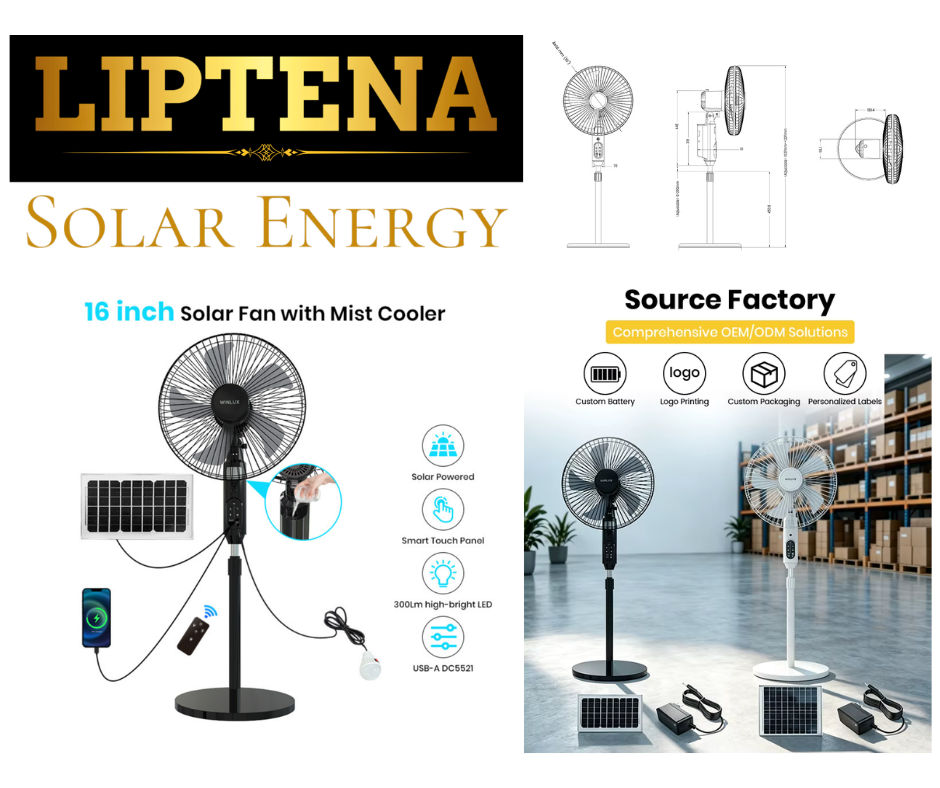

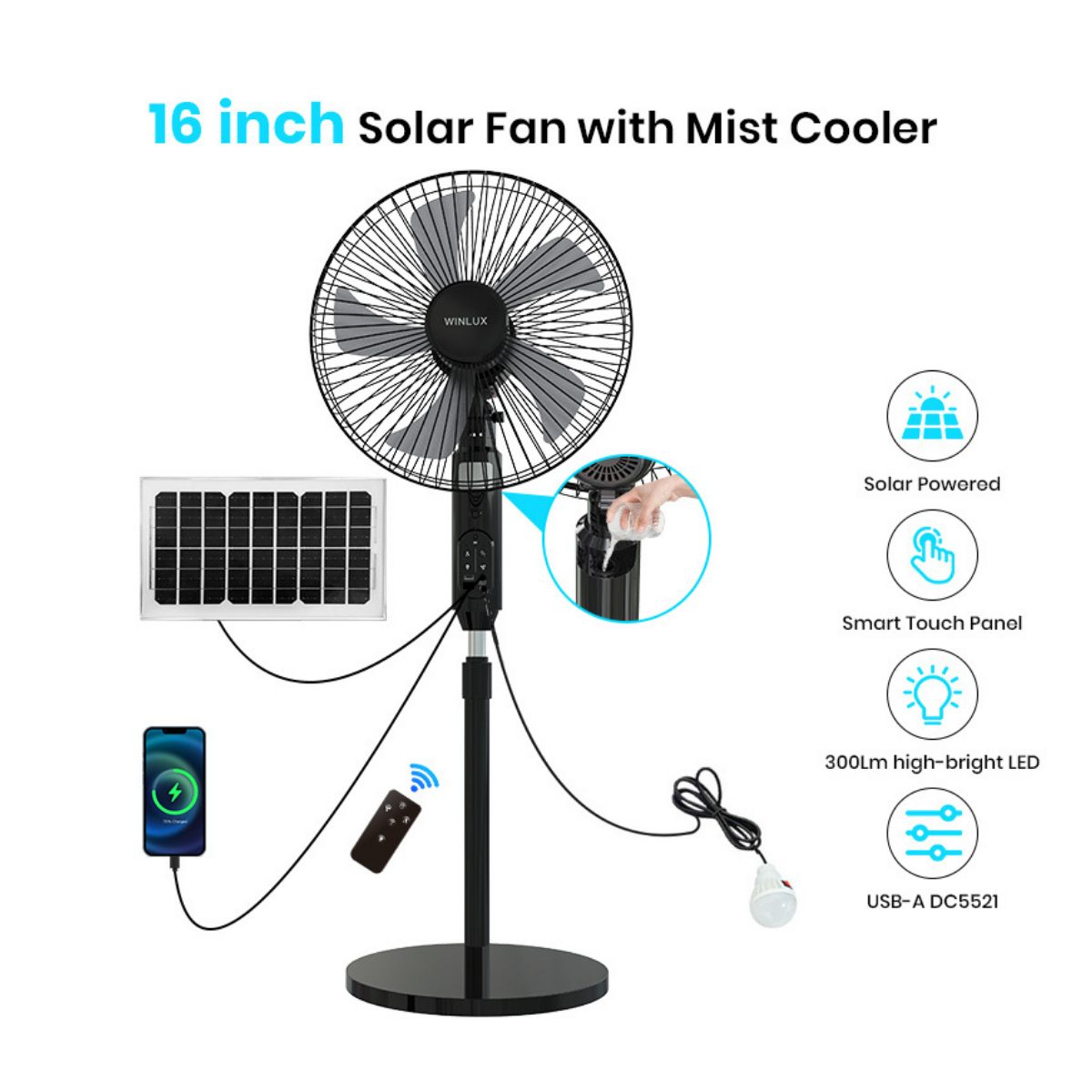

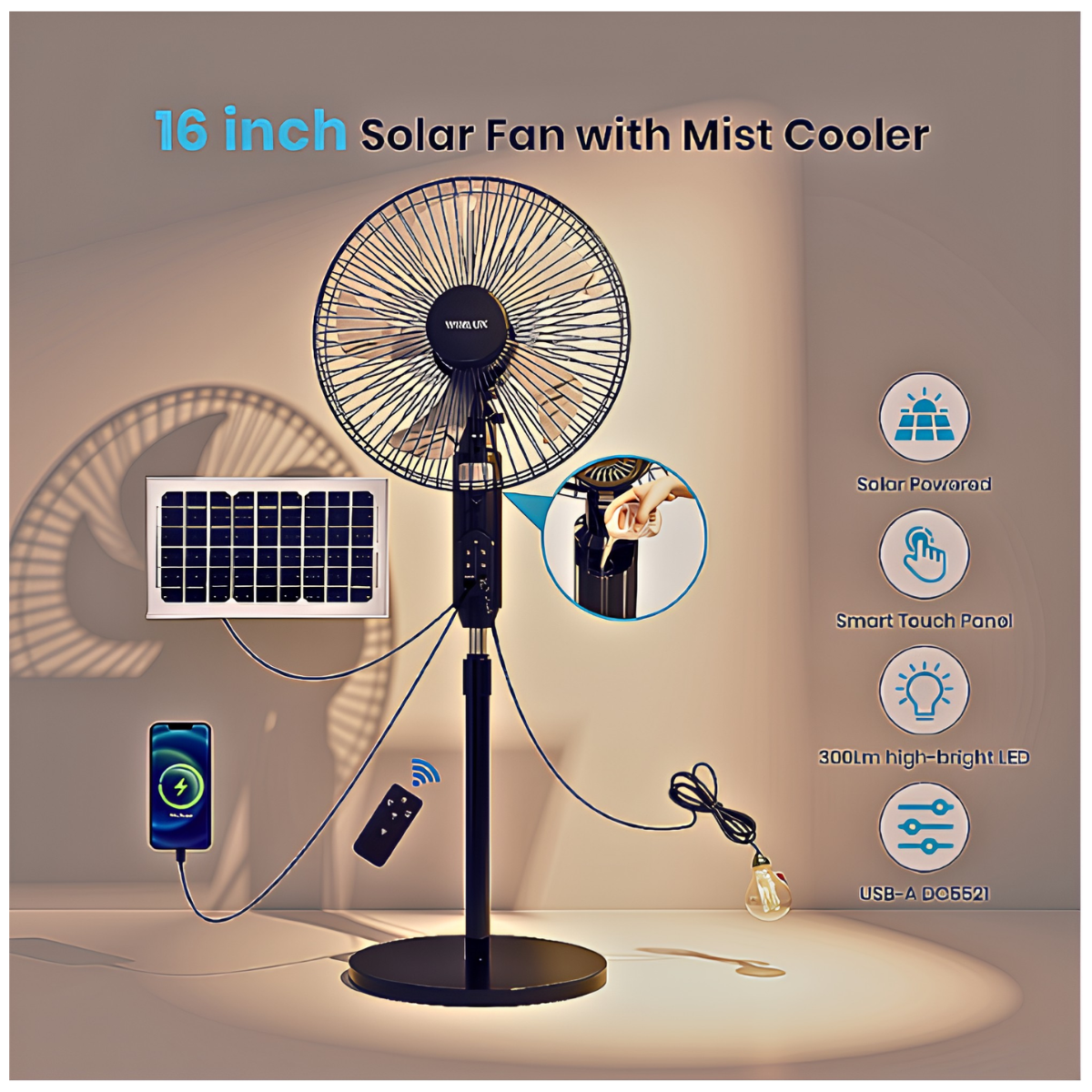

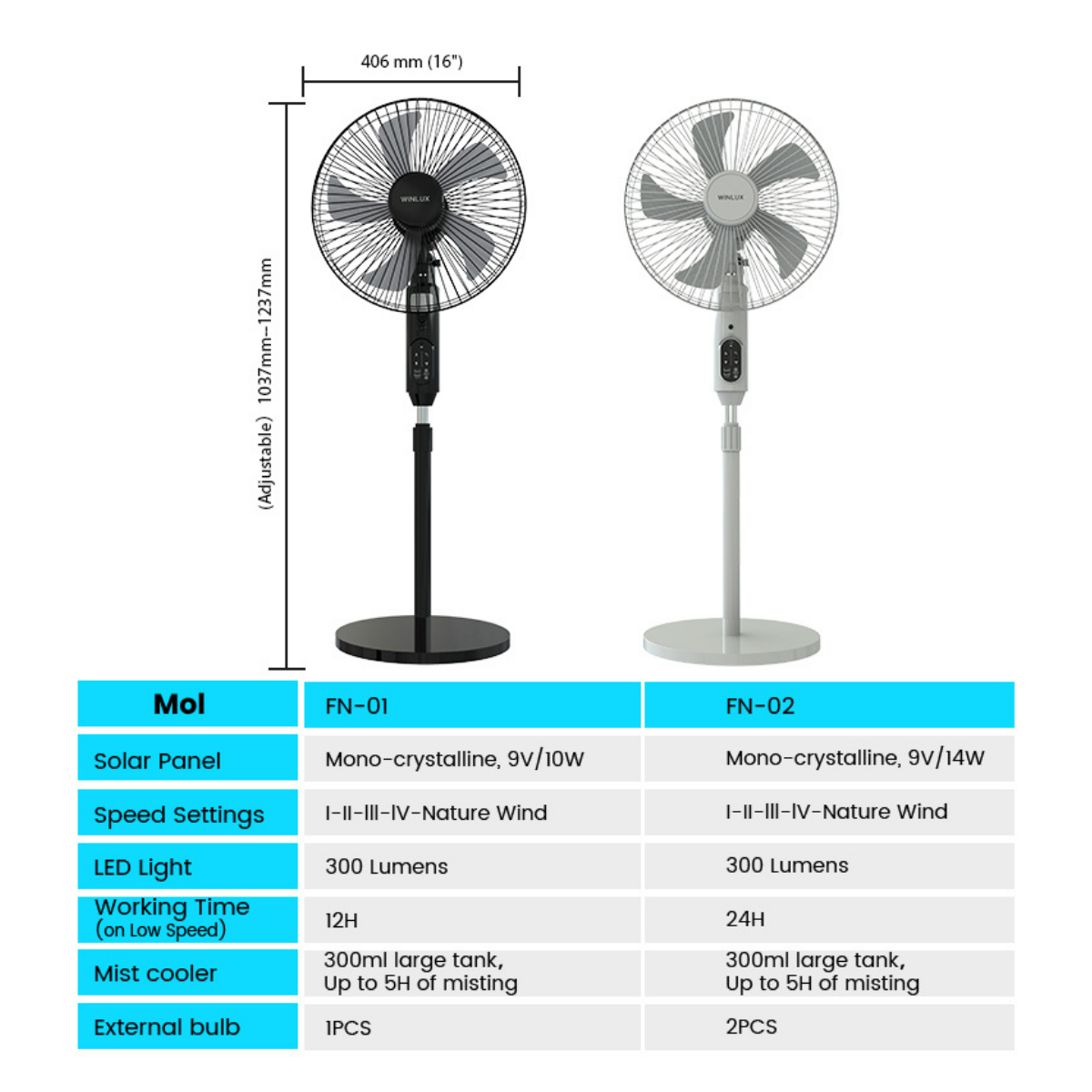

Fan diameter: approximately 406 mm / 16"
Adjustable height: approximately 1,037 to 1,237 mm
Retail price: €359
Professional price: €119 (excl. tax)
Distributor price (50+): €104 (excl. tax)
Wholesaler price (100+): €99 (excl. tax)
Importer price (200+): €94 (excl. tax)
Solar Energy for Everyday Comfort
The WINLUX S / M combines cooling comfort, lighting, and energy independence in one multifunctional device.
A particularly relevant solution for users looking for greater energy independence without compromising everyday comfort.
LIPTENA SOLAR ENERGY – Solar energy, wherever you need it.
