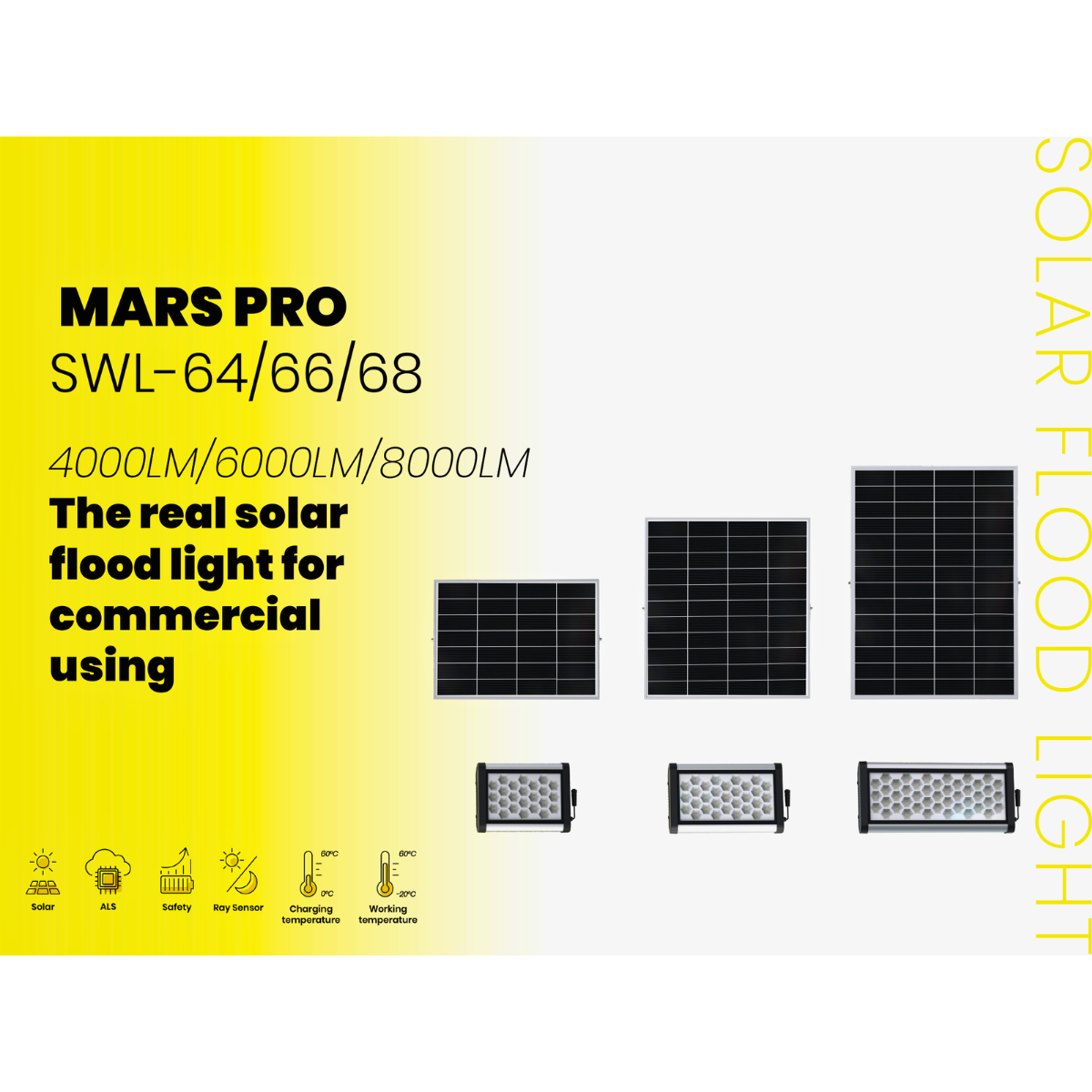

PROFESSIONAL SOLAR FLOODLIGHT MARS PRO SWL-64 / SWL-66 / SWL-68

High-power solar lighting from 4,000 to 8,000 lumens for commercial and industrial sites

Illuminate your outdoor areas efficiently without connecting to the electrical grid.

The MARS PRO SWL-64, SWL-66 and SWL-68 range is designed to meet the demanding lighting needs of businesses, warehouses, logistics platforms, car parks, façades, loading areas and industrial facilities.

Available in three light output levels, 4,000, 6,000 or 8,000 lumens, it combines high-performance OSRAM LEDs, a high-efficiency monocrystalline solar panel and a large-capacity LiFePO₄ battery.

Fully autonomous, the MARS PRO floodlight operates using solar energy. It requires no trenching, underground electrical wiring or connection to the power grid.

It is therefore particularly suitable for remote sites, existing buildings and projects requiring a fast, reliable and cost-effective installation.

A GENUINE PROFESSIONAL SOLAR LIGHTING SOLUTION

Unlike decorative or supplementary solar floodlights, the MARS PRO range delivers a level of brightness suitable for commercial, logistics and industrial applications.

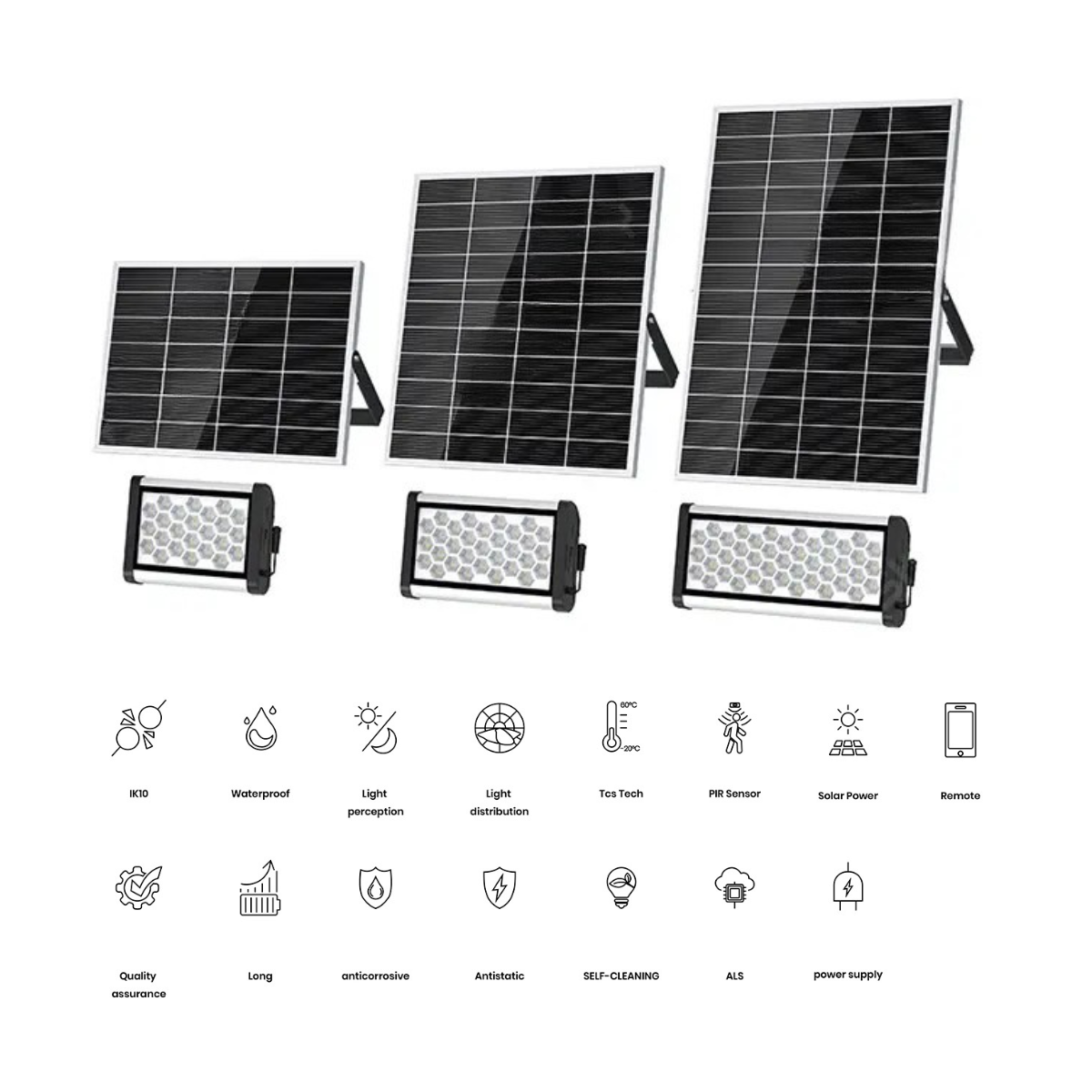

Three versions are available:

• SWL-64: 4,000 lumens
• SWL-66: 6,000 lumens
• SWL-68: 8,000 lumens

With a luminous efficiency of up to 160 lm/W and OSRAM 3030 LEDs, these floodlights provide powerful and uniform 5,700 K white lighting.

They help improve visibility, safety and user comfort in outdoor areas, even where no nearby electrical supply is available.

HIGH AUTONOMY AND INTELLIGENT ENERGY MANAGEMENT

Each model is equipped with a LiFePO₄ battery, a technology recognised for its stability, long service life and performance in professional solar lighting systems.

Storage capacity according to the model:

• SWL-64: 256 Wh
• SWL-66: 384 Wh
• SWL-68: 512 Wh

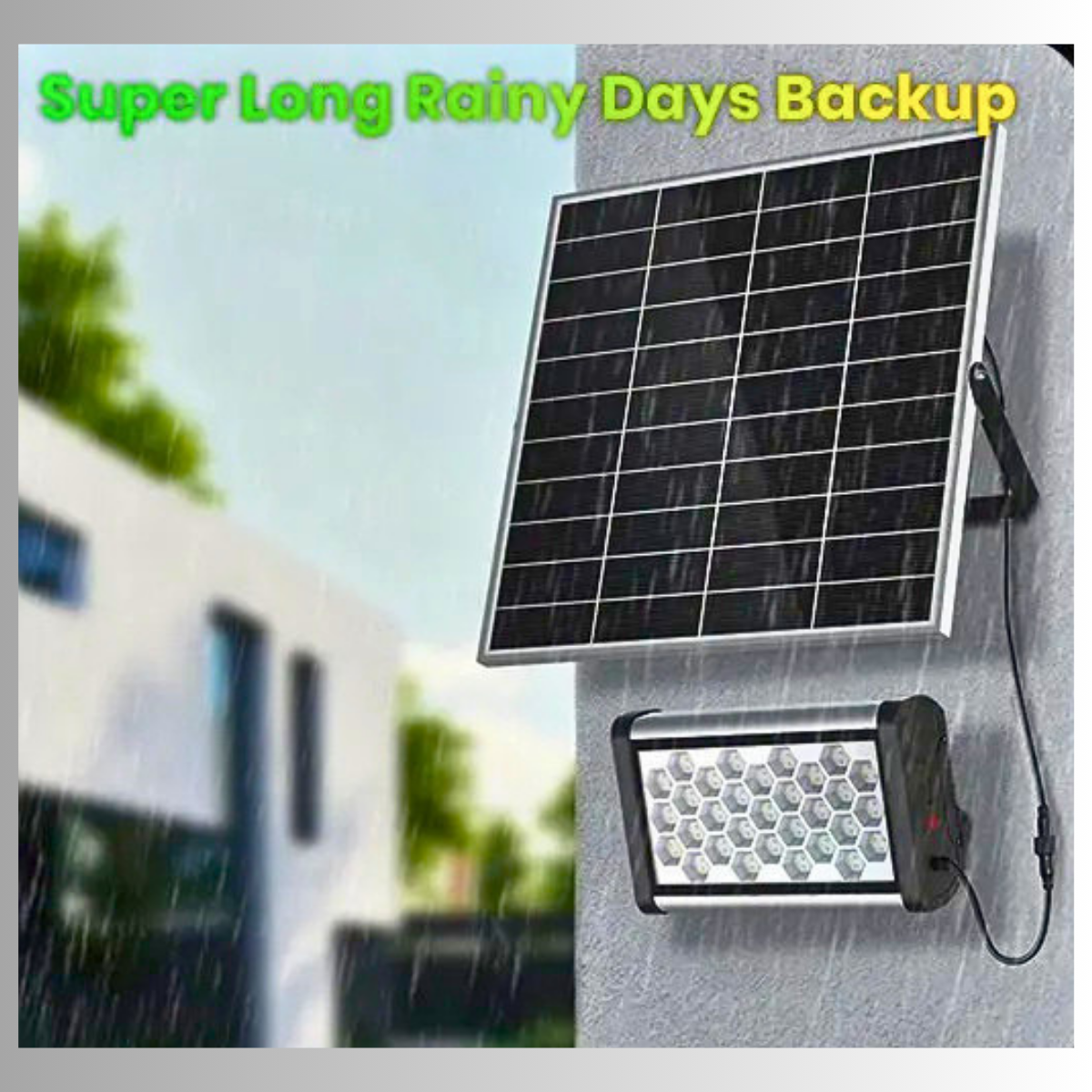

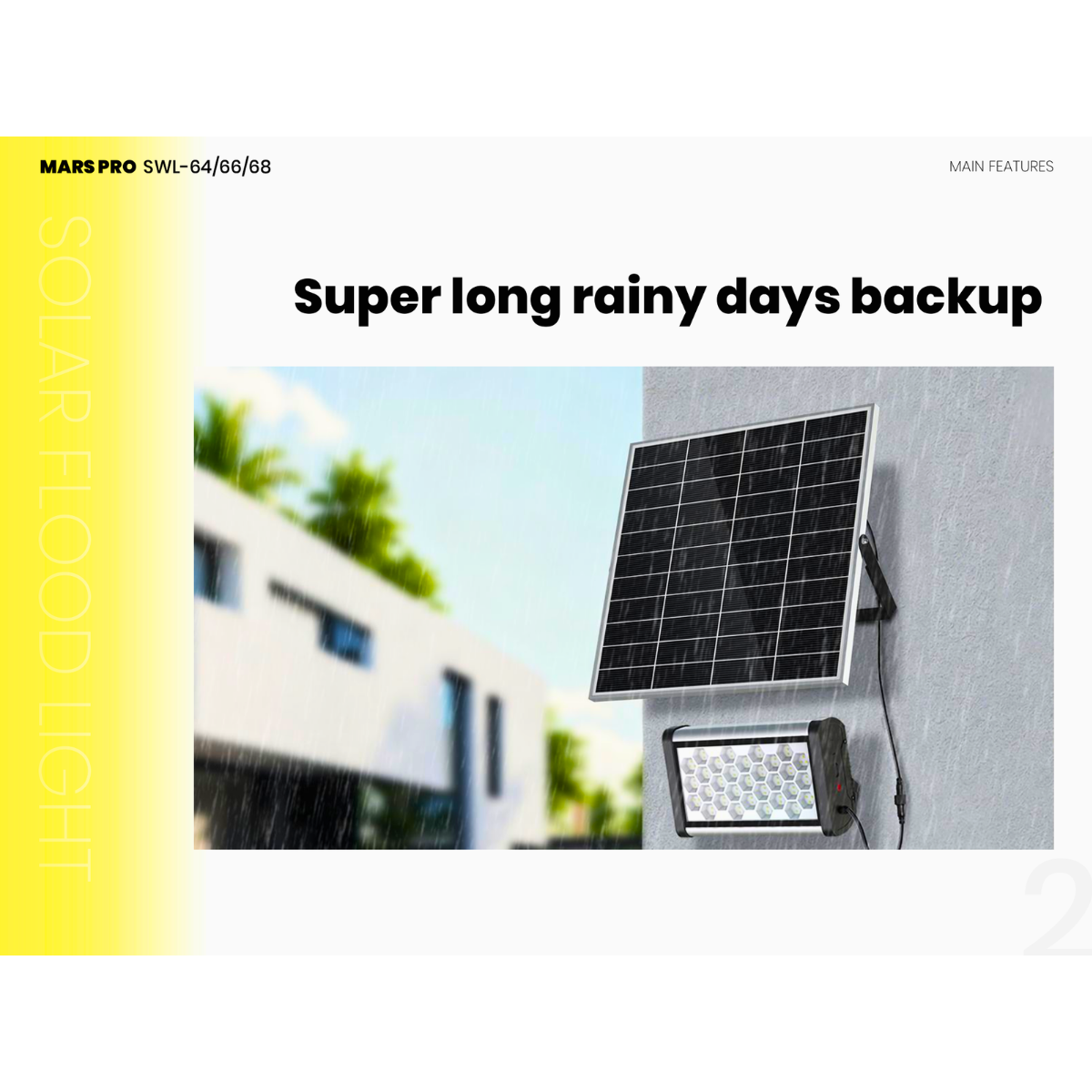

ALS – Adaptive Lighting System – technology optimises the use of available energy to extend lighting performance during periods of low sunlight or poor weather conditions.

The BMS – Battery Management System – monitors and optimises battery operation. TCS – Temperature Control System – technology helps protect the system against significant temperature fluctuations.

The combination of ALS, TCS and BMS technologies improves autonomy, safety, reliability and long-term energy performance.

HIGH-EFFICIENCY MONOCRYSTALLINE SOLAR PANEL

The MARS PRO range is equipped with monocrystalline solar panels offering a stated efficiency of 25%.

Solar panel power according to the model:

• SWL-64: 30 W
• SWL-66: 47 W
• SWL-68: 60 W

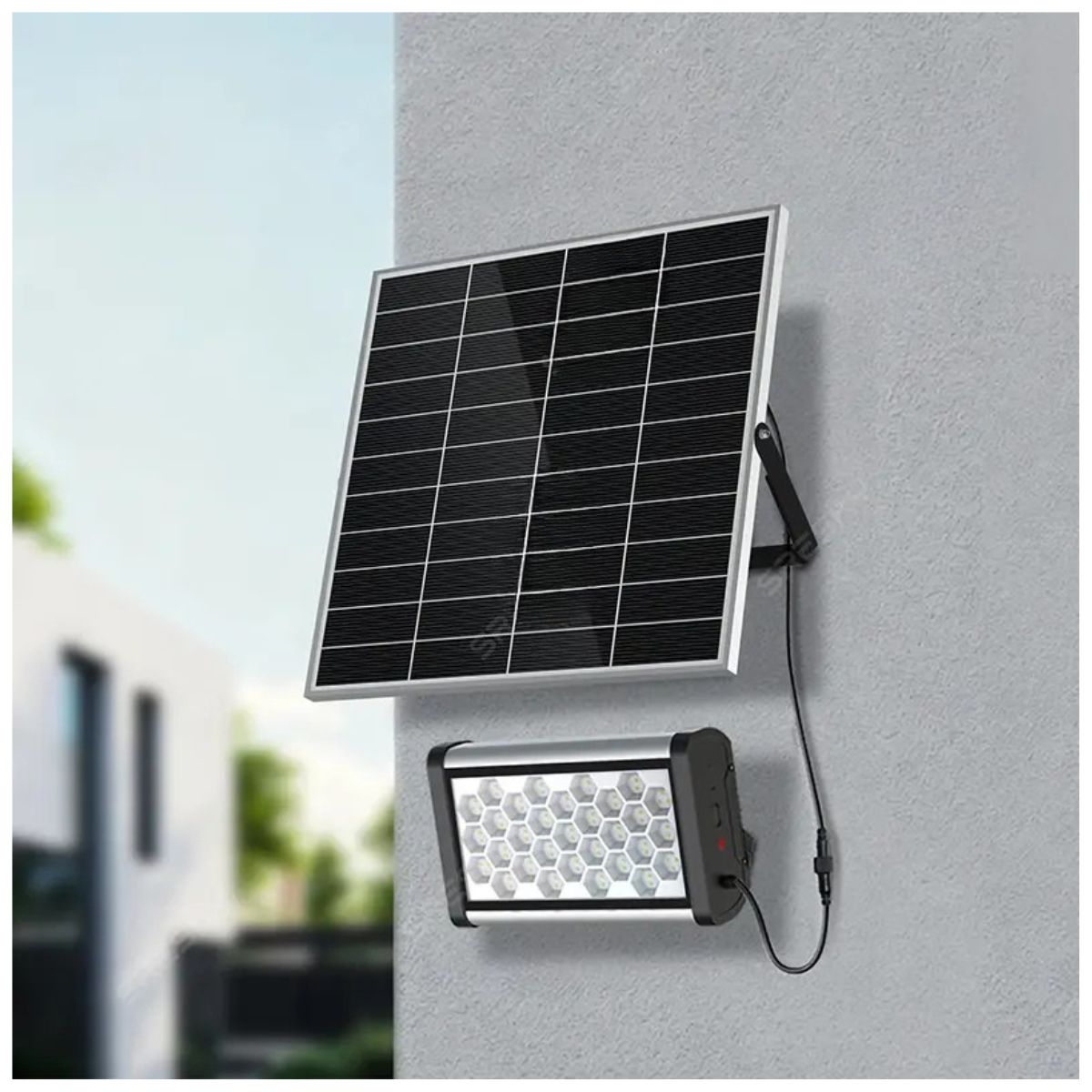

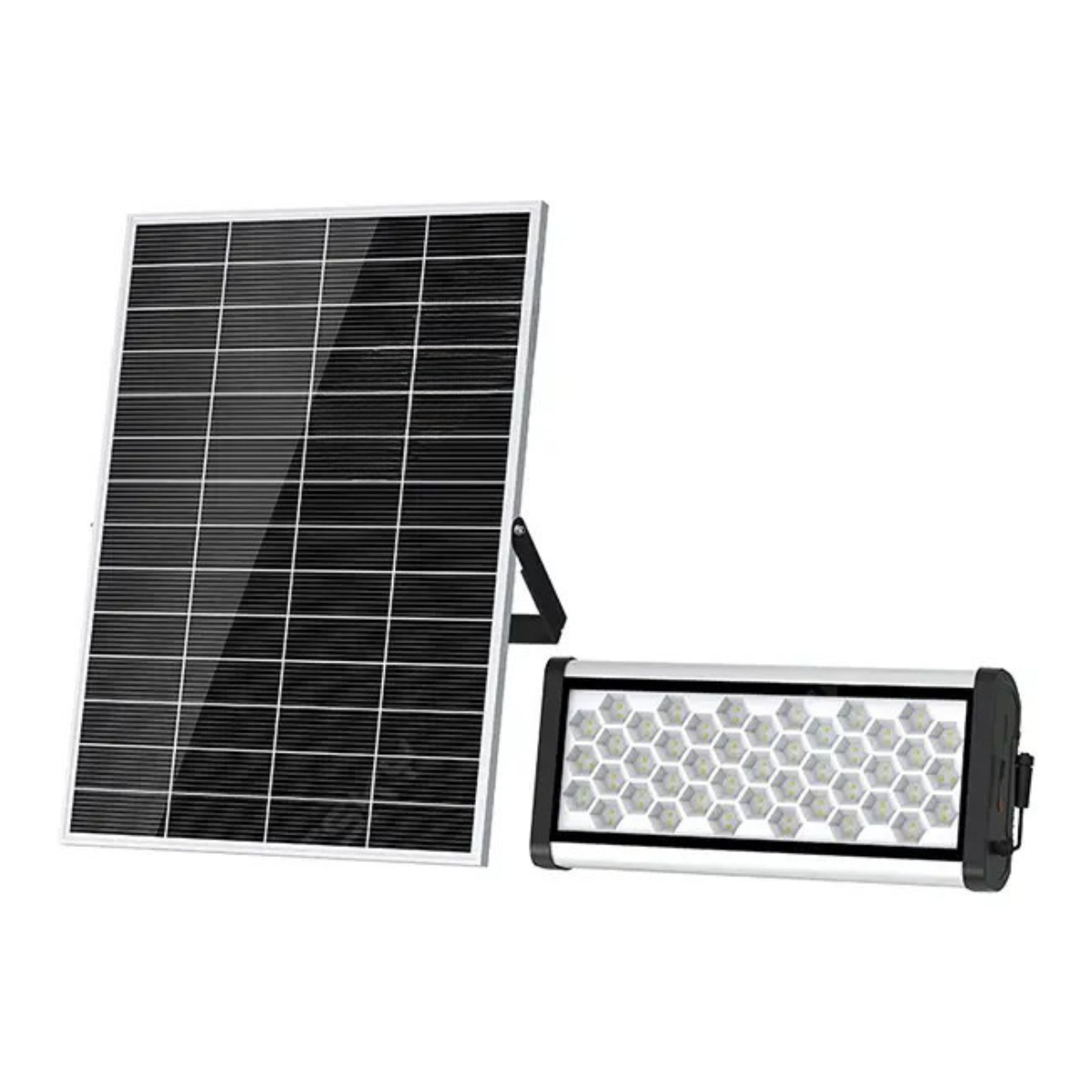

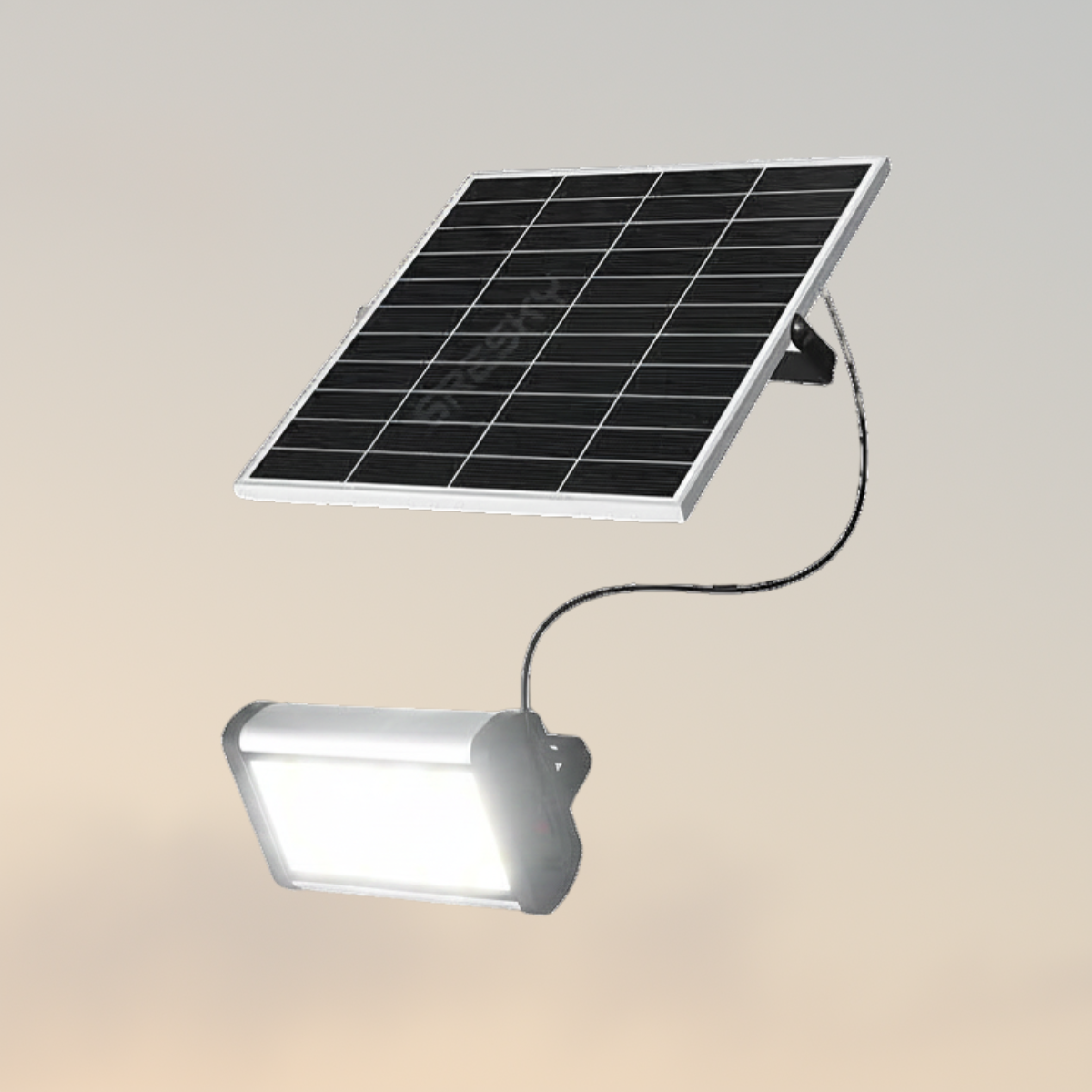

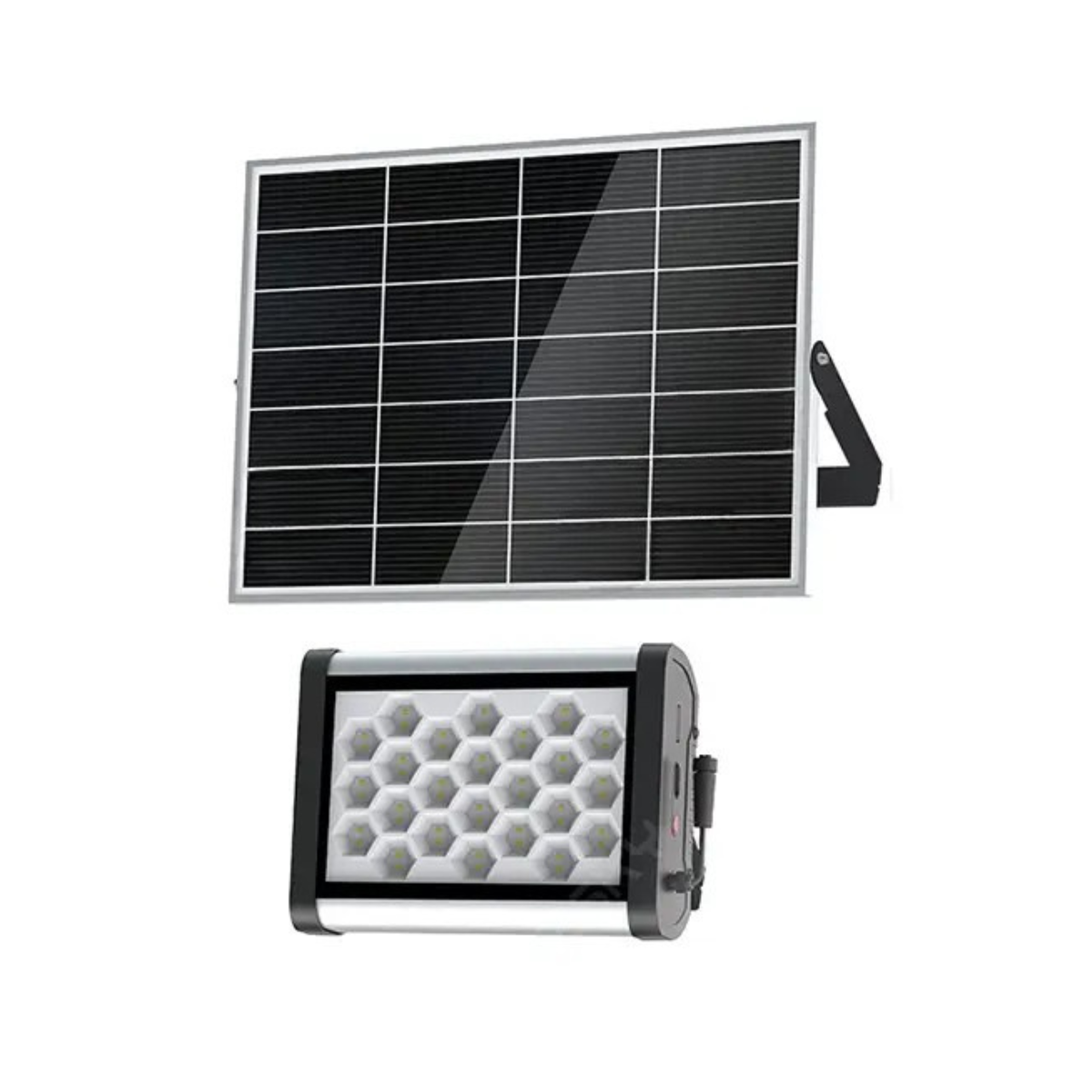

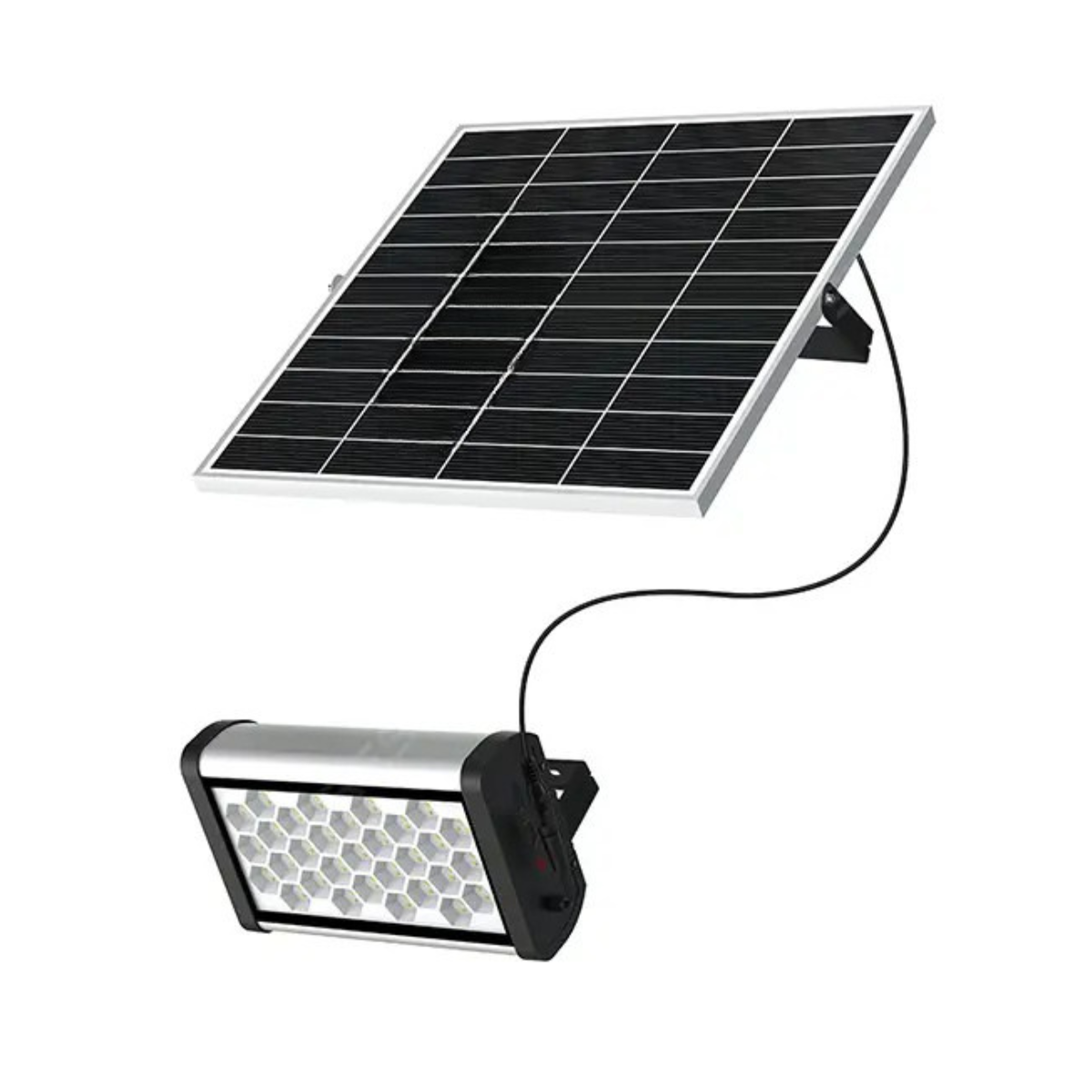

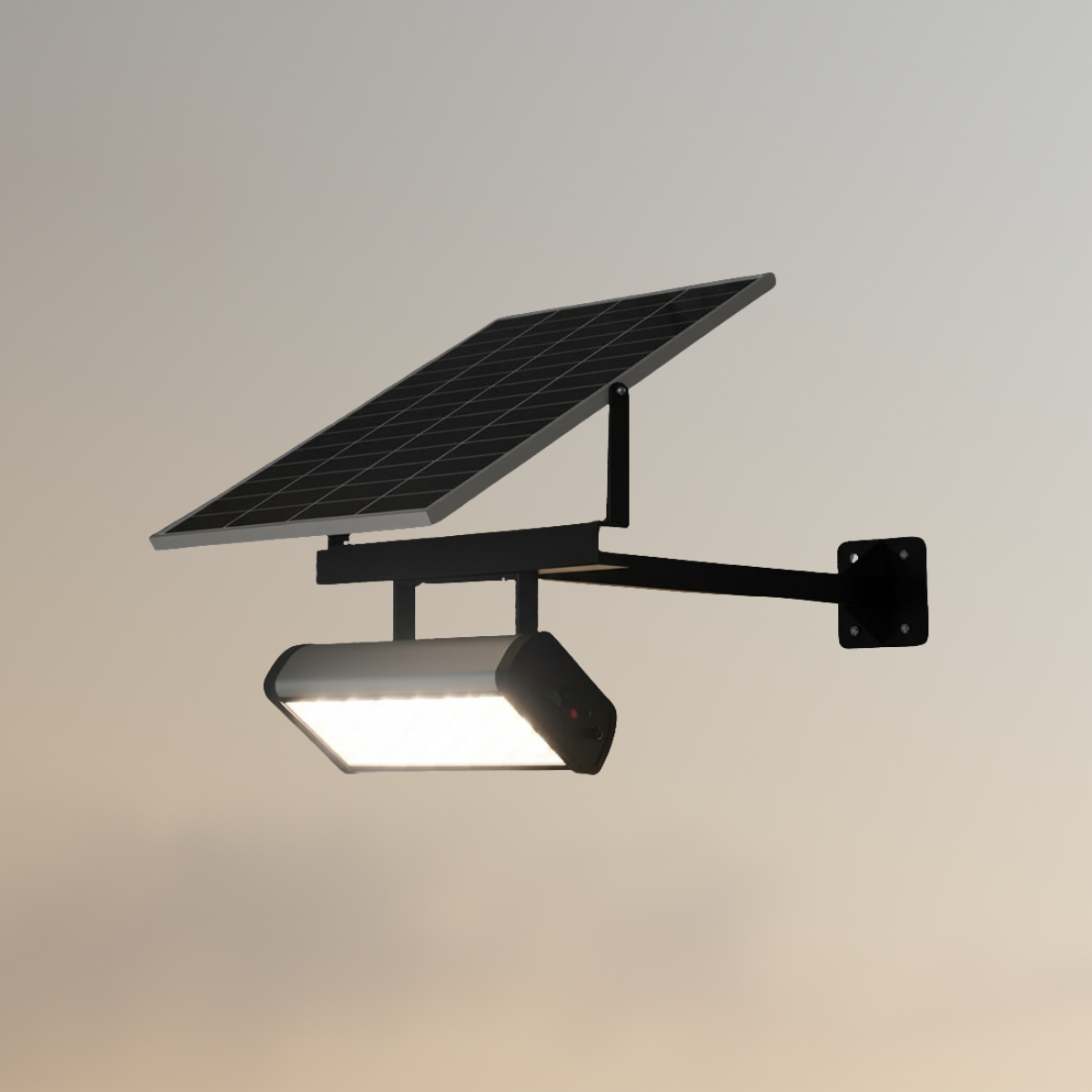

The independent solar panel can be positioned towards the area receiving the best sunlight exposure, while the floodlight can be directed precisely towards the surface to be illuminated.

This separate configuration provides greater installation flexibility than an all-in-one solar light. It is particularly suitable for façades, warehouses, loading bays, covered areas and buildings with orientation constraints.

THREE LIGHTING MODES UNTIL DAWN

The floodlight offers three operating levels, allowing the light output and energy consumption to be adapted to the specific needs of the site:

• M1 mode: 100% brightness until dawn
• M2 mode: 75% brightness until dawn
• M3 mode: 50% brightness until dawn

An LED indicator allows the battery charge level to be checked quickly:

• Green indicator: capacity equal to or above 70%
• Orange indicator: capacity between 30% and 70%
• Red indicator: capacity below 30%

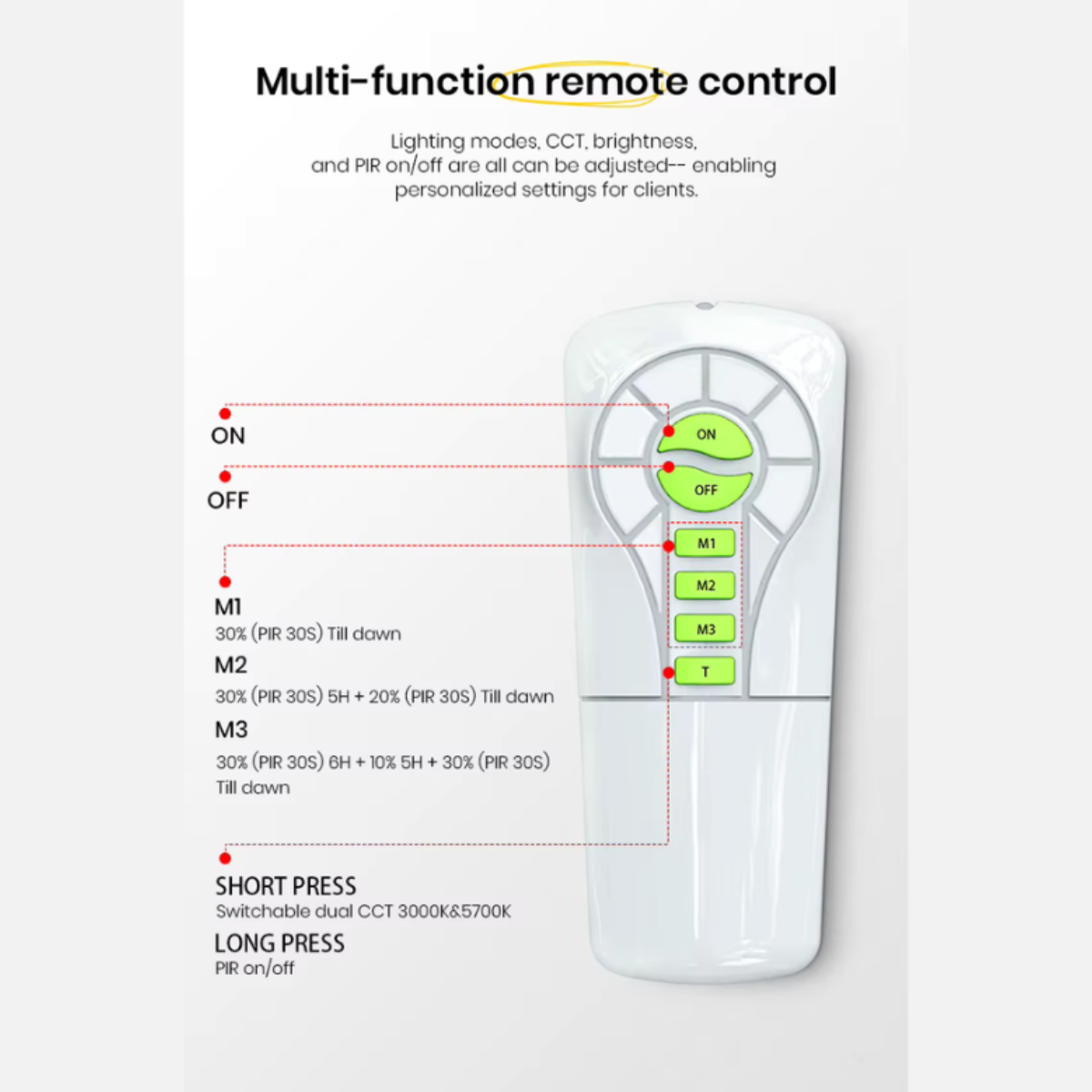

A customisable remote control may also be available. It can be used to program full-power lighting for 4, 5 or 6 hours before the system automatically returns to the previously selected mode.

DESIGNED FOR DEMANDING OUTDOOR ENVIRONMENTS

The aluminium housing provides effective heat dissipation and the level of durability required for professional installations.

With an IP66 protection rating, the floodlight is protected against dust and powerful water jets. Its IK08 impact resistance rating provides additional protection against shocks and impacts.

Its operating temperature range, from –20°C to +60°C, makes it suitable for use in a wide variety of climates, in both Europe and Africa.

RECOMMENDED APPLICATIONS

The MARS PRO range is suitable for lighting:

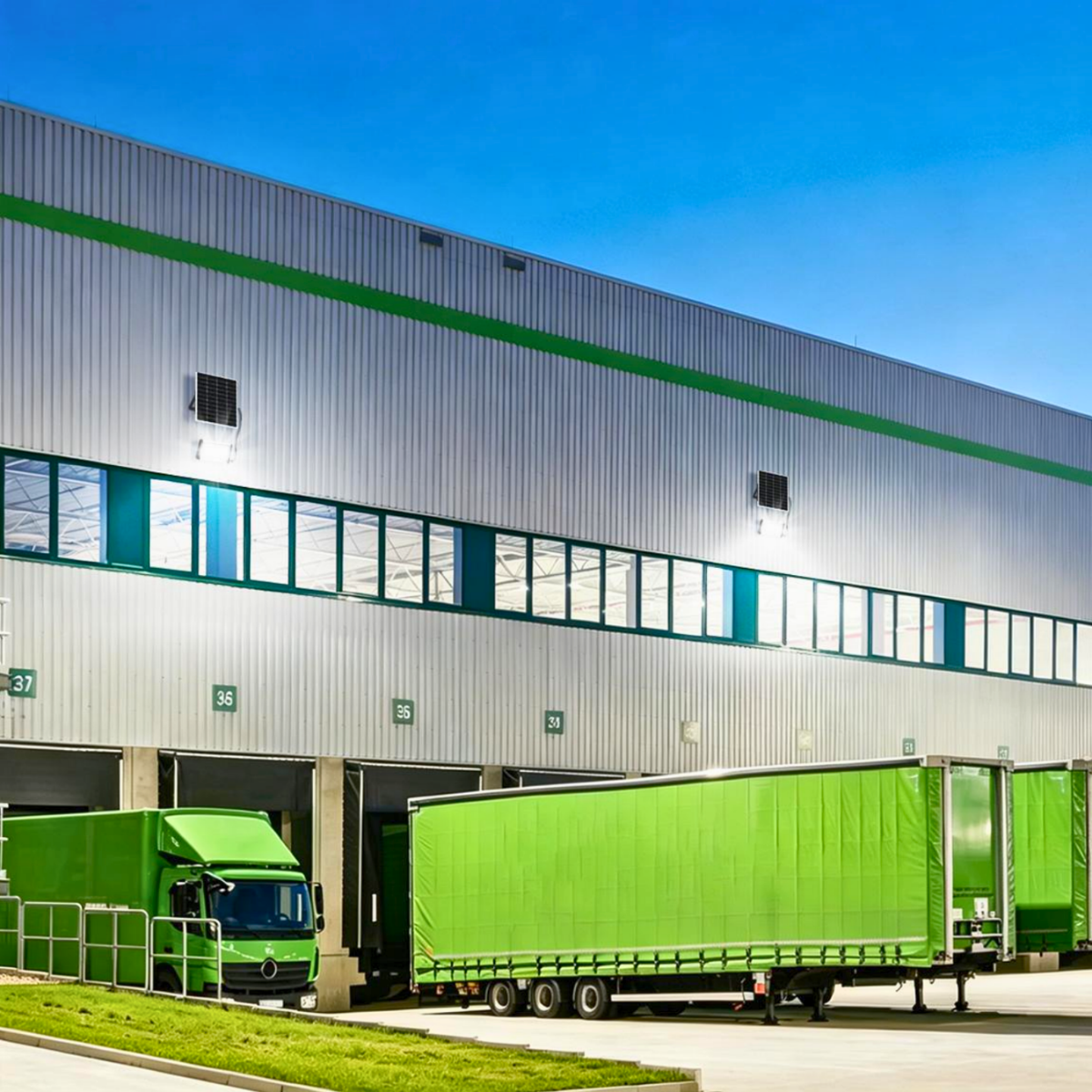

• Warehouses and industrial buildings

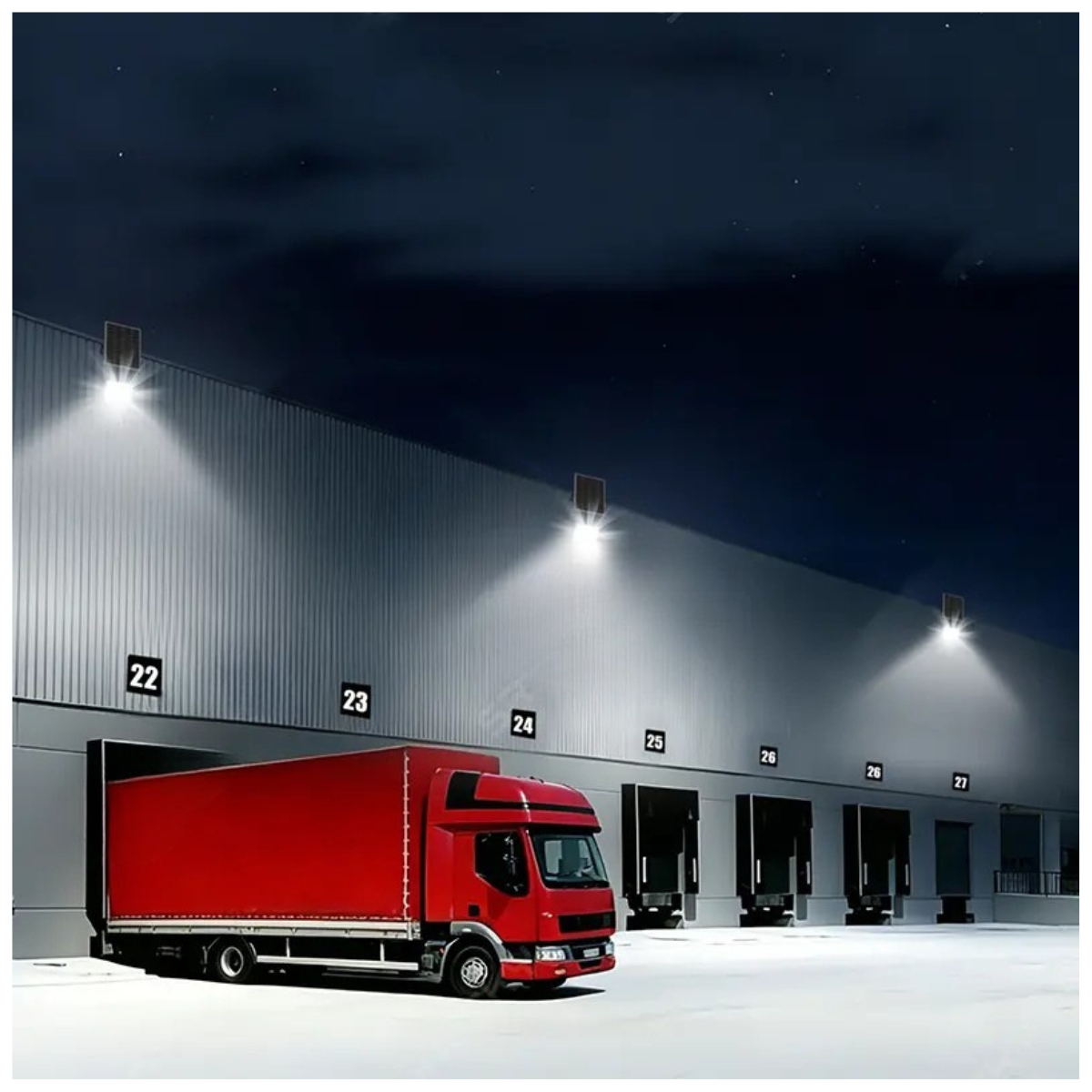

• Logistics platforms and loading areas

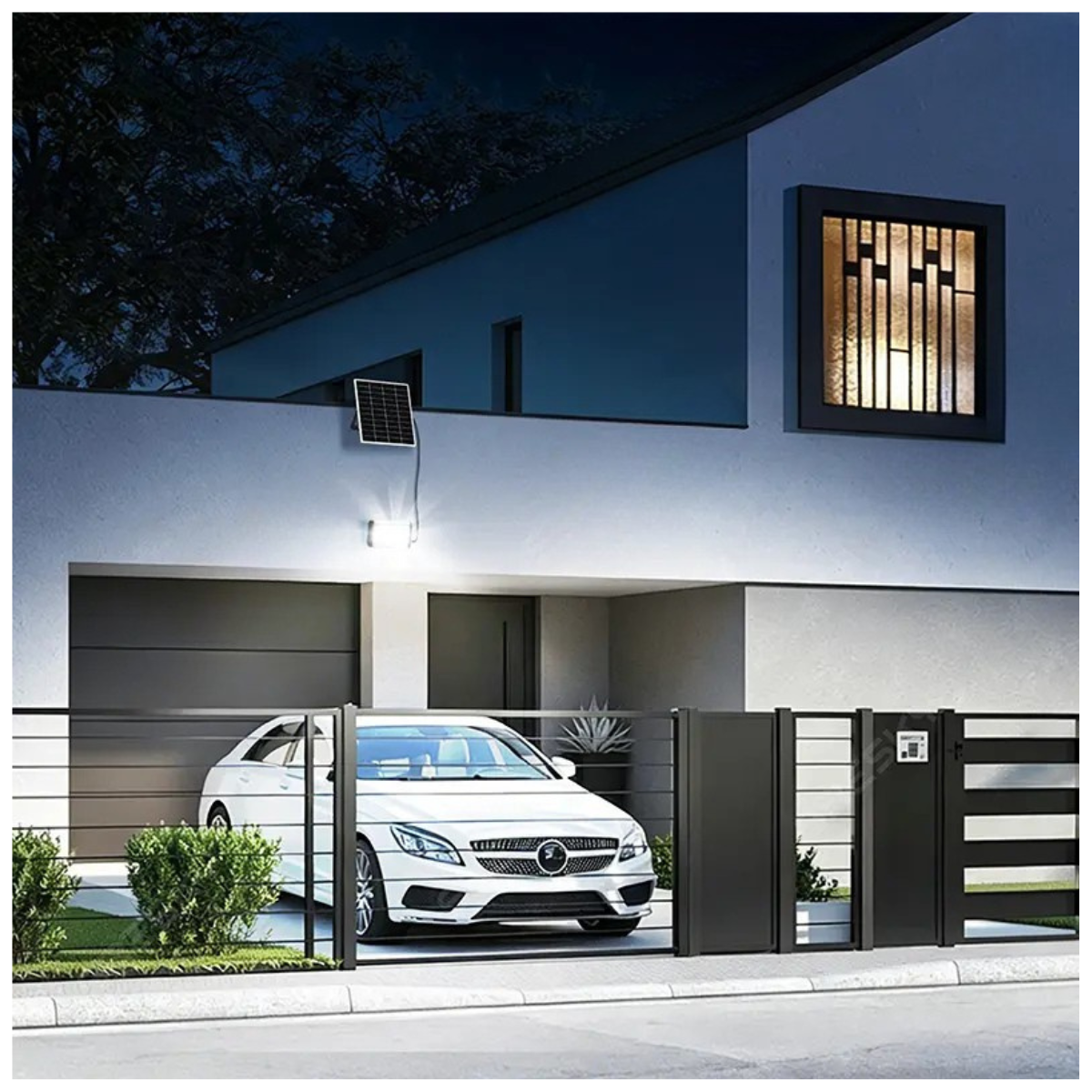

• Car parks and private access roads

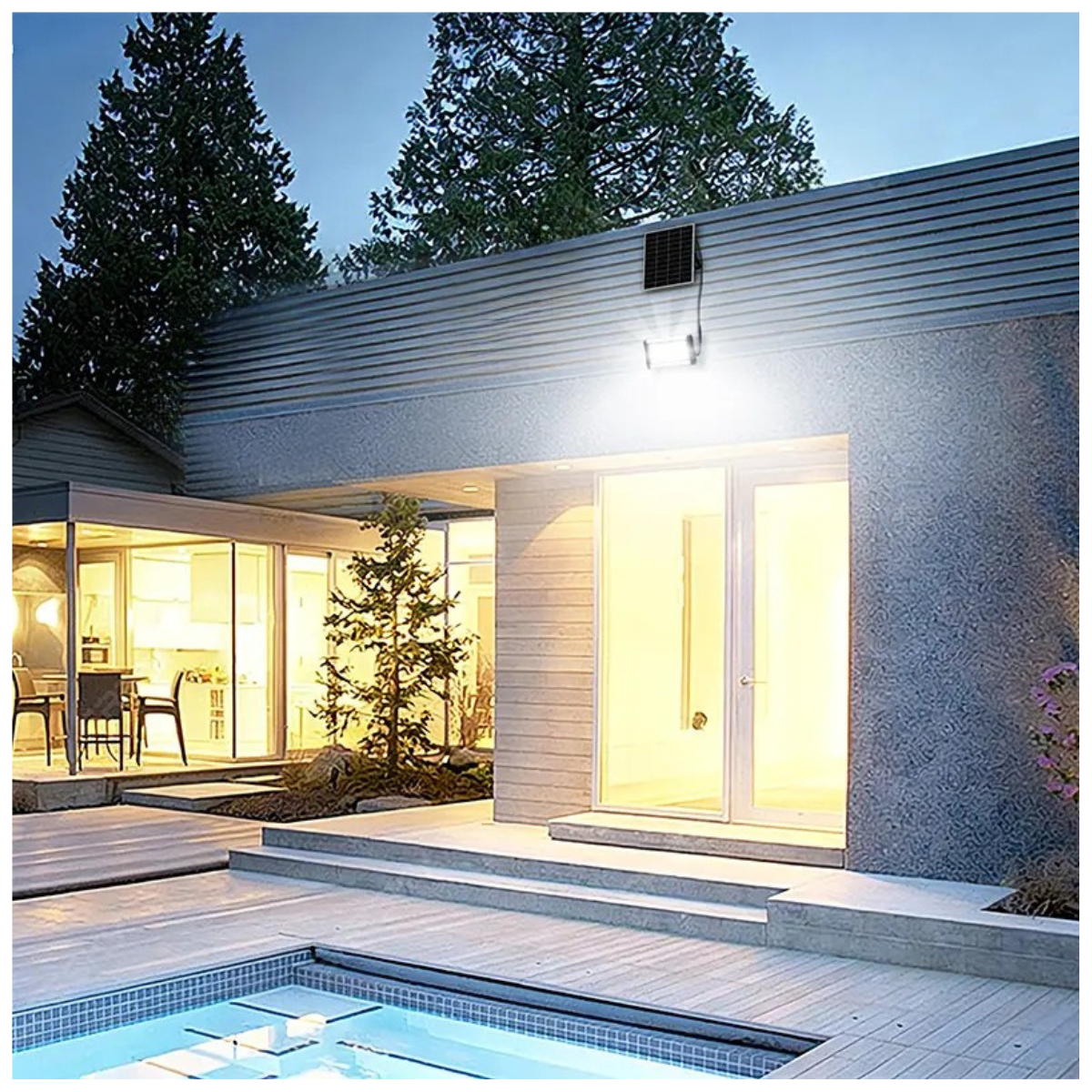

• Commercial and industrial façades
• Workshops and technical areas
• Construction sites and operational bases
• Agricultural facilities
• Hotels, resorts and campsites

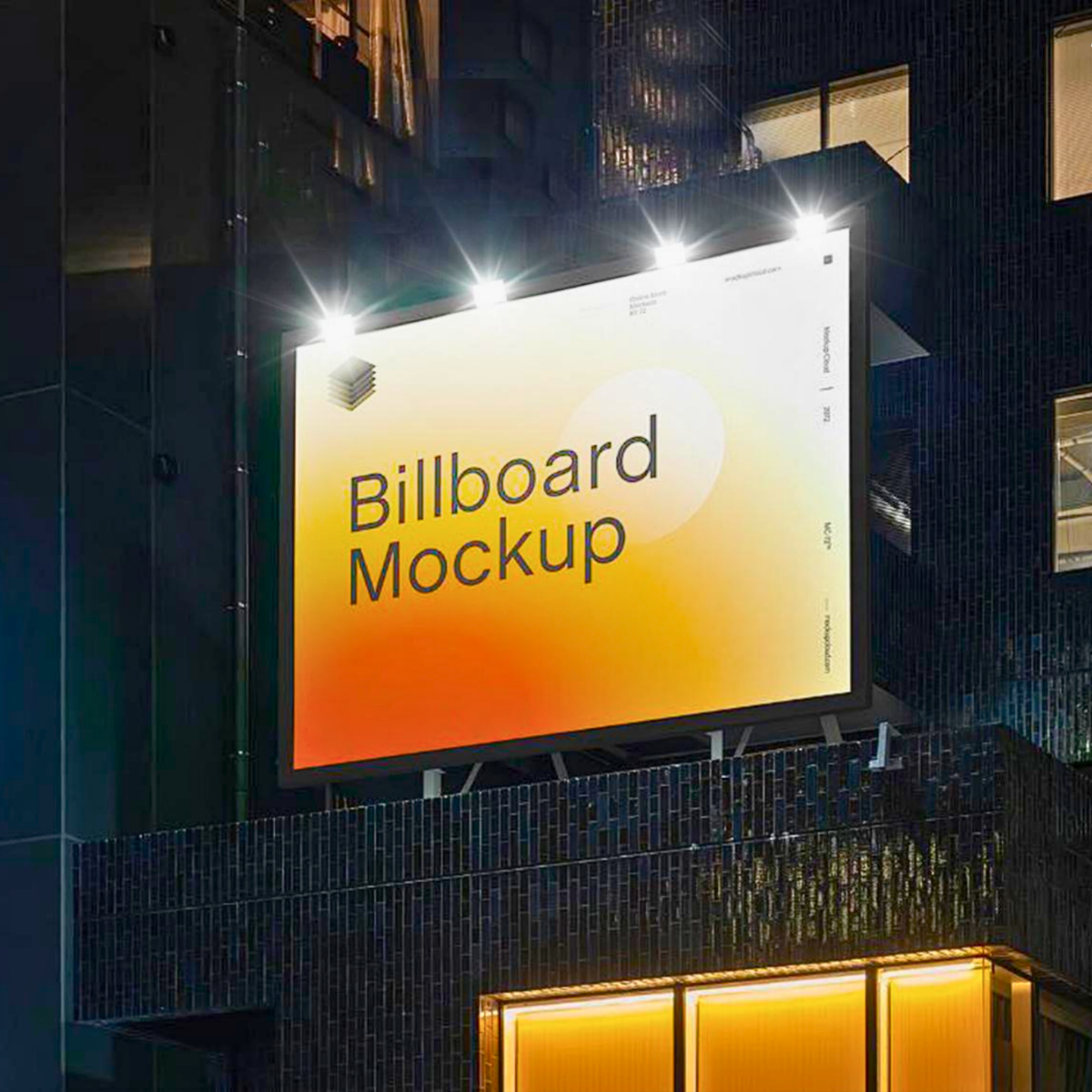

• Billboards and signage
• Courtyards, perimeters and security areas
• Remote sites or locations not connected to the power grid

MAIN BENEFITS

Up to 8,000 lumens

High light output suitable for large areas and commercial or industrial applications.

100% autonomous operation

The system generates, stores and uses its own energy without relying on the electrical grid.

Simplified installation

No trenching, underground wiring or electrical connection is required.

Independent solar panel

The solar panel and floodlight can be positioned separately to optimise both charging performance and light distribution.

High-capacity LiFePO₄ battery

A stable and durable energy storage technology suitable for regular charging and discharging cycles.

Intelligent energy management

ALS, TCS and BMS technologies optimise autonomy, battery protection and overall system reliability.

IP66 and IK08 protection

A robust design for outdoor installations exposed to weather, dust and professional operating conditions.

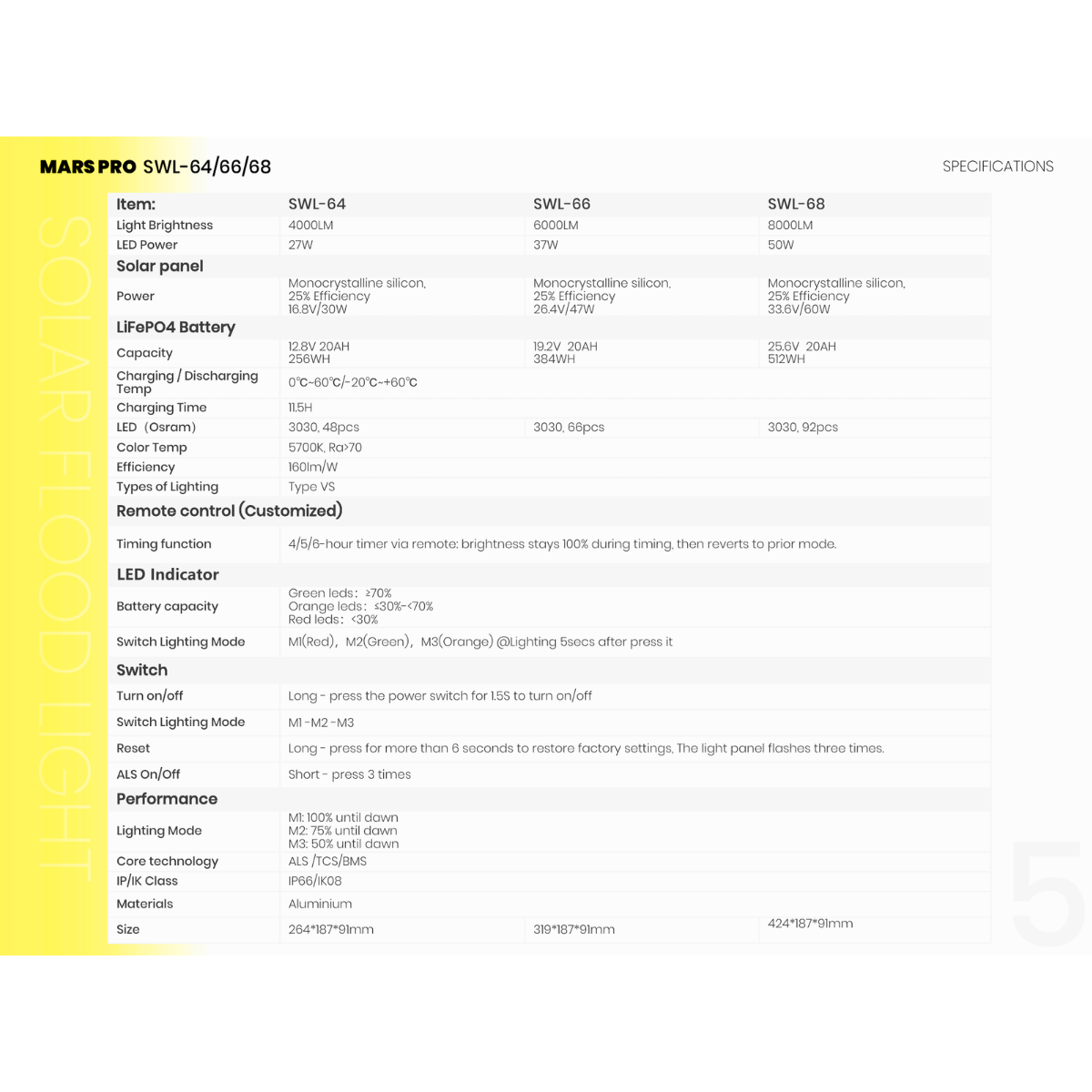

TECHNICAL SPECIFICATIONS

MARS PRO SWL-64

• Light output: 4,000 lumens
• LED power: 27 W
• Light source: 48 OSRAM 3030 LEDs
• Luminous efficiency: 160 lm/W
• Colour temperature: 5,700 K
• Colour rendering index: Ra above 70
• Solar panel: monocrystalline
• Solar panel efficiency: 25%
• Solar panel power: 30 W
• Battery: LiFePO₄
• Battery capacity: 256 Wh
• Indicative charging time: 11.5 hours

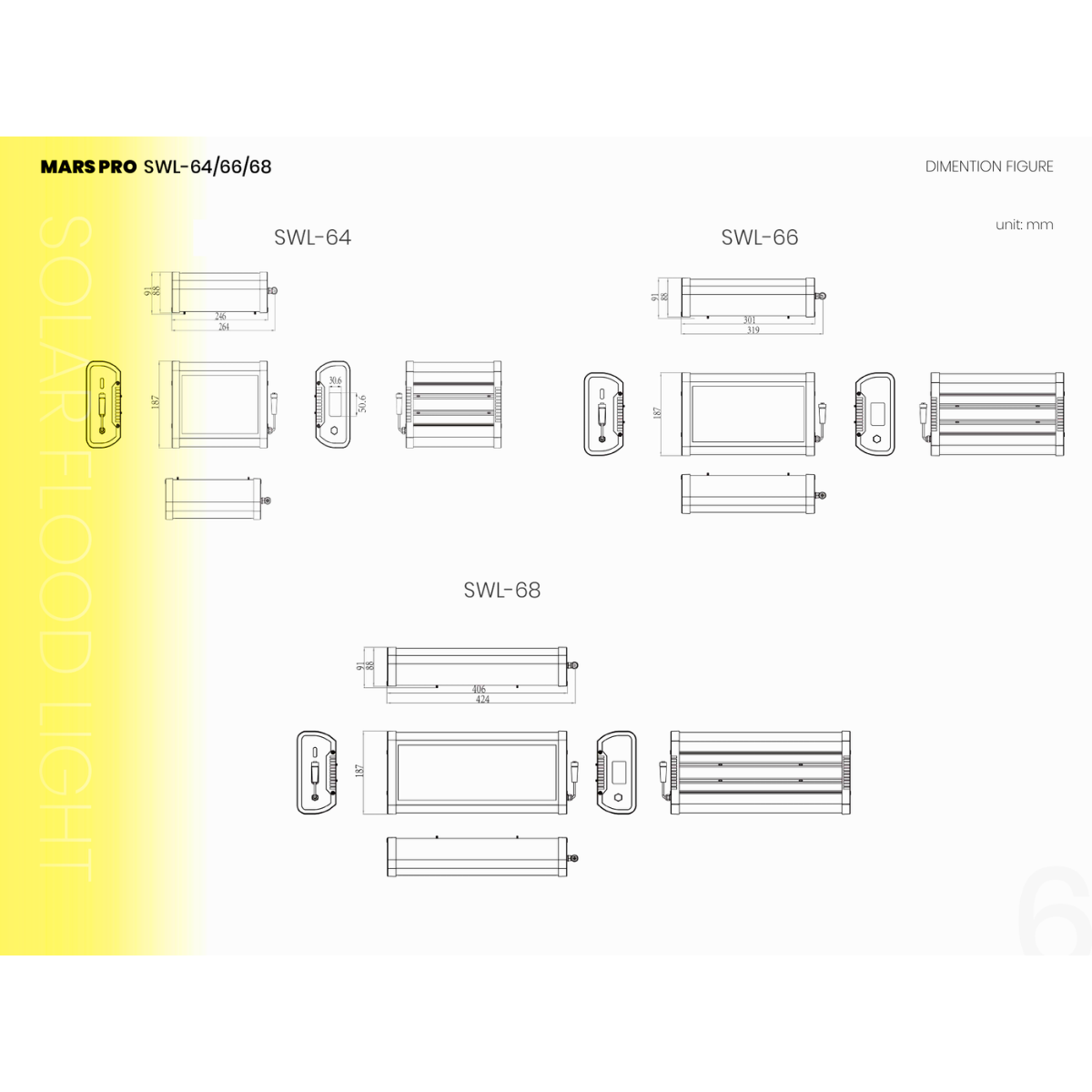

• Floodlight dimensions: 264 × 187 × 91 mm

MARS PRO SWL-66

• Light output: 6,000 lumens
• LED power: 37 W
• Light source: 66 OSRAM 3030 LEDs
• Luminous efficiency: 160 lm/W
• Colour temperature: 5,700 K
• Colour rendering index: Ra above 70
• Solar panel: monocrystalline
• Solar panel efficiency: 25%
• Solar panel power: 47 W
• Battery: LiFePO₄
• Battery capacity: 384 Wh
• Indicative charging time: 11.5 hours
• Floodlight dimensions: 319 × 187 × 91 mm

MARS PRO SWL-68

• Light output: 8,000 lumens
• LED power: 50 W
• Light source: 92 OSRAM 3030 LEDs
• Luminous efficiency: 160 lm/W
• Colour temperature: 5,700 K
• Colour rendering index: Ra above 70
• Solar panel: monocrystalline
• Solar panel efficiency: 25%
• Solar panel power: 60 W
• Battery: LiFePO₄
• Battery capacity: 512 Wh
• Indicative charging time: 11.5 hours
• Floodlight dimensions: 424 × 187 × 91 mm

COMMON SPECIFICATIONS

• Lighting modes: 100%, 75% or 50% until dawn
• Intelligent technologies: ALS, TCS and BMS
• Protection rating: IP66
• Impact resistance: IK08
• Material: aluminium
• Operating temperature: –20°C to +60°C
• Remote-control timer: 4, 5 or 6 hours, depending on configuration
• LED battery level indicator

WHICH MODEL SHOULD YOU CHOOSE?

MARS PRO SWL-64 – 4,000 lumens

Recommended for building entrances, façades, courtyards, workshops, small storage areas, private access points and medium-sized billboards.

MARS PRO SWL-66 – 6,000 lumens

A versatile solution for car parks, commercial buildings, loading areas, agricultural facilities and medium-sized professional spaces.

MARS PRO SWL-68 – 8,000 lumens

The most powerful model in the range, designed for large façades, logistics platforms, warehouses, industrial sites and extensive areas requiring sustained illumination.

LIPTENA SOLAR ENERGY SUPPORT

LIPTENA SOLAR ENERGY assists professionals in selecting the appropriate power level, number of floodlights and installation layout according to the configuration of the site.

Our assessment may take into account:

• The area to be illuminated
• The installation height
• The required lighting level
• The orientation and solar exposure
• Climatic constraints
• The daily operating duration
• Safety and circulation requirements

Contact LIPTENA SOLAR ENERGY for a personalised recommendation, a project assessment or a quotation request.

MARS PRO: the power of professional solar lighting, with no cables, no grid connection and no electricity consumption related to its operation.
